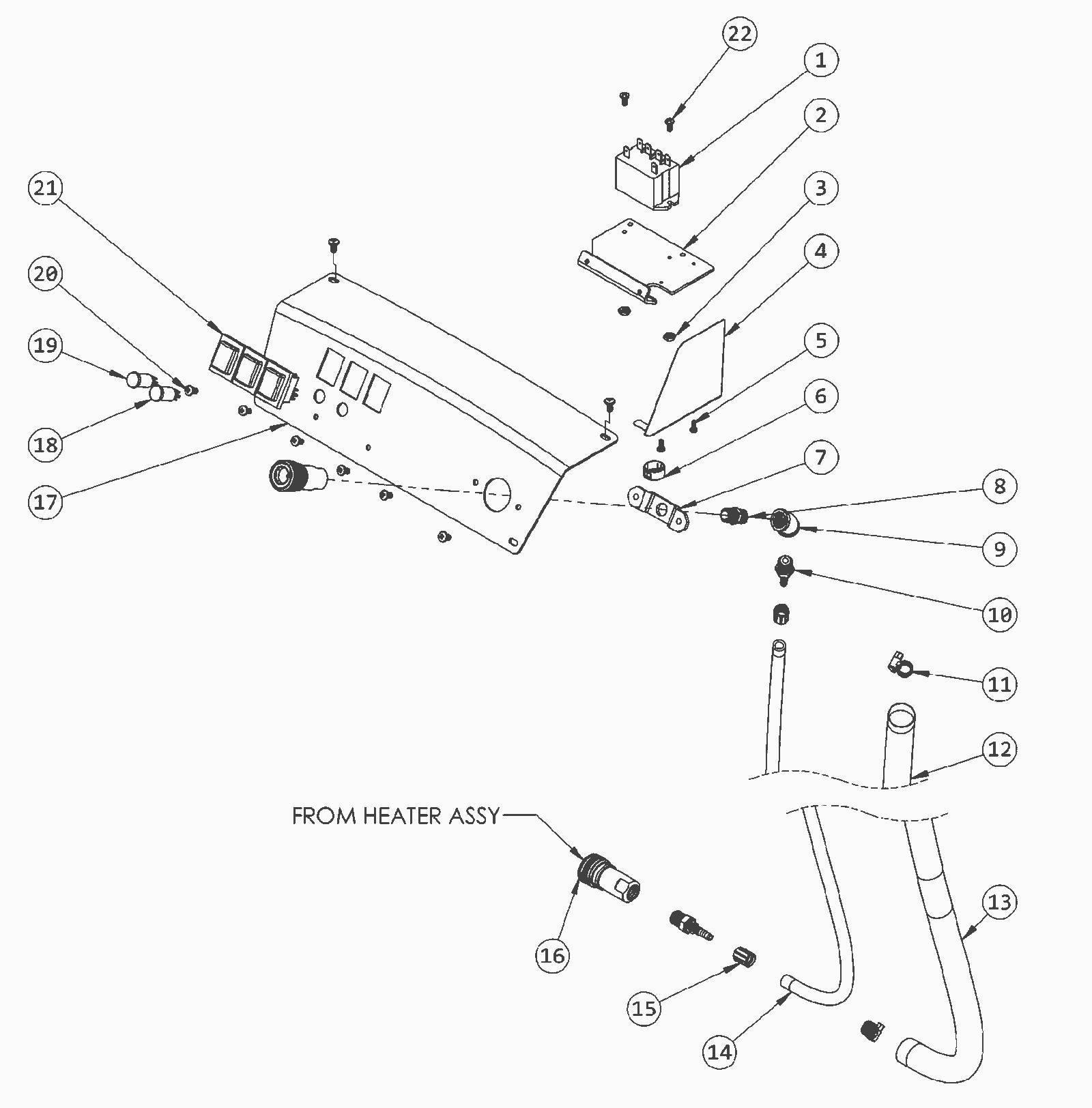

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
216-0017
|
Heavy duty relay |
1 |
|
|
2 |
190-1892
|
Bracket |
1 |
|
|
3 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
4 |
190-1893
|
Guard |
1 |
|
|
5 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
6 |
190-1894
|
Grommet |
1 |
|
|
7 |
190-1895
|
Bracket |
1 |
|
|
8 |
216-0021
|
Nipple 1/4 x 1/4 hex |
1 |
|
|
9 |
190-1896
|
Elbow fitting |
1 |
|
|
10 |
190-9332
|
Fitting 1/4 x 1/4 inch steel |
2 |
|
|
11 |
216-0075
|
Hose clamp |
2 |
|
|
12 |
190-1897
|
Heat shrink |
1 |
|
|
13 |
190-1897
|
Heat shrink |
1 |
|
|
14 |
190-1875
|
Solution hose |
48 inch |
|
|
15 |
190-1876
|
Hose ferrule |
2 |
|
|
16 |
216-0019
|
Quick disconnect valve |
2 |
|
|
17 |
190-1898
|
Control panel |
1 |
|
|
18 |
190-0413
|
Indicator light (green) |
1 |
|
|
19 |
190-0403
|
Neon light with lens |
1 |
|
|
20 |
190-1833
|
Screw 10-24 x 3/8 |
8 |
|
|
21 |
190-1800
|
On/off switch |
3 |
|
|
22 |
999-0452
|
Screw 8-32 x 3/8 pan head phillips zinc plated |
2 |
|
|
