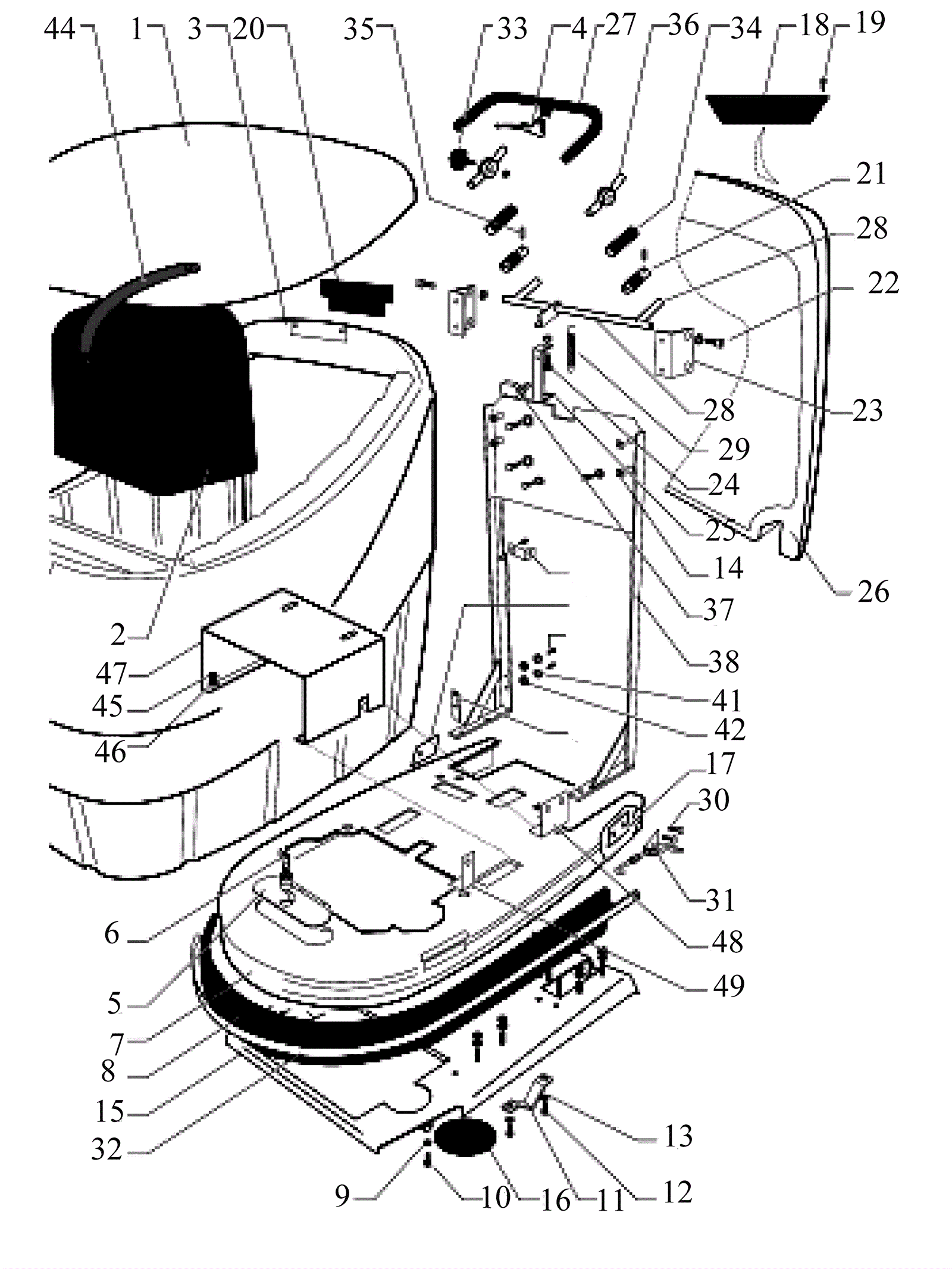

PREDATOR PAS20DX Handle and Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0711 Cover $748.01 1 usually ships 14-18 days
2 190-0712 Motor $127.89 1 usually ships 14-18 days
3 190-0713 Chest $1,450.16 1 usually ships 14-18 days
4 190-0714 Brake lever (OBSOLETE) $38.91 1 usually ships 14-18 days
5 190-0716 Cover $41.14 1 usually ships 14-18 days
6 190-0717 Shroud key $64.89 1 usually ships 14-18 days
7 190-0718 Chest Call for price 1 usually ships 14-18 days
8 190-0480 Splash guard $192.49 1 usually ships 14-18 days
9 190-0719 Washer Call for price 2 usually ships 14-18 days
10 190-0720 Screw Call for price 2 usually ships 14-18 days
11 190-0721 Yoke Call for price 1 usually ships 14-18 days
12 190-0484 Screw $18.69 2 usually ships 1-5 days
13 190-0813 Washer $5.50 2 usually ships 14-18 days
14 190-0722 Nut $8.50 1 usually ships 14-18 days
15 190-0723 Frame Call for price 1 usually ships 14-18 days
16 190-0424 Buffer wheel $37.39 1 usually ships 14-18 days
17 190-0724 Plate Call for price 1 usually ships 14-18 days
18 190-0725 Control panel $147.39 1 usually ships 14-18 days
19 190-0398 Screw $16.49 1 usually ships 1-5 days
20 190-0726 Hinge $83.59 1 usually ships 14-18 days
21 190-0479 Bellows $20.89 1 usually ships 1-5 days
22 190-0484 Screw $18.69 2 usually ships 1-5 days
23 190-0727 Bracket Call for price 1 usually ships 14-18 days
24 190-0728 Screw Call for price 1 usually ships 14-18 days
25 190-0729 Support Call for price 1 usually ships 14-18 days
26 190-0730 Panel Call for price 1 usually ships 14-18 days
27 190-0731 Handle $133.09 1 usually ships 14-18 days
28 190-0732 Lever $168.80 1 usually ships 14-18 days
29 190-0733 Spring $18.69 1 usually ships 14-18 days
30 190-0734 Screw $2.29 2 usually ships 14-18 days
31 190-0212 Hook and latch assembly $60.49 1 usually ships 14-18 days
32 190-0481 Splash guard band $106.69 1 usually ships 14-18 days
33 190-0735 Handle knob $32.99 1 usually ships 14-18 days
34 190-0736 Handle $54.99 1 usually ships 14-18 days
35 190-0737 Dowel Call for price 1 usually ships 14-18 days
36 190-0738 Coupling with hole $87.99 1 usually ships 14-18 days
37 190-0739 Micro switch $86.89 1 usually ships 14-18 days
38 190-0740 Panel Call for price 1 usually ships 14-18 days
39 190-0741 Brush bracket $34.24 2 usually ships 14-18 days
40 190-0742 Screw Call for price 2 usually ships 14-18 days
41 190-0707 Washer $1.65 2 usually ships 14-18 days
42 190-0744 Lock washer $4.30 2 usually ships 14-18 days
43 190-0745 Plate $5.15 2 usually ships 14-18 days
44 190-0746 Rubber cover $60.86 1 usually ships 14-18 days
45 190-0814 Nut $6.59 2 usually ships 14-18 days
46 190-0813 Washer $5.50 2 usually ships 14-18 days
47 190-0747 Support Call for price 2 usually ships 14-18 days
48 190-0748 Plate Call for price 2 usually ships 14-18 days
49 190-0749 Plate $7.78 2 usually ships 14-18 days
50 190-0750 Plate Call for price 2 usually ships 14-18 days
