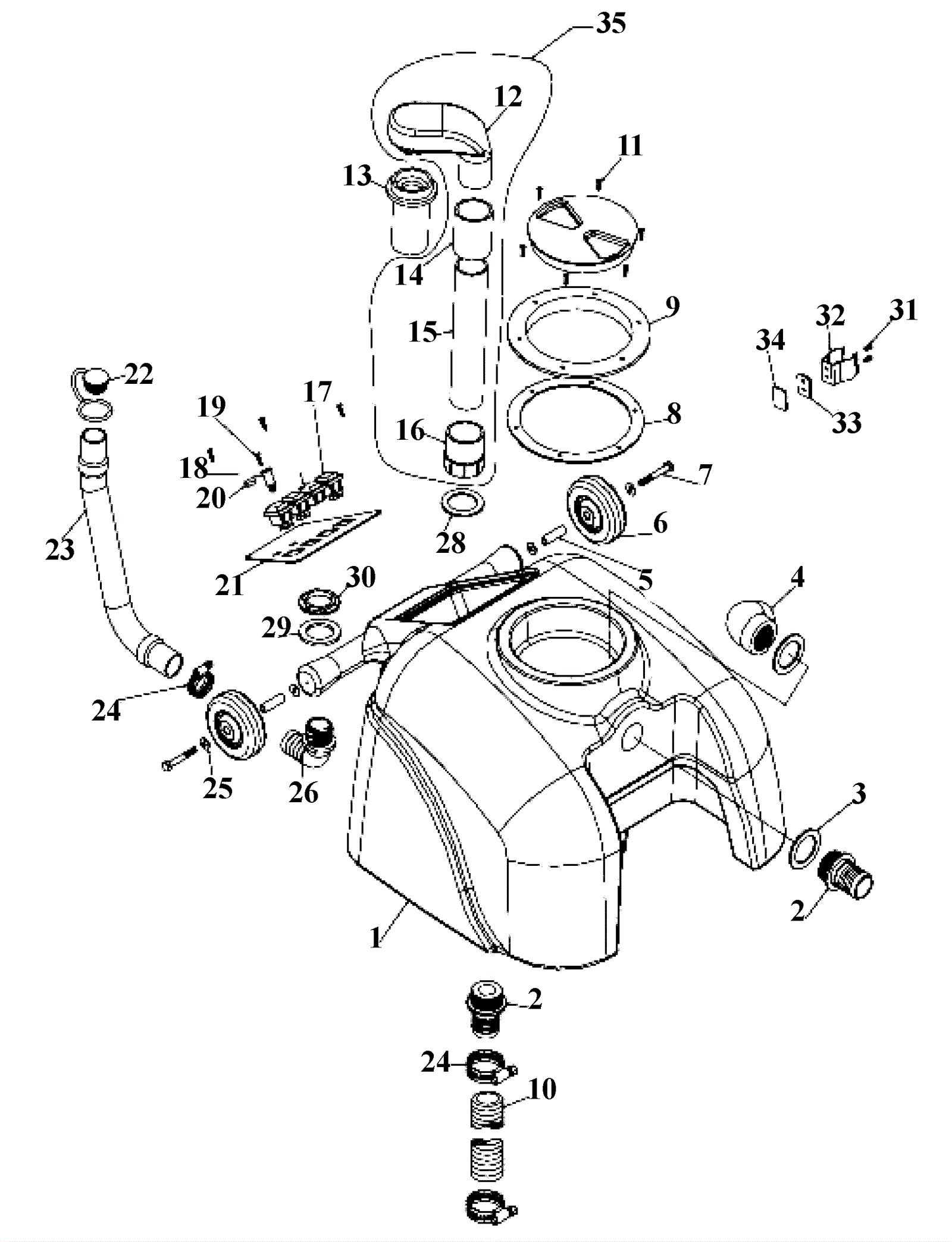

PFX 1385 Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 190-9004 Recovery tank housing 1 usually ships 12-14 days
2 216-0068 Hose barb 2 usually ships 12-14 days
3 189-2486 Vac inlet gasket 2 usually ships 12-14 days
4 189-2496 PVC drain elbow 1 usually ships 13-20 days
5 216-0147 Spacer 2 usually ships 12-14 days
6 216-0341 Wheel (black) 2 usually ships 12-14 days
7 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated 2 usually ships 11-14 days
8 190-0681 Lid gasket 1 usually ships 12-14 days
9 190-9018 6 inch clear tank lid 1 usually ships 12-14 days
10 216-0151 1 1/2 inch hose (sold by the inch) 1 usually ships 1-5 days
11 190-9027 Screw #8 x 3/4 flat head phillips t/s 6 usually ships 12-14 days
12 190-0684 Vacuum tube 1 usually ships 12-14 days
13 216-0325 Float cage with ball 1 usually ships 12-14 days
14 216-0333 Coupling 1 usually ships 12-14 days
15 190-9020 PVC pipe 1 usually ships 12-14 days
16 216-0069 Coupler 1 usually ships 12-14 days
17 189-4283 Switch rocker on/off 3 usually ships 16-24 days
18 190-0403 Neon light with lens 1 usually ships 12-14 days
19 216-0178 Screw #8 x 5/8 pan head phillips 4 usually ships 12-14 days
20 190-0413 Indicator light (green) 1 usually ships 12-14 days
21 190-9022 Switch panel (heated) 1 usually ships 12-14 days
22 190-0215 Drain hose plug 1 usually ships 12-14 days
23 216-0149 Drain hose 1 usually ships 12-14 days
24 190-0873 Clamp 3 usually ships 12-14 days
25 999-0016 Washer 1/4 flat plain finish 4 usually ships 11-14 days
26 190-9030 Nylon elbow 1 usually ships 12-14 days
27 189-4283 Switch rocker on/off 1 usually ships 16-24 days
28 189-2486 Vac inlet gasket 1 usually ships 12-14 days
29 190-9024 Gasket 1 1/4 fitting 1 usually ships 12-14 days
30 190-9031 Nut 1 1/4 lock 1 usually ships 12-14 days
31 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 1 usually ships 11-14 days
32 216-0128 Spring clip 1 usually ships 12-14 days
33 190-9025 Nut plate clip 1 usually ships 12-14 days
34 190-9026 Gasket nut plate 1 usually ships 12-14 days
35 190-0977 Vacuum tube assembly 1 usually ships 12-14 days
