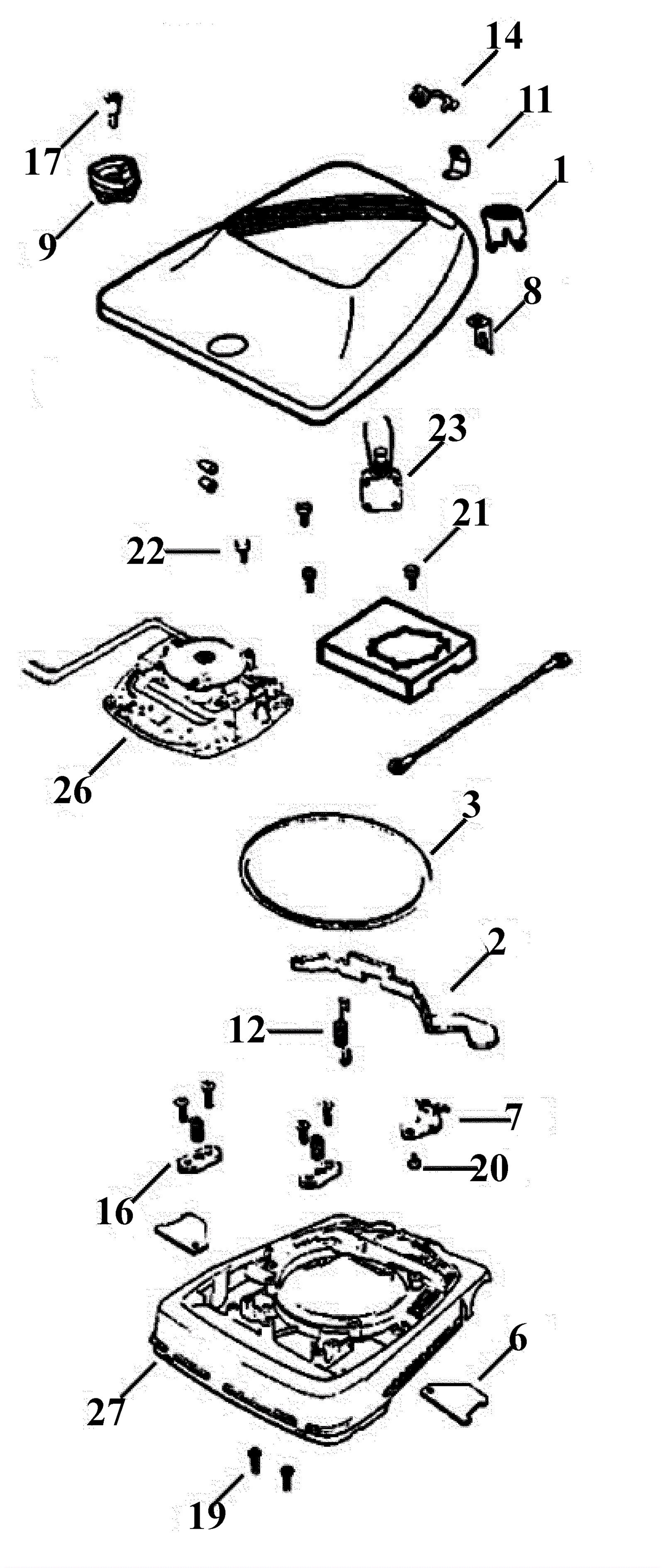

PF70VC Base and Hood Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-1152 Switch button $6.63 1 usually ships 10-27 days
2 993-1710 PEDAL, FOOT $6.90 1 usually ships 1-5 days
3 993-0675 Gasket $1.50 1 usually ships 1-3 days
6 993-1727 COVER, WHEEL $3.26 1 usually ships 1-5 days
7 993-0821 ADAPTER RETAINER SPRING $2.40 1 usually ships 1-5 days
8 190-1153 Switch clip $7.85 1 usually ships 10-27 days
9 993-0664 Knob $9.30 1 usually ships 1-5 days
N/S N/A Not available Call for price 1 (separator assembly) usually ships 3-26 days
11 190-9175 Bracket bushing $17.86 1 usually ships 10-27 days
12 993-0818 FOOT PEDAL SPRING $0.90 1 usually ships 1-5 days
14 182-0017 Strain relief bushing $2.08 1 ships same day
16 190-1168 Front axle screw and clamp assembly $5.50 1 usually ships 10-27 days
17 N/A Not available Call for price 1 (shoulder screw) usually ships 3-26 days
19 190-1156 Screw $1.35 2 usually ships 10-27 days
20 190-1154 Rear axle screw $1.30 1 usually ships 10-27 days
21 190-1150 Screw $1.35 1 usually ships 10-27 days
22 190-1151 Screw $1.35 1 usually ships 10-27 days
23 190-1087 On/off switch $15.39 1 usually ships 10-27 days
26 182-0009 120V vacuum motor assembly $69.67 1 ships same day
27 190-9174 Base assembly $184.68 1 usually ships 10-27 days
N/S 190-9203 Hood lens $9.75 1 usually ships 10-27 days
N/S 190-9204 Headlight $6.55 1 usually ships 10-27 days
N/S 190-9205 Replacement headlight $2.52 1 usually ships 10-27 days
N/S 190-9202 Hood assembly $63.31 1 usually ships 10-27 days
