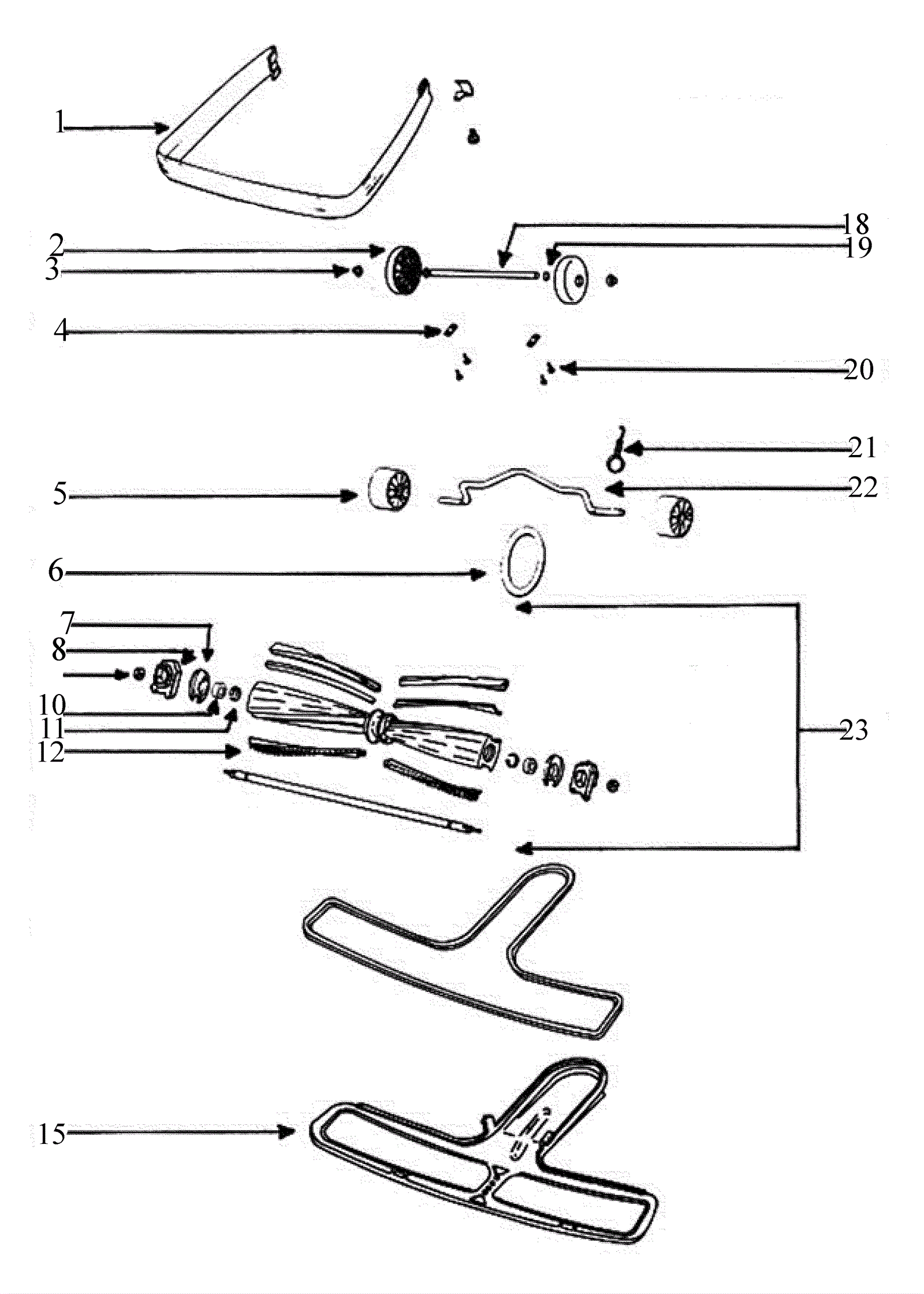

PF70DC Furniture Guard and Brush Roll Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9178 Furniture guard bumper $11.06 usually ships 15-28 days
2 190-9179 Wheel (rear) $5.70 usually ships 15-28 days
3 190-9180 Hub cap $1.35 usually ships 15-28 days
4 190-9181 Axle clamp $1.35 usually ships 15-28 days
5 993-1712 WHEEL, FRONT $3.10 usually ships 1-5 days
6a 190-9182 Vacuum belt (pkg of 2) $9.69 usually ships 15-28 days
6b 190-1146 Vacuum belt $5.10 ships same day
6c 190-9183 Replacement belt $1.35 usually ships 15-28 days
6d 991-0026 Brush roll belt rubber (black) $0.75 ships same day
7 190-9184 Felt washer $5.50 usually ships 15-28 days
8 190-9185 Disturbulator cap $4.98 usually ships 15-28 days
10 190-9186 Bearing and retainer assembly $18.65 usually ships 15-28 days
11 190-9187 Bearing retainer clip $1.46 usually ships 15-28 days
12a 190-9188 Brush strip (pkg of 2) $7.92 usually ships 15-28 days
12b 190-9189 Brush strip (pkg of 2) $5.35 usually ships 15-28 days
15 993-0706 BOTTOM PLATE $19.60 usually ships 1-5 days
18 190-9190 Wheel and axle assembly $14.66 usually ships 15-28 days
19 190-9191 Rear wheel washer $1.35 usually ships 15-28 days
20 190-1154 Rear axle screw $1.30 usually ships 15-28 days
21 190-9192 Axle spring $1.97 usually ships 15-28 days
22 190-1157 Front axle $12.20 usually ships 15-28 days
23 190-1086 Beater bar $54.21 usually ships 15-28 days
