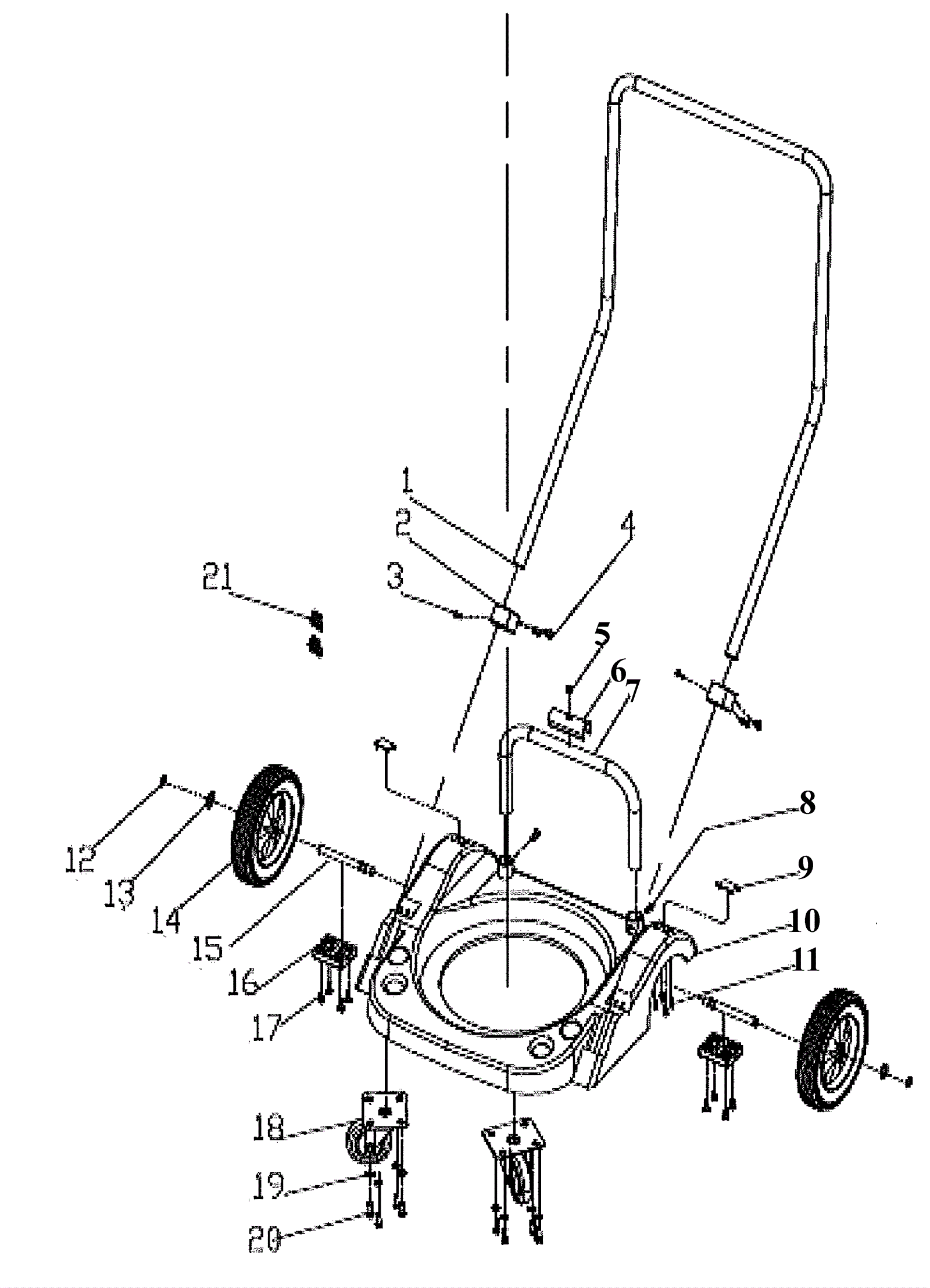

PF55 Dolly Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-1720 Trolley assembly Call for price 1 usually ships 15-28 days
2 190-1721 Handle Call for price 1 usually ships 15-28 days
3 190-1722 Holder Call for price 2 usually ships 15-28 days
4 190-9169 Screw M4 x 18mm $1.35 2 usually ships 15-28 days
5 190-9169 Screw M4 x 18mm $1.35 4 usually ships 15-28 days
6 183-4981 Screw M4 x 5mm Call for price 1 usually ships 15-28 days
7 183-9303 Holder $5.50 1 usually ships 15-28 days
8 190-9170 Screw M5 x 12mm $1.35 1 usually ships 15-28 days
9 190-9170 Screw M5 x 12mm $1.35 2 usually ships 15-28 days
10 183-4984 Cover Call for price 2 usually ships 15-28 days
11 190-1723 Trolley Call for price 1 usually ships 15-28 days
12 183-4986 Screw M4 x 12mm Call for price 8 usually ships 15-28 days
13 183-5094 C ring $1.30 2 usually ships 15-28 days
14 183-5091 Washer (OBSOLETE) Call for price 4 usually ships 15-28 days
15 190-1724 Rear wheel Call for price 2 usually ships 15-28 days
16 183-4990 Axle Call for price 2 usually ships 15-28 days
17 183-5095 Plate Call for price 2 usually ships 15-28 days
18 183-4992 Screw M5 x 50mm Call for price 8 usually ships 15-28 days
19 183-9306 Front caster $77.17 2 usually ships 15-28 days
20 183-4994 Washer Call for price 8 usually ships 15-28 days
21 183-4995 Screw M8 x 30mm Call for price 8 usually ships 15-28 days
N/S 183-4996 Fixer (OBSOLETE) Call for price 2 usually ships 15-28 days
