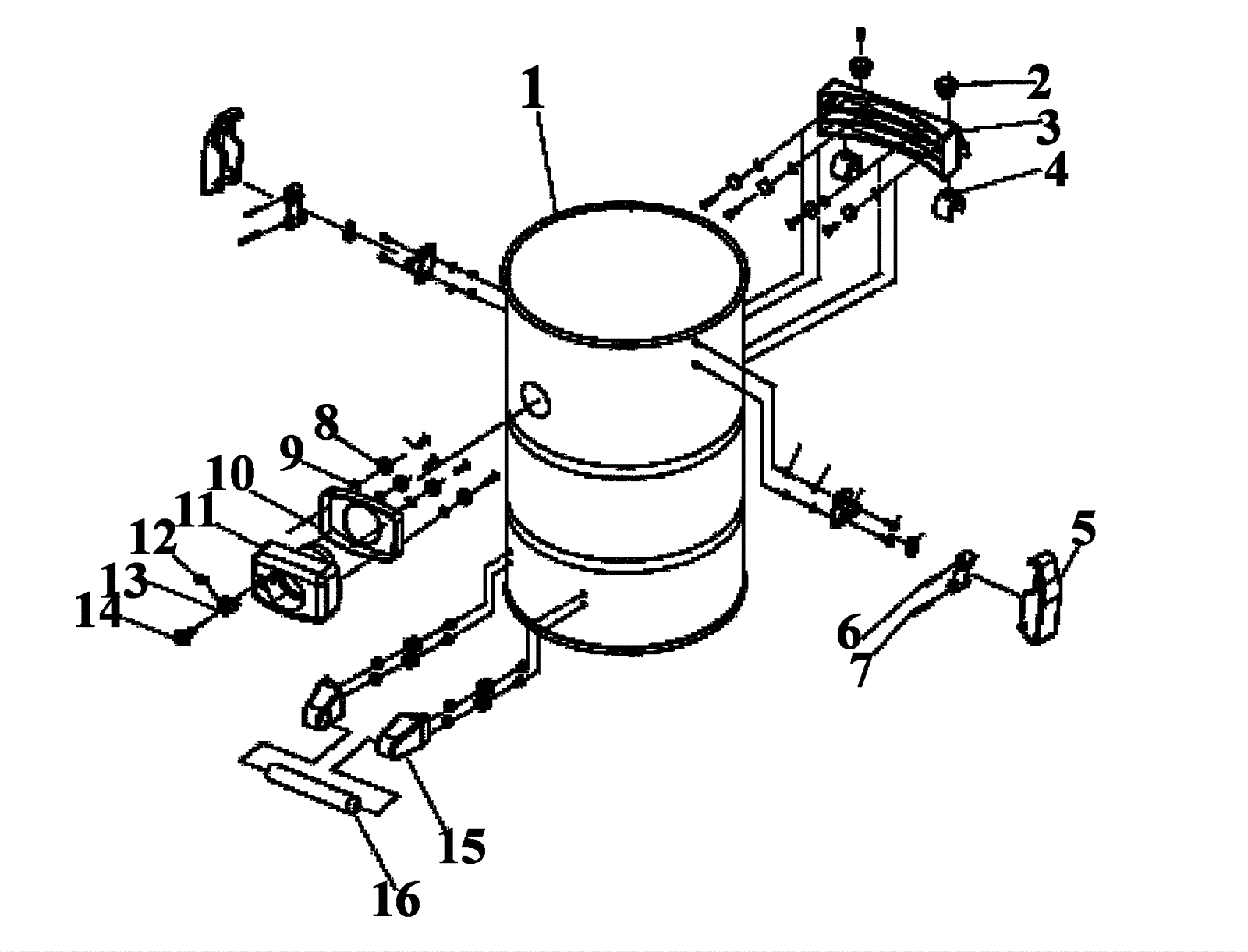

PF55 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9165 Tank assembly $361.11 1 usually ships 15-28 days
2 190-1059 Lock cover $1.35 2 usually ships 15-28 days
3 190-1058 Fixed plate $7.33 1 usually ships 15-28 days
4 190-1060 Lock button $3.39 2 usually ships 15-28 days
5 183-1371 Complete latch assembly $15.91 2 usually ships 15-28 days
6 190-9166 Short pin $1.35 2 usually ships 15-28 days
7 190-9167 Long pin $1.35 2 usually ships 15-28 days
8 190-1056 Holder $1.35 12 usually ships 15-28 days
9 190-1057 Rubber washer $1.35 12 usually ships 15-28 days
10 190-1061 Washer $8.14 1 usually ships 15-28 days
11 190-1063 Suction coupler $18.76 1 usually ships 15-28 days
12 190-1055 Spring $1.35 1 usually ships 15-28 days
13 190-1062 Button base $1.78 1 usually ships 15-28 days
14 190-1064 Button base $1.46 1 usually ships 15-28 days
15 190-9168 Holder $2.84 2 usually ships 15-28 days
16 190-1719 Handle Call for price 1 usually ships 15-28 days
