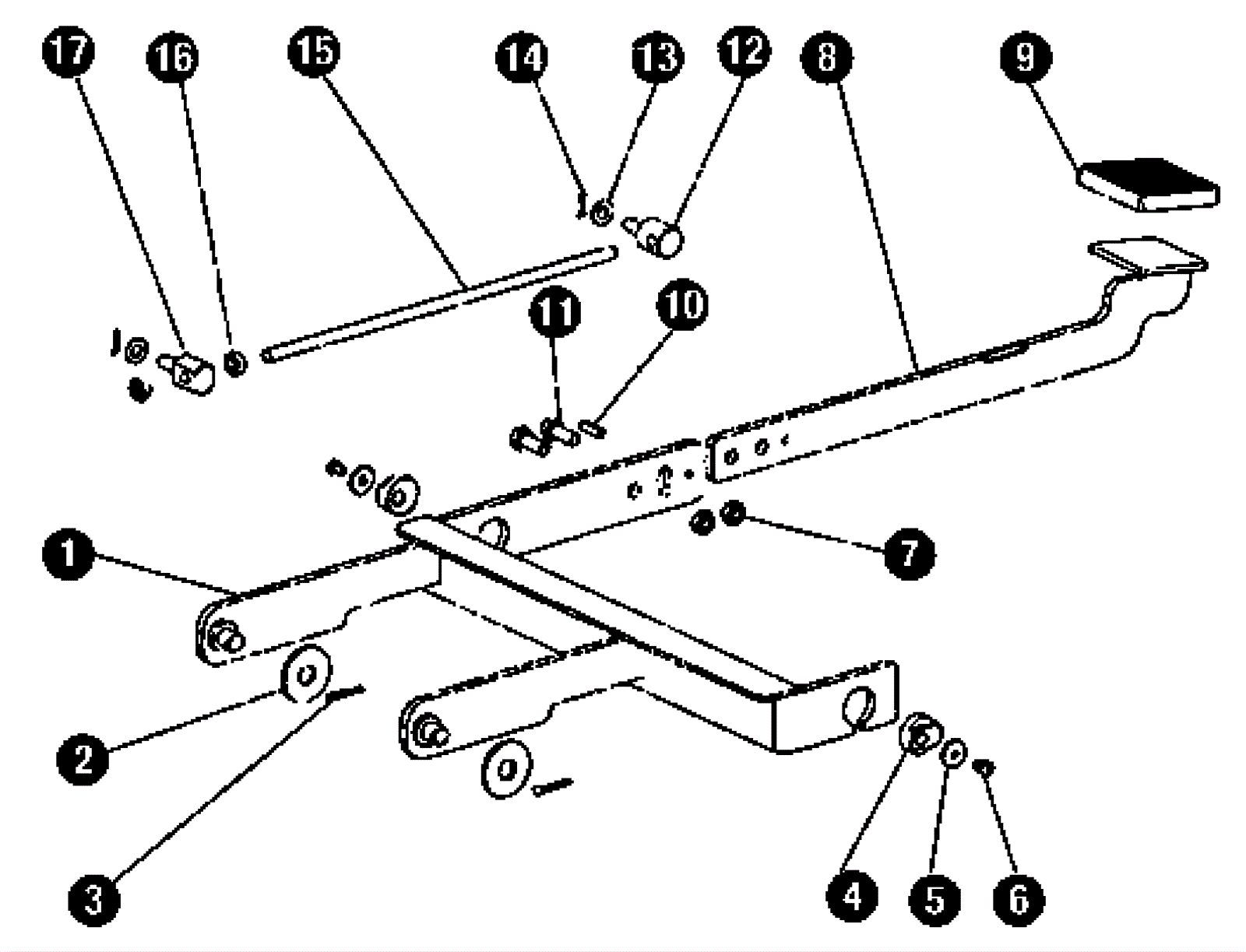

PREDATOR PAS17BA Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (lift) usually ships 3-26 days
2 N/A Not available Call for price 1 (washer) usually ships 3-26 days
3 N/A Not available Call for price 1 (pin) usually ships 3-26 days
4 N/A Not available Call for price 1 (eccentricity bushing) usually ships 3-26 days
5 N/A Not available Call for price 1 (washer) usually ships 3-26 days
6 N/A Not available Call for price 1 (screw) usually ships 3-26 days
7 N/A Not available Call for price 2 (nut) usually ships 3-26 days
8 190-9131 Pedal cover $4.05 1 usually ships 15-28 days
9 N/A Not available Call for price 1 (pedal) usually ships 3-26 days
10 N/A Not available Call for price 1 (spring clip) usually ships 3-26 days
11 190-9132 Bolts $2.95 2 usually ships 15-28 days
12 190-9133 Pin shaft $6.37 1 usually ships 15-28 days
13 190-9134 Washer $2.07 1 usually ships 15-28 days
14 190-9135 Cotter pin $3.72 1 usually ships 15-28 days
15 190-9136 Arm $6.40 1 usually ships 15-28 days
16 190-9137 Nut $19.05 1 usually ships 15-28 days
17 190-9138 Pin shaft $21.64 1 usually ships 15-28 days
