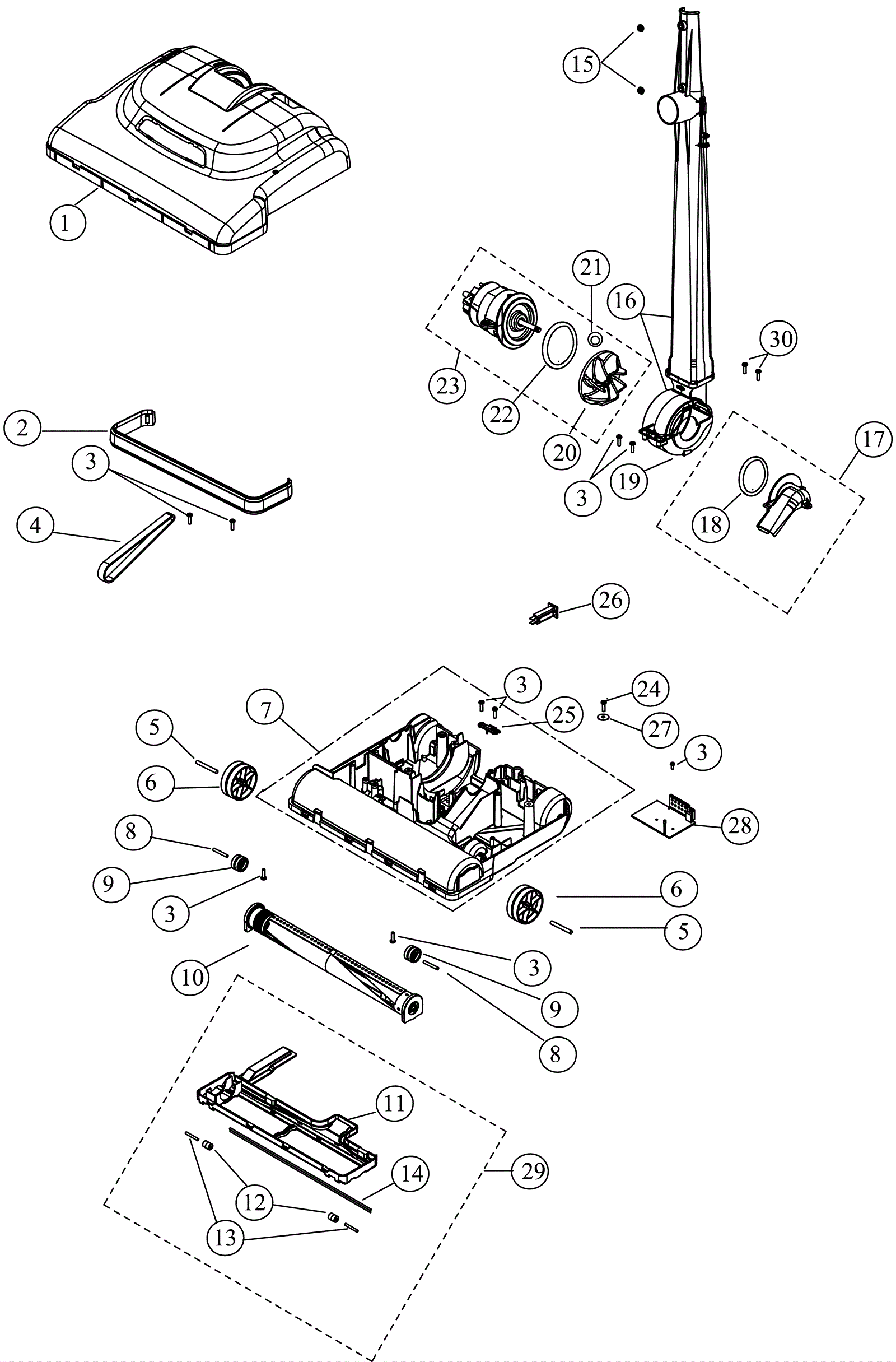

ZM-400 Nozzle Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0538 Nozzle housing assembly $27.49 usually ships 20-37 days
2 190-0539 Furniture guard $4.11 usually ships 20-37 days
3 190-9686 Screw #8-18 x 5/8 $1.30 usually ships 10-27 days
4 190-1092 Belt $1.98 ships same day
5 190-0540 Axle (OBSOLETE) $1.98 usually ships 20-37 days
6 190-0541 Rear wheel (OBSOLETE) $3.89 usually ships 20-37 days
7 190-0542 Base assembly $41.79 ships same day
8 190-0543 Axle $1.80 usually ships 20-37 days
9 N/A Not available Call for price (wheel) usually ships 3-26 days
10 190-0544 Wood agitator $35.19 usually ships 20-37 days
11 190-0545 Vacuum shoe $19.36 usually ships 20-37 days
12 190-0546 Wheel $1.30 ships same day
13 190-0547 Axle $1.30 usually ships 20-37 days
14 N/A Not available Call for price (basetray cover squeegee) usually ships 3-26 days
15 190-0517 Hex nut $1.30 usually ships 20-37 days
16 190-0518 Lower handle and fan housing assembly $29.69 usually ships 20-37 days
17 190-0519 Fan duct cover with seal assembly $5.50 usually ships 20-37 days
18 190-0552 Seal kit $9.89 usually ships 20-37 days
19 190-0521 Lower fan housing $3.10 usually ships 20-37 days
20 190-0522 Fan $6.59 usually ships 20-37 days
21 190-0532 Fan washer $1.30 usually ships 1-5 days
23 190-0524 Vacuum motor assembly $113.33 usually ships 20-37 days
24 190-0161 Screw for inlet tube $1.30 usually ships 20-37 days
25 190-0548 Upright stop $1.30 usually ships 20-37 days
26 190-0549 Circuit breaker $12.20 usually ships 20-37 days
27 190-0550 Strain relief washer $1.30 usually ships 20-37 days
28 N/A Not available Call for price (PC board) usually ships 3-26 days
29 N/A Not available Call for price (basetray cover assembly) usually ships 3-26 days
30 190-0533 Screw $1.30 usually ships 20-37 days
N/S 190-0537 E-clip for motor shaft $1.30 usually ships 20-37 days
N/S 190-0551 Squeegee and baseplate upgrade kit $14.29 usually ships 20-37 days
N/S 190-0552 Seal kit $9.89 (includes 18 and 22) usually ships 20-37 days
