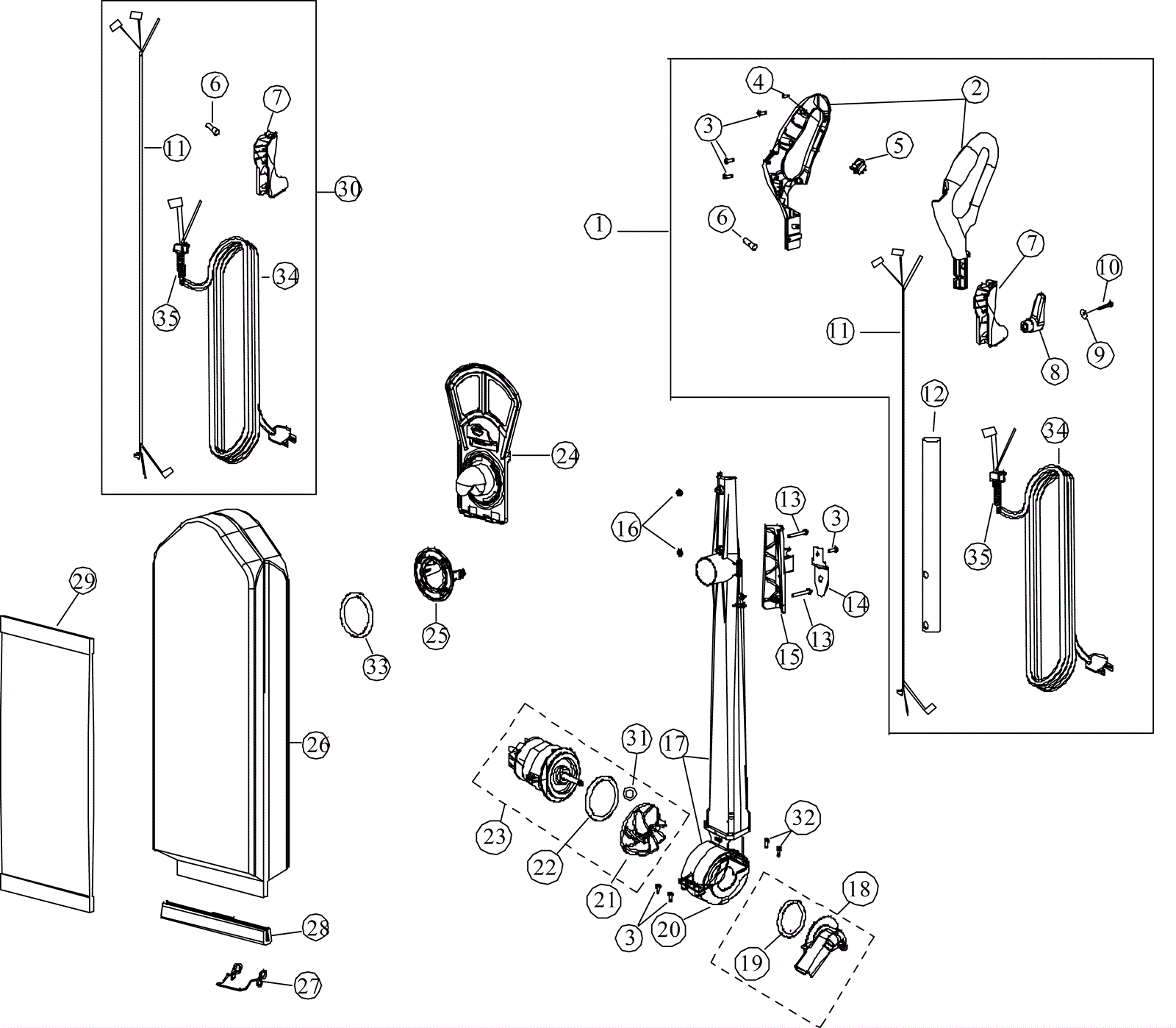

ZM-400 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0504 Handle assembly $35.37 usually ships 1-5 days
2 N/A Not available Call for price (handle assembly) usually ships 3-26 days
3 190-0507 Screw 8 x 7/16 $1.30 usually ships 1-5 days
4 190-0507 Screw 8 x 7/16 $1.30 usually ships 1-5 days
5 190-0508 Main switch handle $2.46 usually ships 14-19 days
6 190-0141 Wire connector $1.30 usually ships 14-19 days
7 190-0509 Handle back $4.55 usually ships 14-19 days
8 190-0510 Upper cord hook $8.79 usually ships 14-19 days
9 190-0511 Upper cord hook washer $1.30 usually ships 1-5 days
10 190-0505 Upper cord hook screw $1.30 usually ships 14-19 days
11 190-0512 Handle cord harness $15.39 usually ships 14-19 days
12 190-0513 Handle tube $9.76 usually ships 1-5 days
13 190-0514 Screw 10-32 x 1.625 $1.30 usually ships 14-19 days
14 190-0515 Steel cord hook $4.18 usually ships 14-19 days
15 190-0516 Handle tube bracket $3.72 usually ships 14-19 days
16 190-0517 Hex nut $1.30 usually ships 14-19 days
17 190-0518 Lower handle and fan housing assembly $29.69 usually ships 14-19 days
18 190-0519 Fan duct cover with seal assembly $5.50 usually ships 14-19 days
19 190-0552 Seal kit $9.89 usually ships 14-19 days
20 190-0521 Lower fan housing $3.10 usually ships 14-19 days
21 190-0522 Fan $6.59 usually ships 14-19 days
23 190-0524 Vacuum motor assembly $113.33 usually ships 14-19 days
24 190-0525 Bag holder collar $25.04 usually ships 1-5 days
25 190-0526 Bag collar ring $25.04 usually ships 1-5 days
26 N/A Not available Call for price (cloth bag) usually ships 3-26 days
27 190-0527 Lower bag spring $1.30 usually ships 14-19 days
28 190-0528 Lower bag clip $3.89 usually ships 15-28 days
29a 190-0529 Hepa vacuum bags (pkg of 6) $30.79 usually ships 14-19 days
29b 190-0530 Paper vacuum bags (pkg of 6) $20.89 usually ships 14-19 days
29c 991-6034 Paper vacuum bags (pkg of 10) $17.98 1 (NON-OEM) ships same day
30 190-0531 Power cord upgrade kit $86.81 usually ships 1-5 days
31 190-0532 Fan washer $1.30 usually ships 1-5 days
32 190-0533 Screw $1.30 usually ships 14-19 days
33 190-0534 Bag collar seal $3.82 usually ships 1-5 days
34 190-0535 Power cord $57.19 usually ships 14-19 days
35 190-0536 Strain relief $1.30 usually ships 14-19 days
N/S 190-0537 E-clip for motor shaft $1.30 usually ships 14-19 days
N/S 190-0552 Seal kit $9.89 (includes 19 and 22) usually ships 14-19 days
