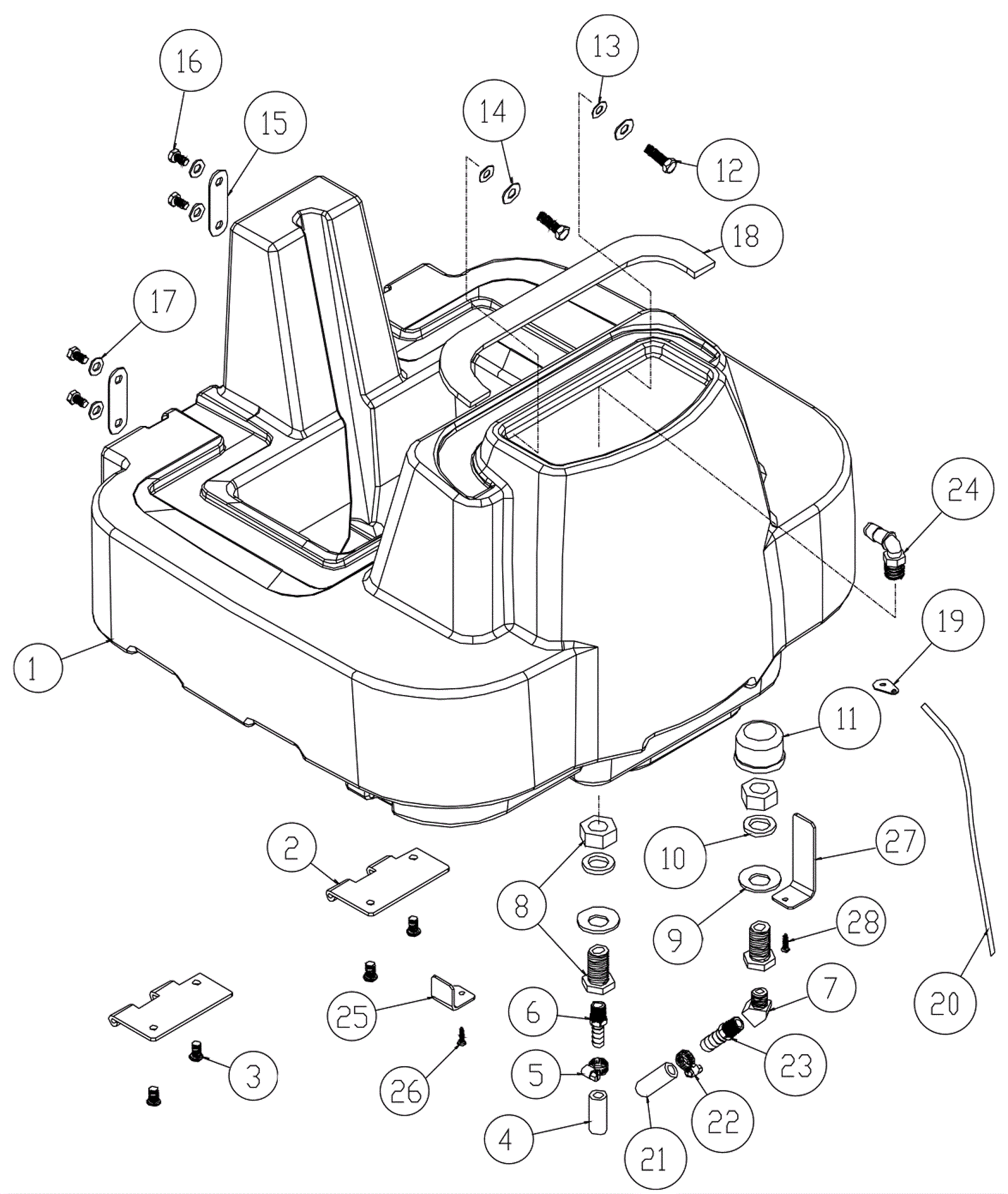

PFX 1380 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 190-0951 Solution tank housing $378.51 1 usually ships 10-27 days
1b 190-9320 Solution tank housing (gray) $325.68 1 (for PFX 1350B only) usually ships 10-27 days
2 216-0112 Hinge $13.19 2 usually ships 1-5 days
3 190-0978 Screw 1/4-20 x 1/2 phillips $1.30 4 usually ships 10-27 days
4a 216-0245 3/8 inch hose (sold by the inch) $1.30 1 usually ships 10-27 days
5a 216-0137 Hose clamp $3.37 1 (use 2 for 200 psi pump) usually ships 10-27 days
5b 190-0952 Hose clamp $3.77 1 (PFX 1385 series) usually ships 10-27 days
6a 190-0907 Hose fitting $13.19 1 (use 2 for 200 psi pump) usually ships 10-27 days
6b 190-1096 Hose barb $4.53 1 (400 psi pump) usually ships 10-27 days
7 189-5324 45 degree elbow $7.59 1 usually ships 11-24 days
8a 190-9321 3/4 inch brass bulkhead fitting $151.68 2 (only use 1 for 100 psi pump) usually ships 10-27 days
8b 189-4275 Fitting brass bulkhead 3/4 in $28.59 2 (PFX 1385 series) usually ships 10-27 days
9 190-0887 Washer $2.68 2 (only use 1 for 100 psi pump) usually ships 10-27 days
10 189-4284 Gasket bulkhead (OBSOLETE) $0.99 2 (only use 1 for 100 psi pump) usually ships 11-24 days
11 190-0888 Pump protection filter $6.59 1 usually ships 10-27 days
12a 190-9322 Bolt 5/16-18 x 3/4 inch hex head $1.01 2 (PFX 1380 series) usually ships 10-27 days
12b 190-1011 Bolt 5/16-18 self tapping $1.30 2 (PFX 1385 series) usually ships 10-27 days
14 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
15 190-0954 Tie down plate $1.35 2 usually ships 10-27 days
16 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 4 ships same day
17 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
18 190-0955 Gasket foam strip $3.77 1 usually ships 10-27 days
19 216-0107 End loop $1.30 1 usually ships 1-5 days
20 216-0156 Rope (sold by the inch) $1.30 1 usually ships 1-5 days
21a 216-0071 1/2 inch wire reinforced hose (sold by the inch) $0.77 1 (400 psi pump) usually ships 10-27 days
21b 216-0245 3/8 inch hose (sold by the inch) $1.30 1 (200 psi pump) usually ships 10-27 days
21c 216-0151 1 1/2 inch hose (sold by the inch) $0.77 1 (PFX 1385 series) usually ships 1-5 days
22a 216-0075 Hose clamp $3.74 1 (for 400 psi pump only) usually ships 1-5 days
22b 189-4290 2 1/4 inch hose clamp stainless steel $5.50 1 (PFX 1385 series) usually ships 1-5 days
23 190-1096 Hose barb $4.53 1 (for 400 psi pump only) usually ships 10-27 days
24 190-9003 90 degree fitting $2.08 1 usually ships 10-27 days
25 190-9323 Long bracket latch $7.72 1 usually ships 10-27 days
26 216-0124 Screw #10 x 1 pan head phillips $1.30 1 usually ships 10-27 days
27 190-9324 Short bracket latch $7.21 1 usually ships 10-27 days
28 216-0124 Screw #10 x 1 pan head phillips $1.30 1 usually ships 10-27 days
N/S 216-0331 Screw $1.30 1 usually ships 10-27 days
N/S 216-0103 Screw #10 x 5/8mm pan head $1.30 1 usually ships 10-27 days
