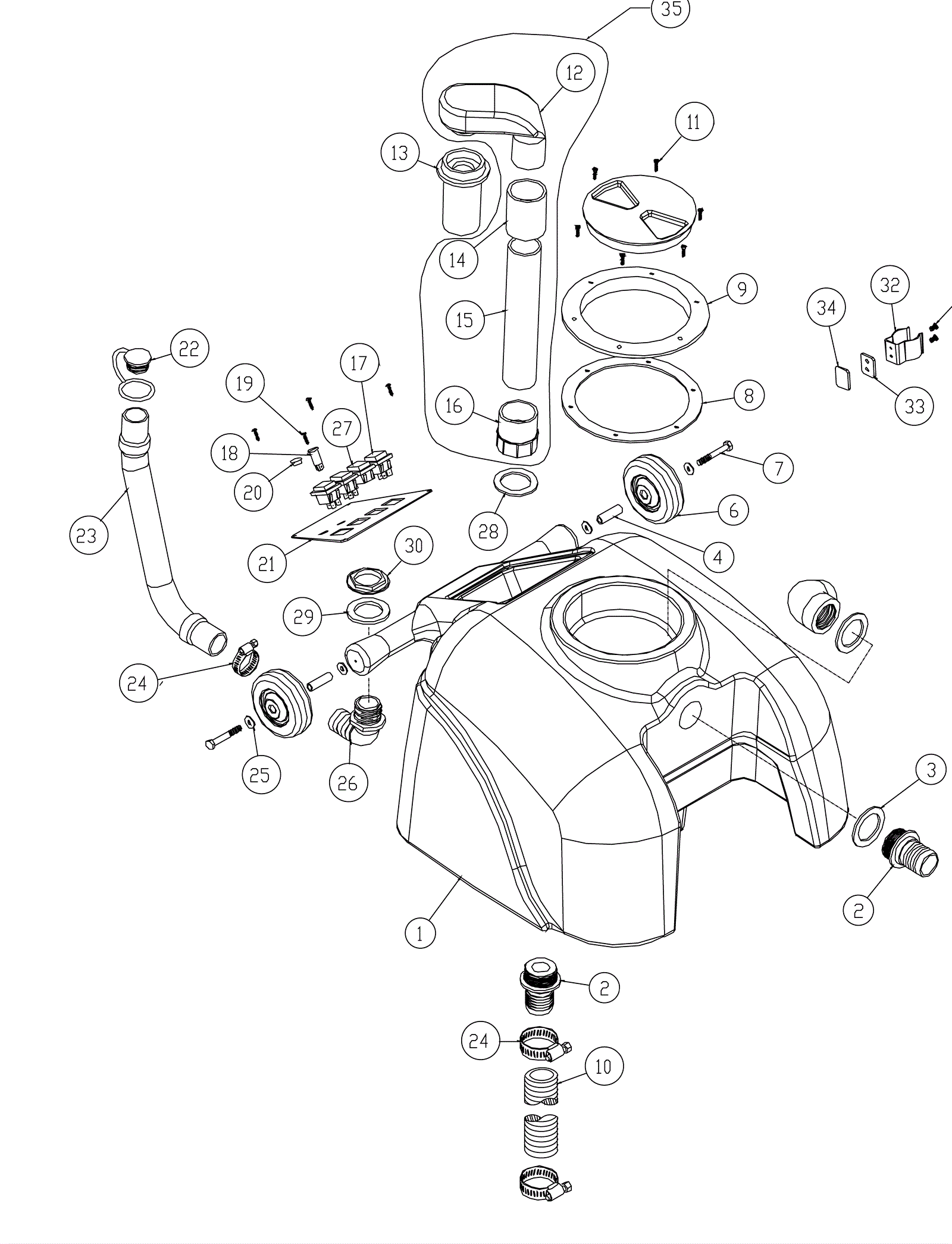

PFX 1385 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 190-0679 Recovery tank housing $426.94 1 usually ships 10-27 days
1b 190-9317 Recovery tank housing (gray) $354.79 1 usually ships 10-27 days
1c 190-9318 Heavy recovery tank housing $405.55 1 (230V models) usually ships 10-27 days
2 190-9319 Hose barb bulkhead Call for price 2 usually ships 10-27 days
3 216-0068 Hose barb $2.77 2 usually ships 10-27 days
4 216-0147 Spacer $8.79 3 usually ships 10-27 days
6 216-0341 Wheel (black) $13.19 2 usually ships 10-27 days
7 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
8 190-0681 Lid gasket $10.99 1 usually ships 10-27 days
9 190-9018 6 inch clear tank lid $36.21 1 ships same day
10 216-0151 1 1/2 inch hose (sold by the inch) $0.77 1 usually ships 1-5 days
11 190-9027 Screw #8 x 3/4 flat head phillips t/s $4.77 6 usually ships 10-27 days
12 190-0684 Vacuum tube $22.39 1 usually ships 10-27 days
13 216-0325 Float cage with ball $57.19 1 usually ships 10-27 days
14 216-0333 Coupling $5.26 1 usually ships 10-27 days
15 190-9020 PVC pipe $8.43 1 usually ships 10-27 days
16 216-0069 Coupler $7.69 1 usually ships 10-27 days
17 189-4283 Switch rocker on/off $8.79 3 (remove in models without heater and models with only one vacuum motor) ships same day
18 190-0403 Neon light with lens $15.39 1 (for models with heater) usually ships 10-27 days
19 216-0178 Screw #8 x 5/8 pan head phillips $1.30 4 usually ships 10-27 days
20a 190-0413 Indicator light (green) $16.49 1 (for models with heater) usually ships 10-27 days
20b 216-0199 1/2 inch plug $1.30 1 (PFX1350-100H+ and 230v models) usually ships 1-5 days
21a 190-9021 Switch panel (non-heated) $18.41 1 usually ships 10-27 days
21b 190-9022 Switch panel (heated) $29.93 1 (for models with heater) usually ships 10-27 days
22 190-0215 Drain hose plug $9.98 1 ships same day
23 216-0149 Drain hose $8.79 1 ships same day
24 190-0873 Clamp $8.79 3 usually ships 10-27 days
25 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
26 190-9030 Nylon elbow $13.19 1 usually ships 10-27 days
27 216-0177 Hole plug $4.91 1 (PFX1350-CN+ and PFX1350-100H+ models) usually ships 1-5 days
28 190-9023 Gasket $3.30 1 usually ships 10-27 days
29 190-9024 Gasket 1 1/4 fitting $3.26 1 usually ships 10-27 days
30 190-9031 Nut 1 1/4 lock $6.59 1 usually ships 10-27 days
31 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
32 216-0205 Heater coil $232.09 1 usually ships 10-27 days
33 190-9025 Nut plate clip $12.20 1 usually ships 10-27 days
34 190-9026 Gasket nut plate $2.65 1 usually ships 10-27 days
35 190-0977 Vacuum tube assembly $50.44 1 (includes 12, 14-16) usually ships 10-27 days
