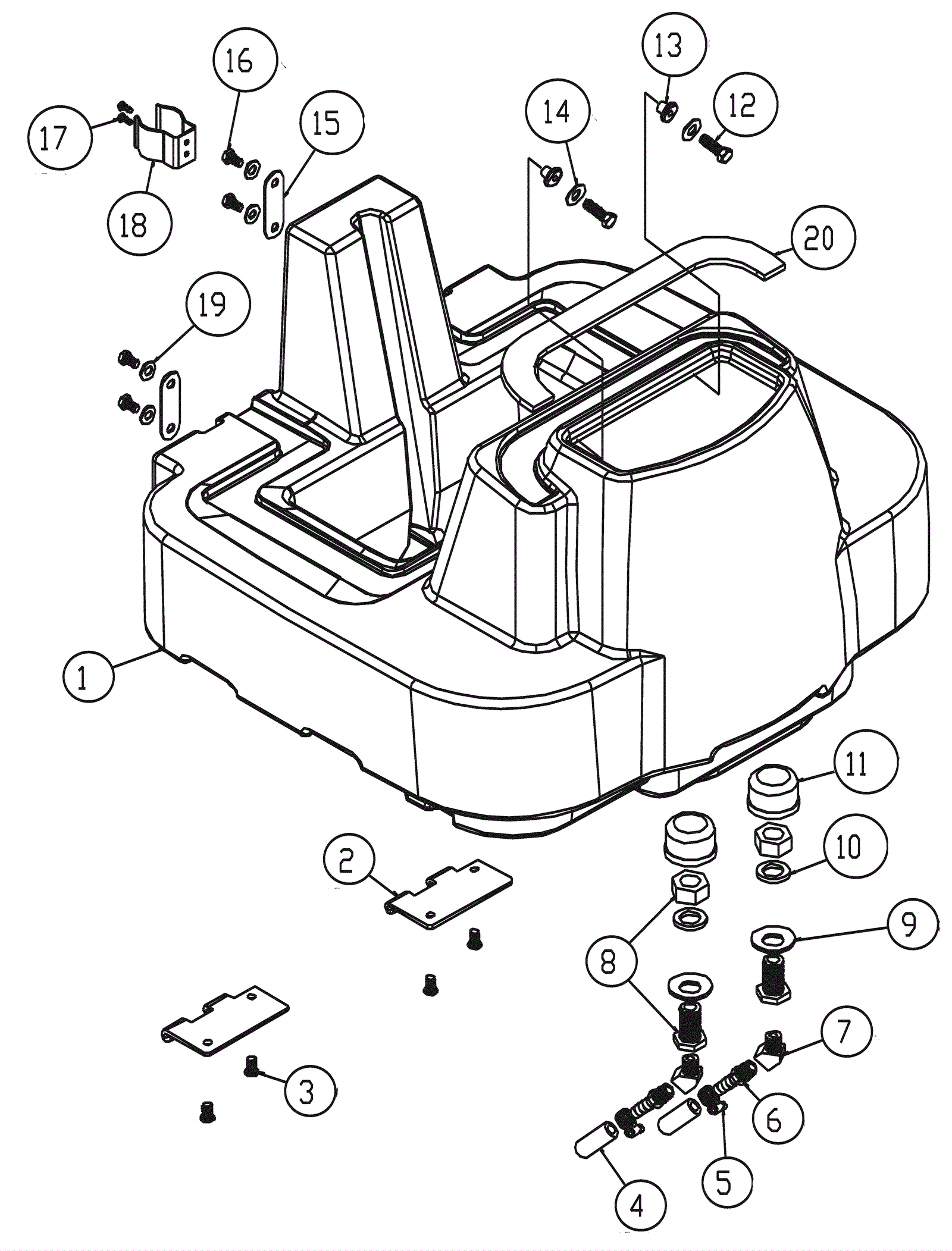

PFX 1350 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0951 Solution tank housing $378.51 1 usually ships 10-27 days
2 216-0112 Hinge $13.19 2 usually ships 1-5 days
3 190-0978 Screw 1/4-20 x 1/2 phillips $1.30 4 usually ships 10-27 days
5 190-0952 Hose clamp $3.77 2 usually ships 10-27 days
6 190-0907 Hose fitting $13.19 2 usually ships 10-27 days
7 189-5324 45 degree elbow $7.59 2 usually ships 11-24 days
8 189-4275 Fitting brass bulkhead 3/4 in $28.59 2 usually ships 10-27 days
9 190-0887 Washer $2.68 2 usually ships 10-27 days
10 189-4284 Gasket bulkhead (OBSOLETE) $0.99 2 usually ships 11-24 days
11 216-0134 Pump filter $6.59 2 ships same day
12 216-0315 Bolt 5/16-18 x 1 $1.30 2 usually ships 10-27 days
13 190-0953 Grommet $1.30 2 usually ships 10-27 days
14 N/A Not available Call for price 2 (Washer) usually ships 3-26 days
15 190-0954 Tie down plate $1.35 2 usually ships 10-27 days
16 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 4 ships same day
17 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
18 216-0128 Spring clip $7.69 1 usually ships 10-27 days
19 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
20 190-0955 Gasket foam strip $3.77 1 usually ships 10-27 days
