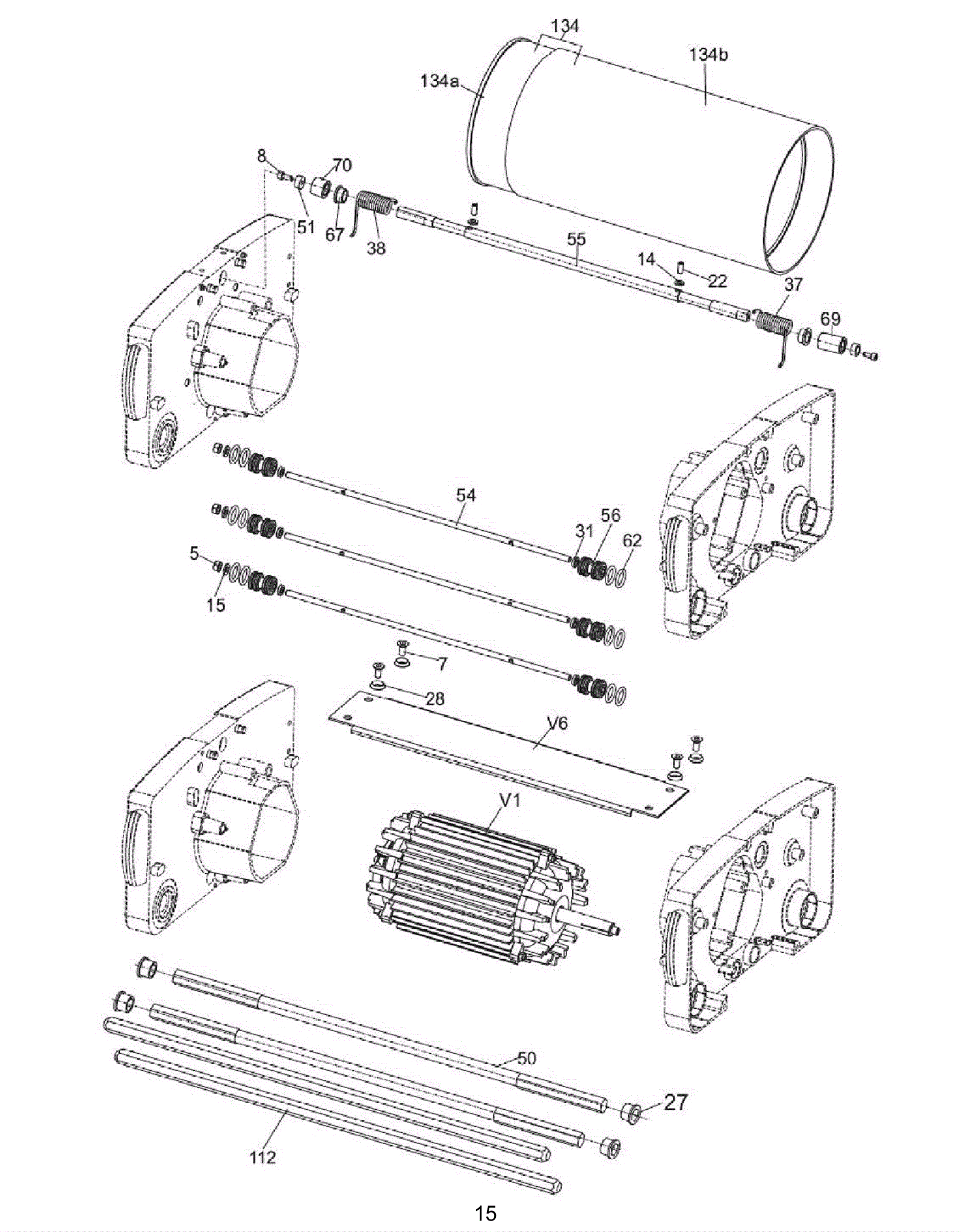

Motor, Drum, and Bridge Assembly

#PartDescription ReqNotesAvailability
5 190-1653 Nut 3
7 190-1505 Screw M6 x 14mm 4
8 190-1654 Screw M4 x 10mm 2
14 190-1655 Washer 2
15 190-1545 Washer 3
22 190-1656 Screw M5 x 12mm 2
27 190-1505 Screw M6 x 14mm 4
28 190-1514 Washer 4
31 190-1657 Washer 6
38 190-1658 Spring 1
50 190-1659 Hex shaft 2
51 190-1660 Washer 2
54 190-1661 Tie rod 3
55 190-1662 Shaft 1
56 190-1663 Roller 6
62 190-1523 O-ring 12
67 190-1664 Bushing 2
69 190-1665 Bushing 1
70 190-1666 Bushing 1
112 190-1667 Brush shaft 2
134a 190-1668 Drum 1
134b 190-1458 Drum sleeve 1
134c 190-1669 Motor 110V 60Hz 1
