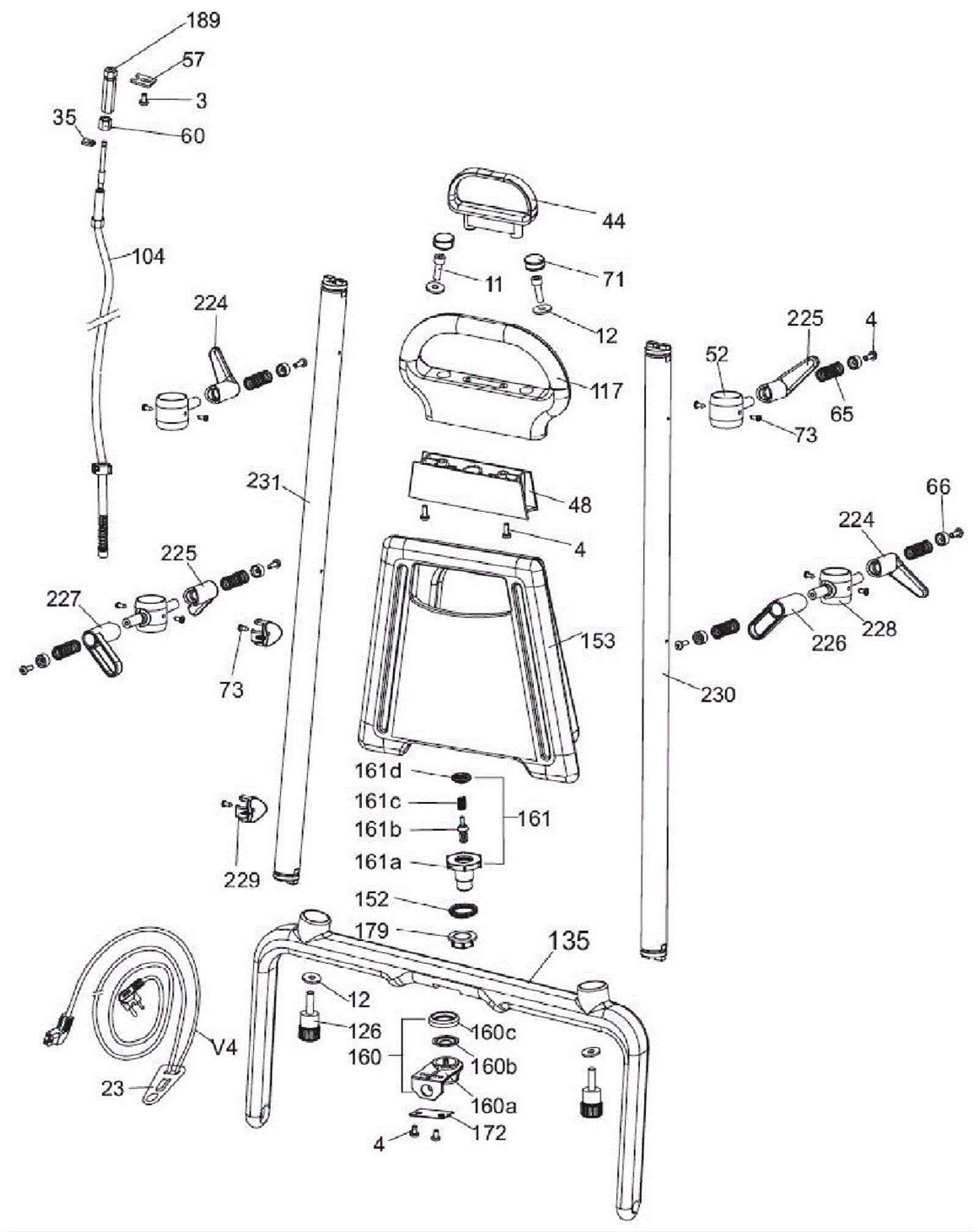

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
190-1617
|
Screw M4 x 8mm |
1 |
|
|
4 |
190-1581
|
Screw M4 x 12mm |
10 |
|
|
11 |
190-1508
|
Screw M6 x 20mm |
2 |
|
|
12 |
190-1618
|
Washer |
4 |
|
|
23 |
190-1619
|
Cable restraint |
1 |
|
|
35 |
190-1620
|
Clamp |
1 |
|
|
44 |
190-1621
|
Pull handle |
1 |
|
|
48 |
190-1622
|
Cap |
1 |
|
|
52 |
190-1623
|
Base cable holder |
2 |
|
|
57 |
190-1624
|
Clamp |
1 |
|
|
60 |
190-1625
|
Nut |
1 |
|
|
65 |
190-1626
|
Spring |
6 |
|
|
66 |
190-1627
|
Washer |
6 |
|
|
71 |
190-1628
|
Plug |
2 |
|
|
73 |
190-1525
|
Self tapping screw |
10 |
|
|
104 |
190-0581
|
Pull cable assembly |
1 |
|
|
117 |
190-1629
|
Top handle |
1 |
|
|
126 |
190-1460
|
Threaded knob |
2 |
|
|
135 |
190-1630
|
Bottom handle |
1 |
|
|
152 |
190-0580
|
Gasket |
1 |
|
|
153 |
190-1631
|
Tank |
1 |
|
|
160a |
183-4771
|
Base valve assembly |
1 |
|
|
160b |
190-1633
|
Base |
1 |
|
|
160c |
190-1634
|
Seal (OBSOLETE) |
1 |
|
|
160d |
183-4771
|
Base valve assembly |
1 |
|
|
161a |
190-1636
|
Complete valve |
1 |
|
|
161b |
190-1637
|
Valve body |
1 |
|
|
161c |
190-1638
|
Seal |
1 |
|
|
161d |
190-1639
|
Spring |
1 |
|
|
161e |
190-1640
|
Spring cap |
1 |
|
|
172 |
190-1641
|
Plate |
1 |
|
|
179 |
190-1642
|
Nut |
1 |
|
|
189 |
190-1643
|
Sleeve |
1 |
|
|
224 |
190-1644
|
Cable holder knob |
2 |
|
|
225 |
190-1645
|
Cable holder knob |
2 |
|
|
226 |
190-1646
|
Left hand tank holder knob |
1 |
|
|
227 |
190-1647
|
Right hand tank holder knob |
1 |
|
|
228 |
190-1648
|
Cable and tank holder base |
2 |
|
|
229 |
190-1649
|
Guide |
2 |
|
|
230 |
190-1650
|
Left hand pipe |
1 |
|
|
231 |
190-1651
|
Right hand pipe |
1 |
|
|
