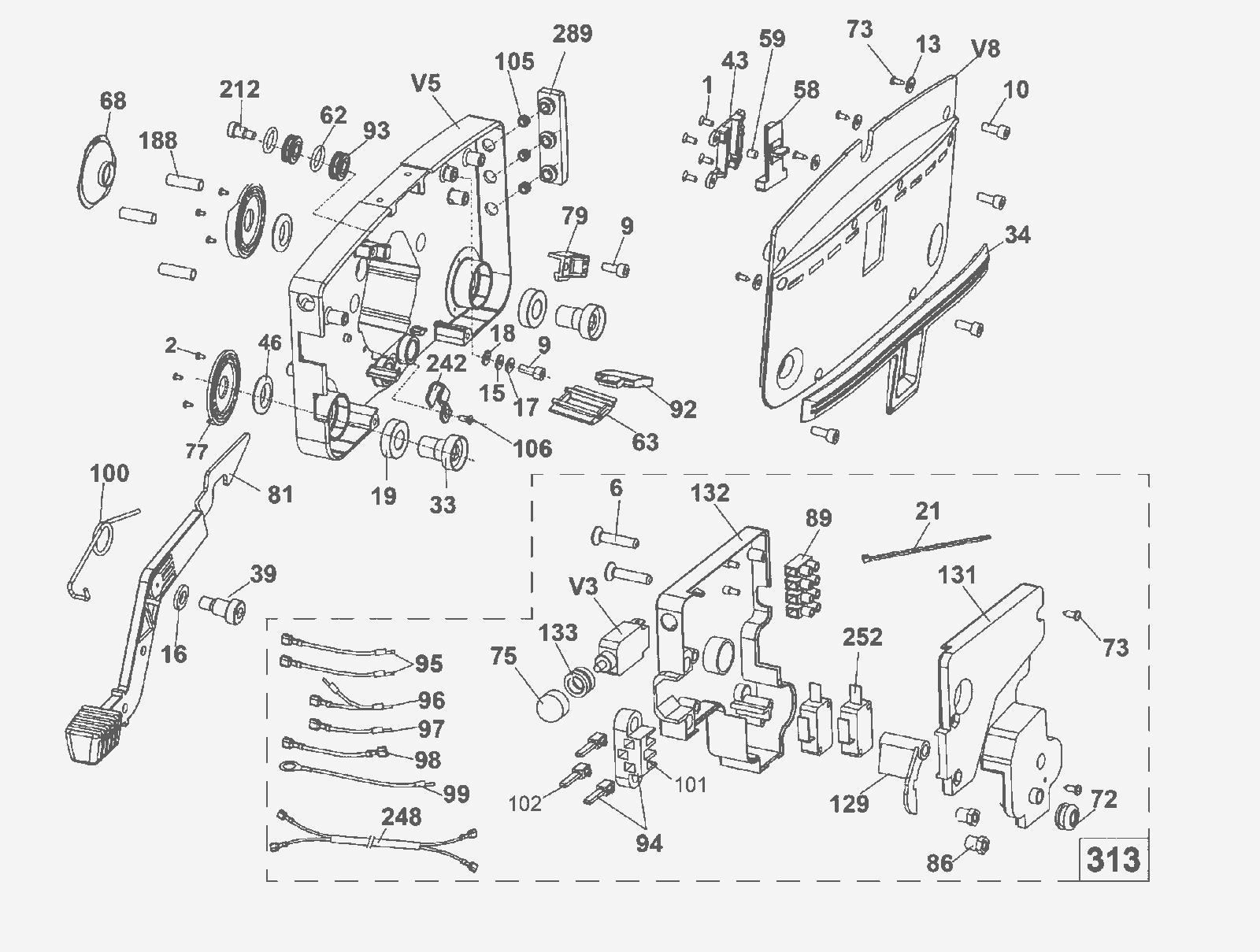

Idle Side Housing Assembly

#PartDescription ReqNotesAvailability
1 190-1503 Screw M4 x 10mm 4
2 190-1504 Screw M3 x 6mm 6
6 190-1544 Screw M5 x 25mm 2
9 190-1506 Screw M6 x 10mm 1
10 190-1507 Screw M6 x 16mm 6
12 190-1509 Washer 4
15 190-1545 Washer 1
16 190-1546 Washer 1
17 190-1547 Spring washer 1
18 190-1548 Toothed washer 1
19 190-1510 Bearing 6003 2RS 2
21 190-1549 Wire tie 3
32 190-1515 Bumper 1
33 190-1550 Bushing 2
34 190-1516 Bumper 1
39 190-1551 Stub axle 1
43 190-1518 Slider housing 1
46 190-1519 Seal 2
58 190-1552 Transport slider 1
59 190-1522 Pin 1
62 190-1523 O-ring 2
63 190-1524 Shield 1
68 190-1553 Fan cover 1
72 190-1554 Gromet 2
73 190-1525 Self tapping screw 6
75 190-1555 Cap 1
77 190-1526 Cap 2
79 190-1556 Stopper 1
81 190-1557 Pedal arm 1
86 190-1558 Nut 2
89 190-1559 Connector 1
92 190-1532 Shield 1
93 190-1533 Roller 2
94 190-1560 Socket assembly 1
95 190-1563 Cable 2
96 190-1564 Cable 1
97 190-1565 Cable 1
98 190-1566 Cable 1
99 190-1567 Cable 1
100 190-1568 Pedal spring 1
101 190-1561 Socket 1
102 190-1562 Terminal 3
105 190-1534 Bumper sleeve 3
106 190-1569 Screw M4 x 8mm 1
129 190-1570 Switch lever 1
131 190-1571 Top insulation 1
132 190-1572 Bottom insulation 1
133 190-1573 Nut 1
188 190-1574 Tie rod sleeve 3
212 190-0572 Stub axle 1
242 190-1575 Wire clamp 1
248 190-1576 Cable assembly 1
252 190-1577 Switch 2
313 190-1578 Electrical box assembly 1 (includes 6, 21, 72, 73, 75, 86, 89, 94-99, 101, 102, 129, 131-133, 248, and 252)
