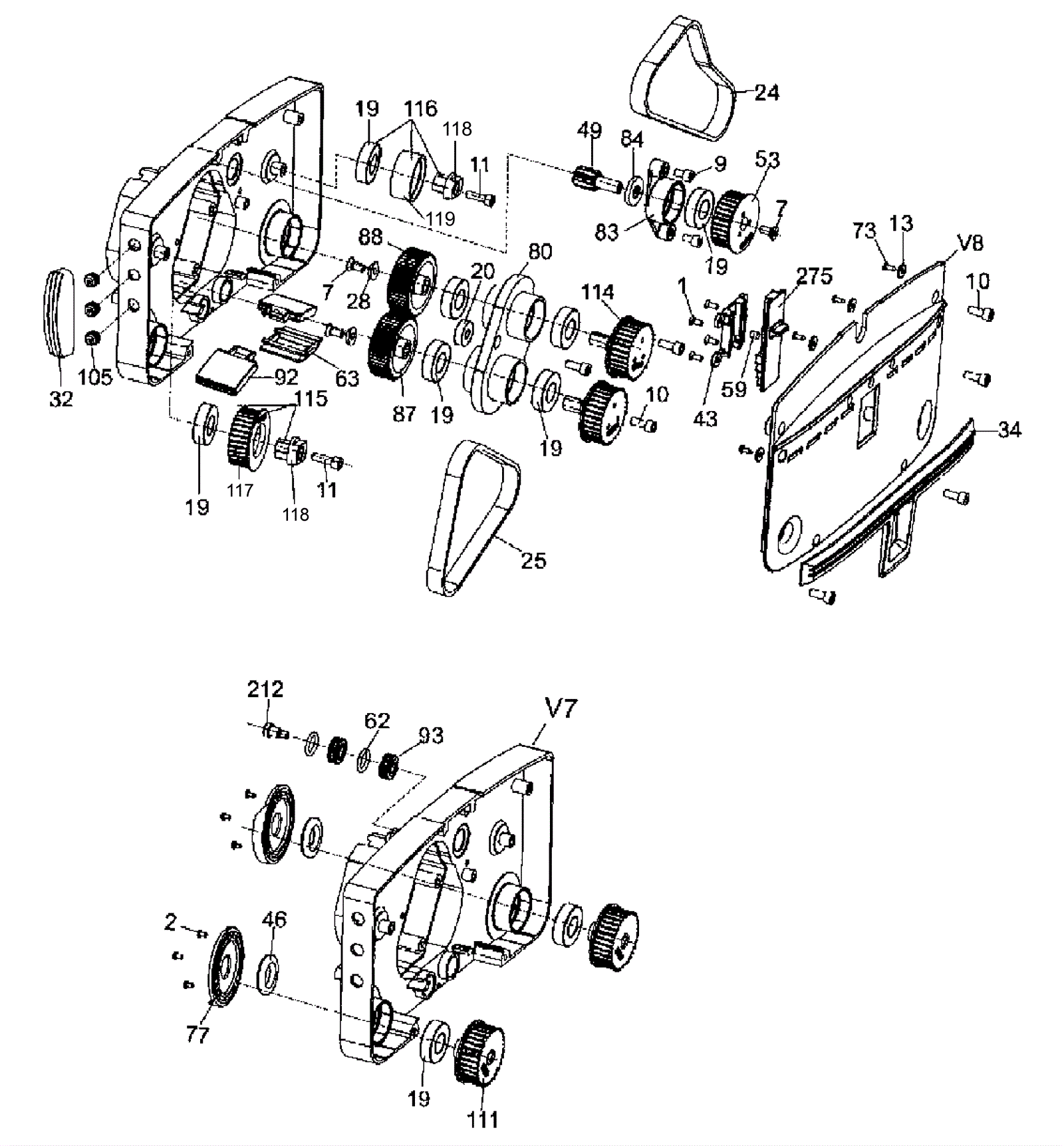

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-1503
|
Screw M4 x 10mm |
4 |
|
|
2 |
190-1504
|
Screw M3 x 6mm |
6 |
|
|
7 |
190-1505
|
Screw M6 x 14mm |
3 |
|
|
9 |
190-1506
|
Screw M6 x 10mm |
2 |
|
|
10 |
190-1507
|
Screw M6 x 16mm |
7 |
|
|
11 |
190-1508
|
Screw M6 x 20mm |
2 |
|
|
13 |
190-1509
|
Washer |
4 |
|
|
19 |
190-1510
|
Bearing 6003 2RS |
9 |
|
|
20 |
190-1511
|
Bearing 608 2Z |
1 |
|
|
24 |
190-1512
|
Belt |
1 |
|
|
25 |
190-1513
|
Belt |
1 |
|
|
28 |
190-1514
|
Washer |
2 |
|
|
32 |
190-1515
|
Bumper |
1 |
|
|
34 |
190-1516
|
Bumper |
1 |
|
|
42 |
190-1517
|
Brush slider |
1 |
|
|
43 |
190-1518
|
Slider housing |
1 |
|
|
46 |
190-1519
|
Seal |
2 |
|
|
49 |
190-1520
|
Pinion |
1 |
|
|
53 |
190-1521
|
Drum sprocket |
1 |
|
|
59 |
190-1522
|
Pin |
1 |
|
|
62 |
190-1523
|
O-ring |
2 |
|
|
63 |
190-1524
|
Shield |
1 |
|
|
73 |
190-1525
|
Self tapping screw |
4 |
|
|
77 |
190-1526
|
Cap |
2 |
|
|
80 |
190-1527
|
Gear housing |
1 |
|
|
83 |
190-1528
|
Housing sprocket |
1 |
|
|
84 |
190-1529
|
Seal |
1 |
|
|
87 |
183-2302
|
Complete replacement gear assembly - new style |
1 |
|
|
88 |
183-2302
|
Complete replacement gear assembly - new style |
1 |
|
|
92 |
190-1532
|
Shield |
2 |
|
|
93 |
190-1533
|
Roller |
2 |
|
|
105 |
190-1534
|
Bumper sleeve |
3 |
|
|
111 |
190-7045
|
Brush sprocket |
2 |
|
|
114 |
190-1536
|
Gear sprocket |
2 |
|
|
115 |
190-1537
|
Idler assembly |
1 |
|
|
116 |
190-1540
|
Idler assembly |
1 |
|
|
117 |
190-1538
|
Sprocket |
1 |
|
|
118 |
190-1539
|
Hub |
2 |
|
|
119 |
190-1541
|
Sleeve |
1 |
|
|
212 |
190-0572
|
Stub axle |
1 |
|
|
