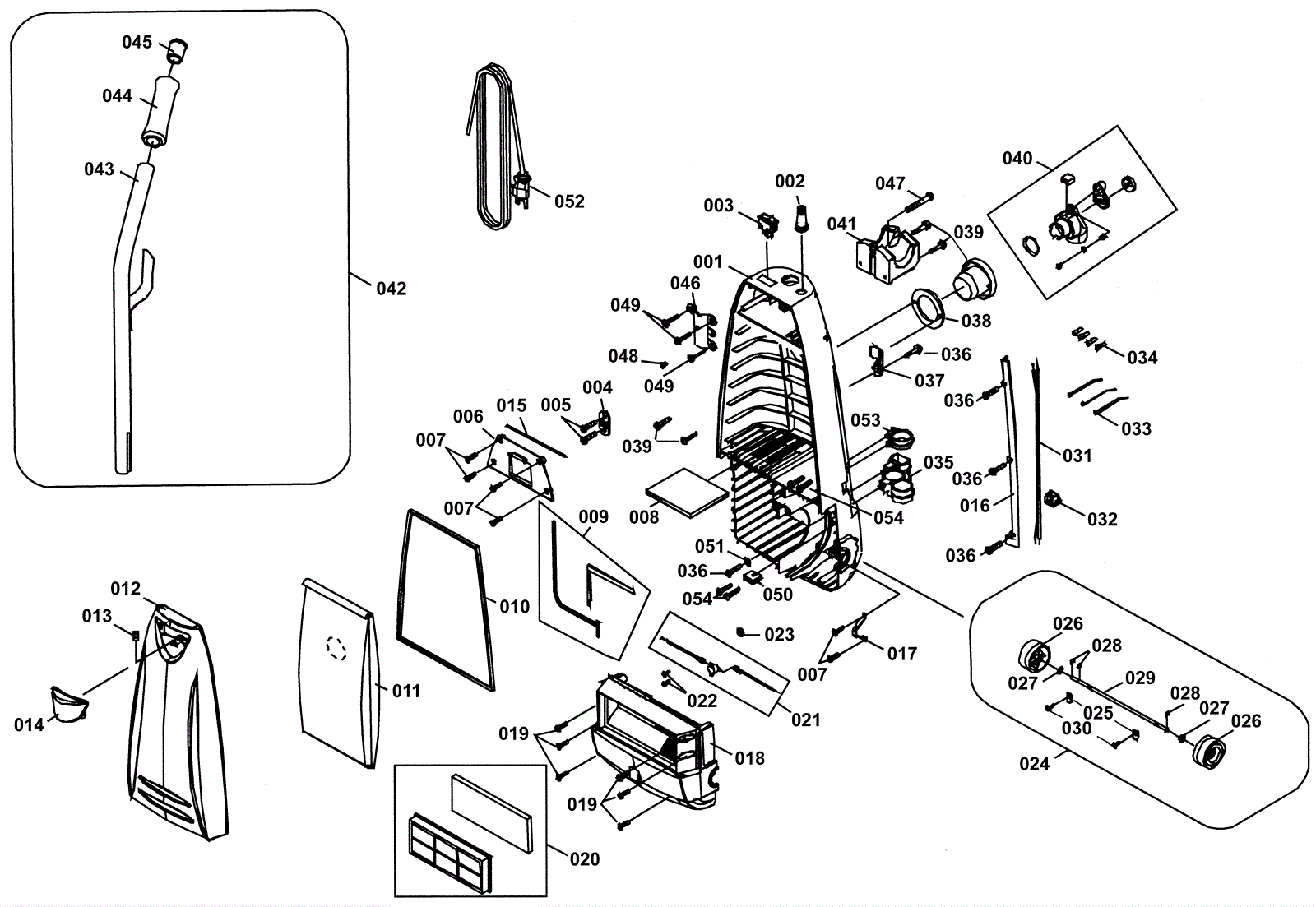

CMPS-1T Upper Assembly

#PartDescriptionPriceReqNotesAvailability
001 190-0108 Dust compartment $53.13 usually ships 20-37 days
002 190-0109 Boot strain relief $1.30 usually ships 1-5 days
003 190-0110 Main switch $2.57 usually ships 20-37 days
004 190-0111 Internal cord strap $0.99 usually ships 1-5 days
005 190-0112 Screw $0.99 usually ships 1-5 days
006 190-0113 Switch cover Call for price usually ships 1-5 days
007 190-0114 Screw $1.30 usually ships 1-5 days
008a 190-0115 Secondary filter $1.41 ships same day
008b 991-9123 HEPA bag (pkg of 10) $17.98 (NON-OEM) ships same day
009 190-0116 Motor cover seal kit (OBSOLETE) $3.08 usually ships 20-37 days
010 183-9075 Dust compartment seal kit $7.46 usually ships 8-21 days
011 991-9036 Paper vacuum bags (pkg of 10) $9.04 ships same day
012 190-0119 Dust cover $36.70 usually ships 20-37 days
014 190-0121 Dust cover release latch (OBSOLETE) $2.02 usually ships 20-37 days
015 190-0122 Switch cover seal $1.74 usually ships 1-5 days
016 190-0123 Motor cord holder plate $2.16 usually ships 1-5 days
017 190-0124 Support strap $0.99 usually ships 20-37 days
018 190-0125 Motor cover $15.26 usually ships 20-37 days
019 190-9686 Screw #8-18 x 5/8 $1.30 usually ships 10-27 days
020 190-0127 Exhaust foam filter & frame $4.42 usually ships 20-37 days
021 190-0128 Thermal reset switch $9.89 usually ships 8-21 days
022 190-0129 Screw $0.99 usually ships 1-5 days
023 190-0130 Thermal switch seal $1.30 usually ships 20-37 days
024 N/A Not available Call for price (parts only available separately) usually ships 3-26 days
025 190-0132 Set washer for axle $1.30 2 usually ships 20-37 days
026 190-0133 Rear wheel $4.44 2 ships same day
027 190-0134 Rear axle wheel washer $1.30 2 usually ships 20-37 days
028 190-0135 Rear axle wheel clip $1.30 3 usually ships 20-37 days
029 190-0136 Rear wheel axle $3.59 1 usually ships 20-37 days
030 190-0137 Screw $1.30 2 usually ships 20-37 days
031 190-0138 Motor lead cord $6.59 usually ships 1-5 days
032 190-0139 Bushing for motor lead $1.34 usually ships 1-5 days
033 190-0140 Zip tie $1.30 usually ships 1-5 days
034 190-0141 Wire connector $1.30 usually ships 20-37 days
035 190-0142 Obt tool caddy $5.62 usually ships 1-5 days
036 190-0143 Screw $1.30 usually ships 1-5 days
037 190-0144 Hose clip (OBSOLETE) $0.99 usually ships 20-37 days
038 190-0145 Swivel inlet gasket $1.30 usually ships 1-5 days
039 190-0146 Bag inlet $1.56 usually ships 1-5 days
040 190-0147 Suction inlet assembly $32.09 usually ships 20-37 days
041 190-0148 Hose hanger $8.79 usually ships 1-5 days
042 190-0149 Handle assembly $60.49 ships same day
043 N/A Not available Call for price Handle tube usually ships 3-26 days
044 190-0471 Rubber handle grip $3.96 (this handle grip used to be foam but is now rubber) ships same day
045 190-0151 Handle tube cap $1.30 usually ships 1-5 days
046 190-0152 Handle retainer $1.41 usually ships 1-5 days
047 190-9952 Screw $1.30 usually ships 20-37 days
049 190-0112 Screw $0.99 usually ships 1-5 days
050 190-0111 Internal cord strap $0.99 usually ships 1-5 days
051 190-0157 Washer $1.30 usually ships 20-37 days
052 190-0158 Power cord 50' 18/3 yellow $80.29 ships same day
053 190-0159 Telescopic wand $34.72 usually ships 1-5 days
054 190-0160 Screw $1.30 usually ships 1-5 days
