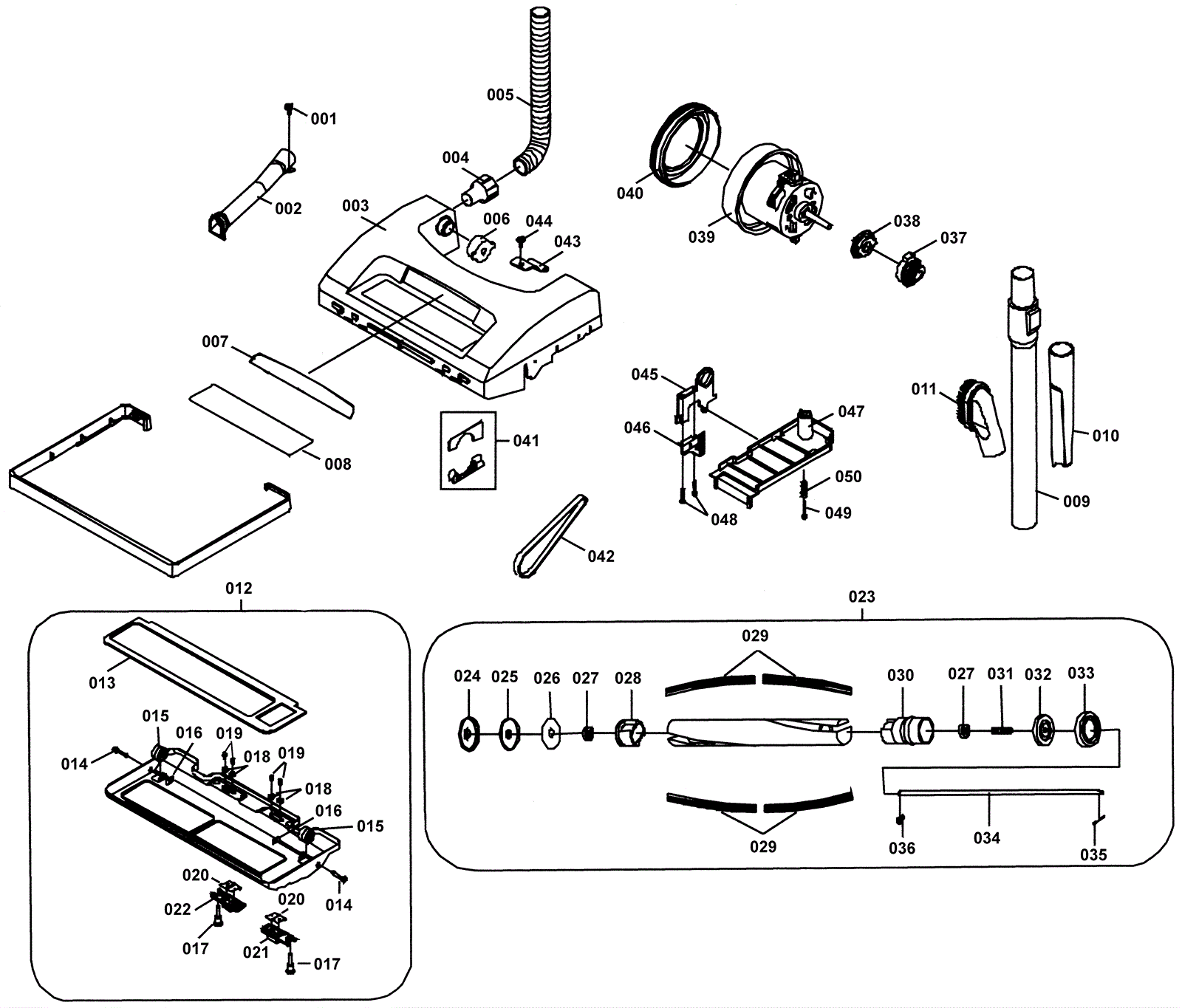

CMPS-1T Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 190-0161 Screw for inlet tube $1.30 usually ships 20-37 days
002 190-0162 Nozzle inlet tube $3.43 usually ships 20-37 days
003 190-0163 Nozzle housing (w/black bumper) $134.19 usually ships 20-37 days
004 190-0164 Stretch hose cuff $1.47 usually ships 20-37 days
005 190-0165 Stretch hose $13.19 usually ships 20-37 days
006 190-0166 Pivot sleeve bushing $1.30 usually ships 20-37 days
007 190-0167 Lens green $3.41 usually ships 20-37 days
008 190-0168 Clean max top mark $3.70 usually ships 1-5 days
009 190-0159 Telescopic wand $34.72 usually ships 1-5 days
010 190-0169 Crevice tool $6.59 usually ships 20-37 days
011 190-0170 Dusting brush $15.39 ships same day
012 190-0171 Base plate assembly $32.01 usually ships 20-37 days
013 190-0172 Base plate gasket $0.99 usually ships 1-5 days
014 190-0173 Base plate wheel axle $1.30 usually ships 20-37 days
015 190-0174 Base plate wheel $1.30 usually ships 20-37 days
016 190-0175 Base plate wheel push nut $1.30 usually ships 1-5 days
017 190-0176 Base plate latch stud screw $1.83 usually ships 20-37 days
018 N/A Not available Call for price Shoulder washer for latch usually ships 3-26 days
019 190-0177 Screw for latch $0.99 usually ships 1-5 days
020 N/A Not available Call for price Base plate latch leaf spring usually ships 3-26 days
021 190-0178 Base plate latch left $1.30 usually ships 1-5 days
022 190-0179 Base plate latch right $1.30 usually ships 1-5 days
023 190-0180 Brushroll assembly $47.58 ships same day
024 190-0181 Brushroll rubber end caps left $1.30 usually ships 20-37 days
025 190-0182 Brushroll metal cap left $1.30 usually ships 20-37 days
026 190-0183 Brushroll felt washer $1.30 ships same day
027 190-0184 Brushroll bearing $4.69 usually ships 20-37 days
028 190-0185 Brushroll bearing holder (OBSOLETE) $9.00 usually ships 20-37 days
029 190-0186 Brush insert strips $4.36 ships same day
030 190-0187 Brushroll belt pulley (OBSOLETE) $35.46 usually ships 20-37 days
031 190-0188 Brushroll spacing spring $1.30 usually ships 1-5 days
032 190-0189 Brushroll pulley metal end cap $1.45 usually ships 1-5 days
033 190-0190 Brushroll pulley end rubber cap $1.30 usually ships 20-37 days
034 190-0191 Brushroll shaft $2.77 ships same day
035 190-0192 Brushroll spring clip $1.30 usually ships 1-5 days
036 190-0193 Brushroll e-clip $1.30 usually ships 20-37 days
037 190-0194 Metal pivot sleeve $3.17 usually ships 20-37 days
038 190-0195 Front rubber motor mount $2.18 usually ships 1-5 days
039 190-0196 Motor assembly $144.09 ships same day
040 190-0197 Rear rubber motor mount $4.16 usually ships 1-5 days
041a 190-0198 Vented support fitting $1.30 usually ships 20-37 days
041b 190-0307 Brush support $10.60 ships same day
042 190-0199 Belt $3.83 ships same day
043 190-0200 Handle release spring $3.58 usually ships 20-37 days
044 190-0201 Screw for handle release spring $1.35 usually ships 1-5 days
045 190-0202 Pedal frame $2.78 usually ships 20-37 days
046 190-0203 Rear belt guard $1.30 usually ships 20-37 days
047 190-0204 Rear swivel belt cover $4.47 usually ships 20-37 days
048 190-0205 Screw for pedal frame $1.30 usually ships 1-5 days
049 190-0206 Screw for swivel belt cover $1.30 usually ships 1-5 days
050 190-0207 Spring for swivel belt cover $1.30 usually ships 20-37 days
