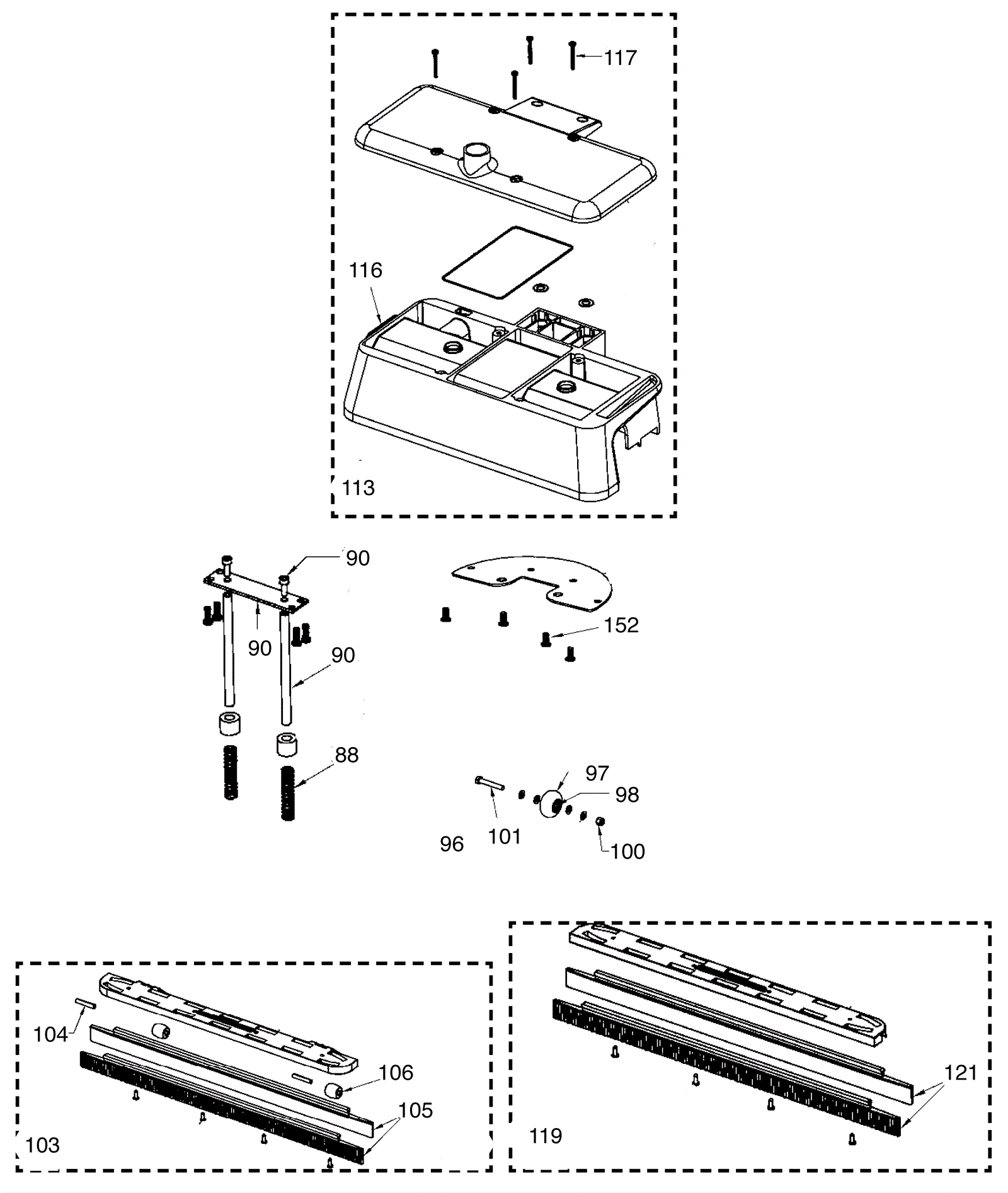

| # | Part | Description |
Req | Notes | Availability |
|---|
88 |
190-7087
|
Spring |
2 |
|
|
90 |
190-7088
|
Vacuum shoe runner assembly |
1 |
|
|
96 |
190-7089
|
Wheel and bearing |
1 |
(includes 97-101) |
|
97 |
190-7090
|
Wheel |
1 |
|
|
98 |
190-7046
|
Bearing |
2 |
|
|
100 |
190-7091
|
Nut nylock |
1 |
|
|
101 |
190-7092
|
Bolt M6 x 40mm |
1 |
|
|
103 |
190-7093
|
Front squeegee assembly |
1 |
(includes 104-106) |
|
104 |
190-7094
|
Pin |
2 |
|
|
105 |
190-0427
|
Squeegee blade |
2 |
|
|
106 |
190-7095
|
Squeegee roller |
2 |
|
|
113 |
190-7096
|
Vacuum shoe assembly |
1 |
(includes 116-117) |
|
116 |
190-7097
|
Vacuum shoe base |
1 |
|
|
117 |
183-1143
|
Self tapping screw |
4 |
|
|
119 |
190-7098
|
Rear squeegee assembly |
1 |
(includes 121) |
|
121 |
190-0427
|
Squeegee blade |
2 |
|
|
152 |
183-8742
|
Screw |
4 |
|
|
