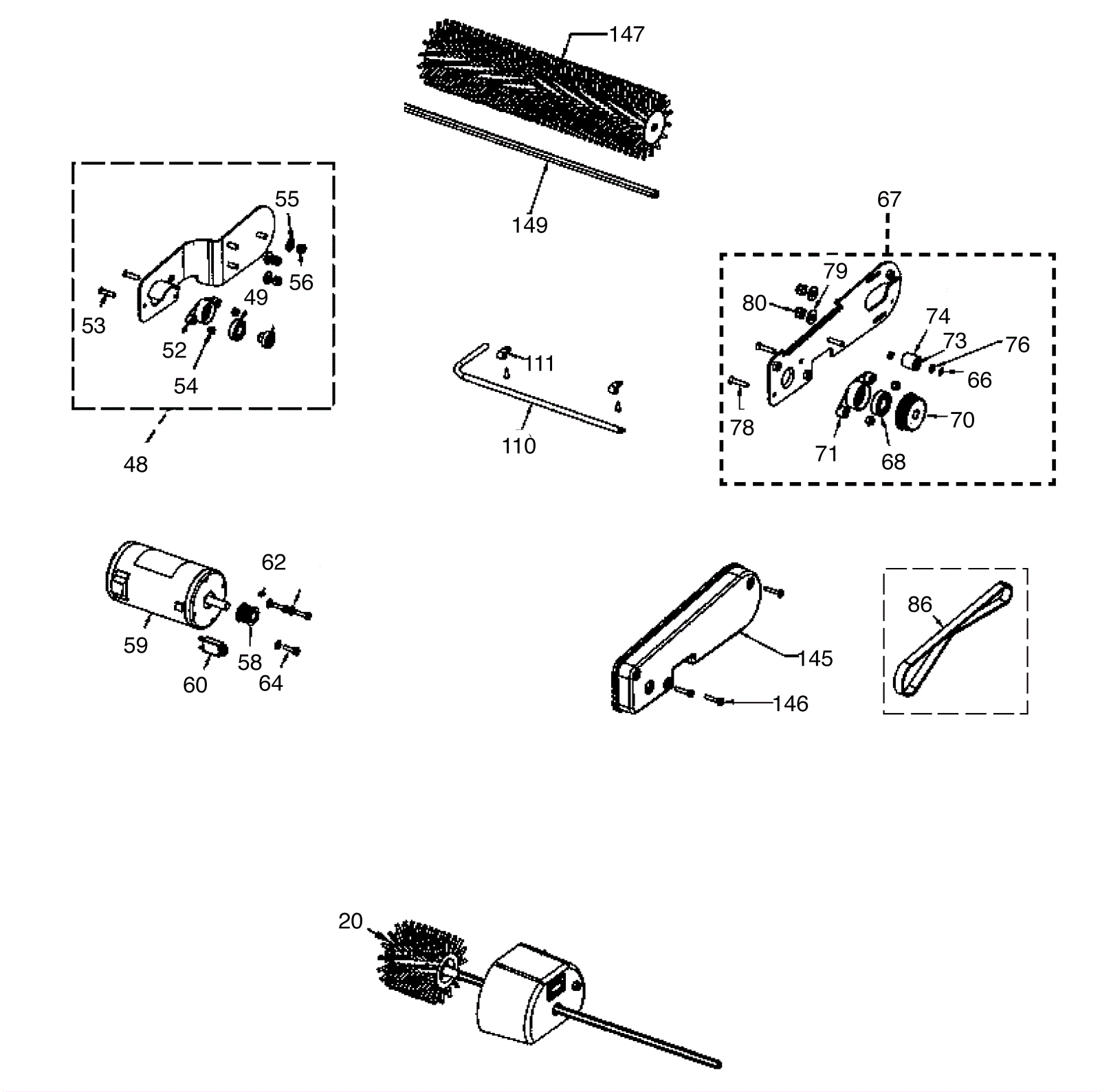

| # | Part | Description |
Req | Notes | Availability |
|---|
20 |
190-7033
|
Side brush assembly (OBSOLETE) |
1 |
|
|
48 |
190-7034
|
Bearing plate assembly |
1 |
(includes 49, 52-56) |
|
49 |
190-7035
|
Bearing |
1 |
|
|
52 |
190-7036
|
Sprocket housing |
1 |
|
|
53 |
190-7037
|
Screw M6 x 25mm |
2 |
|
|
54 |
190-7038
|
Nut |
2 |
|
|
55 |
183-1102
|
Washer |
3 |
|
|
56 |
183-1103
|
Nut nyloc |
3 |
|
|
58 |
190-7039
|
Motor pulley |
1 |
|
|
59 |
190-7040
|
Motor |
1 |
|
|
60 |
190-7041
|
Circuit breaker |
1 |
|
|
62 |
190-7042
|
Screw M6 x 6mm |
1 |
|
|
64 |
183-8775
|
Screw |
3 |
|
|
66 |
190-7043
|
Circlip |
1 |
|
|
67 |
190-7044
|
Motor plate assembly |
1 |
(includes 66, 68, 70-71, 73-74, 76, and 78-80) |
|
68 |
190-7035
|
Bearing |
1 |
|
|
70 |
190-7045
|
Brush sprocket |
1 |
|
|
71 |
190-7036
|
Sprocket housing |
1 |
|
|
73 |
190-7046
|
Bearing |
2 |
|
|
74 |
190-7047
|
Idler pulley |
1 |
|
|
76 |
190-7048
|
Washer |
1 |
|
|
78 |
190-7037
|
Screw M6 x 25mm |
2 |
|
|
79 |
183-1102
|
Washer |
2 |
|
|
80 |
183-1103
|
Nut nyloc |
2 |
|
|
86 |
190-7049
|
Belt |
1 |
|
|
110 |
190-7050
|
Spray bar |
1 |
|
|
111 |
183-4825
|
Cable clamp |
2 |
|
|
145 |
190-7051
|
Belt cover |
1 |
|
|
146 |
183-8776
|
Screw |
3 |
|
|
147a |
190-7052
|
Cylindrical brush (blue) |
1 |
|
|
147b |
190-7053
|
Cylindrical brush (blue) |
1 |
|
|
147c |
190-7054
|
Cylindrical brush (black) |
1 |
|
|
147d |
190-7055
|
Cylindrical brush (blue) |
1 |
|
|
149 |
190-7056
|
Brush shaft |
1 |
|
|
