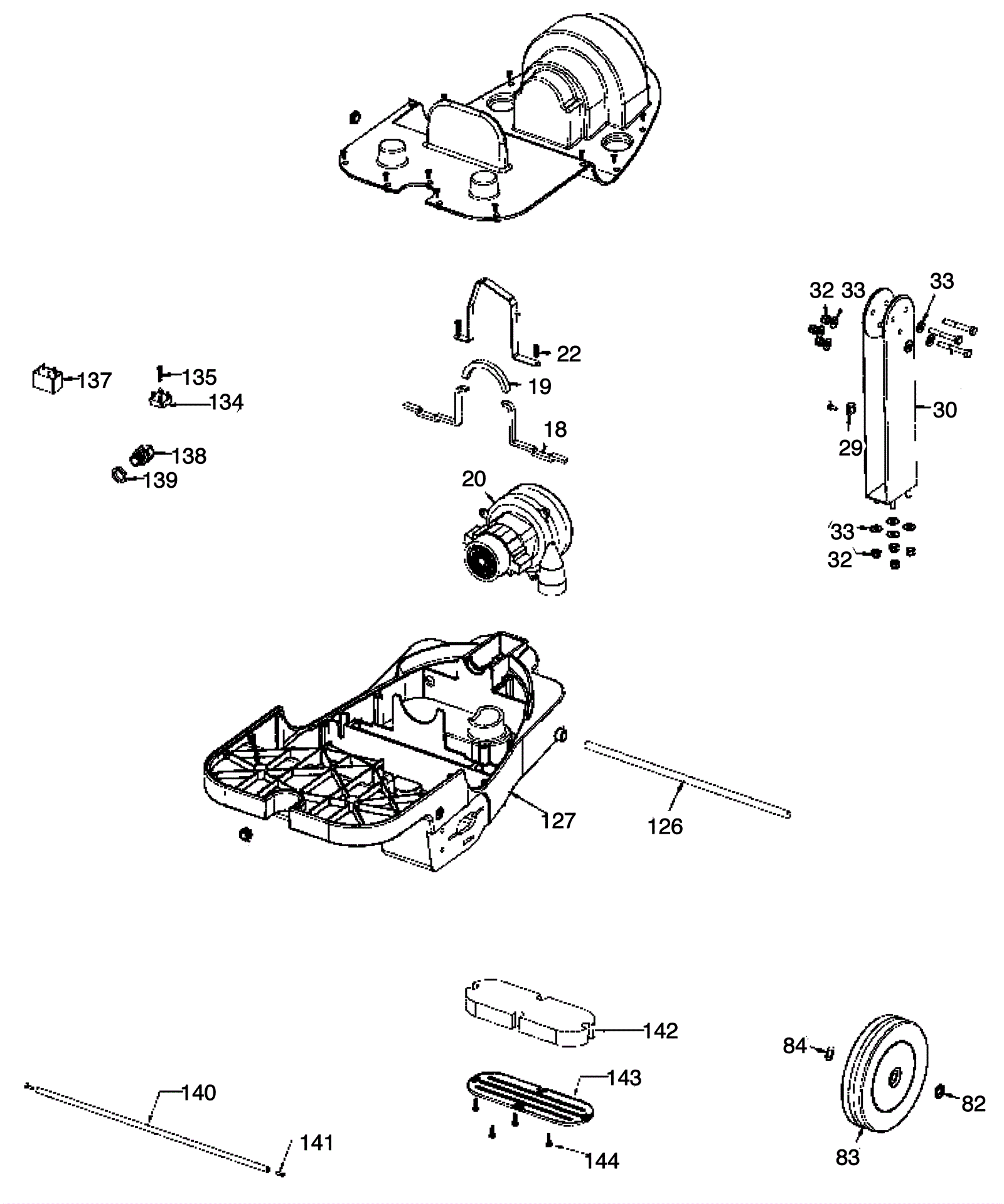

| # | Part | Description |
Req | Notes | Availability |
|---|
18 |
190-7020
|
Neoprene sponge strip |
1 |
|
|
19 |
190-7021
|
Motor sealing pad |
1 |
|
|
20 |
190-7022
|
Vacuum motor |
1 |
|
|
22 |
183-8742
|
Screw |
2 |
|
|
29 |
190-7023
|
Cable clamp |
1 |
|
|
30 |
190-7024
|
Handle support |
1 |
|
|
32 |
183-1103
|
Nut nyloc |
7 |
|
|
33 |
183-1102
|
Washer |
10 |
|
|
82 |
183-8780
|
Washer internal star lock |
2 |
|
|
83 |
190-0966
|
Wheel (black) |
2 |
|
|
84 |
190-7025
|
Washer |
2 |
|
|
126 |
190-7026
|
Axle |
1 |
|
|
127 |
190-7027
|
Chassis |
1 |
|
|
134 |
183-8819
|
25amp bridge rectifier |
1 |
|
|
135 |
183-1198
|
Screw self tapping |
1 |
|
|
137 |
190-7028
|
6amp EMI Filter |
1 |
|
|
138 |
216-0173
|
Strain relief |
1 |
|
|
139 |
190-1288
|
Nut |
1 |
|
|
140 |
190-7029
|
Strengthening bar |
1 |
|
|
141 |
190-7030
|
Screw M4 x 10mm |
2 |
|
|
142 |
190-7031
|
Outlet filter |
1 |
|
|
143 |
190-7032
|
Outlet filter cover |
1 |
|
|
144 |
183-1142
|
Screw |
4 |
|
|
