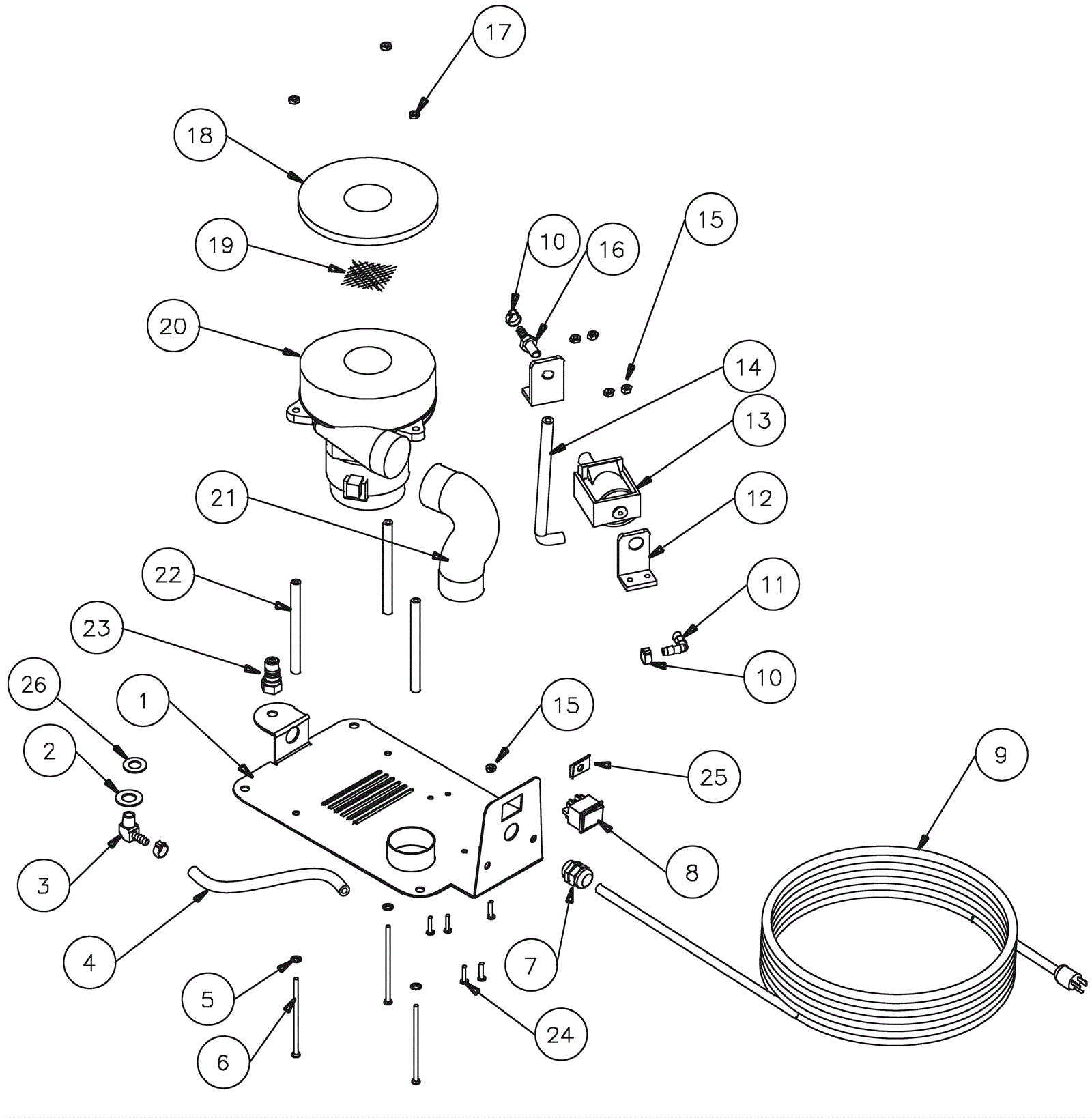

PS35 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-1183 Base plate weldment $96.79 1 usually ships 15-28 days
2 216-0314 Washer $1.54 1 usually ships 15-28 days
3 216-0135 90 degree elbow barb $7.69 1 usually ships 15-28 days
4 216-0136 Hose (sold by the inch) $1.54 1 usually ships 15-28 days
5 190-0269 Washer 1/4 spring lock $1.54 1 usually ships 15-28 days
6 999-9145 Screw 1/4-20 x 5 1/2 cap grade 18-8 stainless steel $5.94 3 usually ships 12-18 days
7 216-0173 Strain relief $6.59 1 usually ships 1-5 days
8 183-4606 Switch $8.79 1 usually ships 15-28 days
9 189-4278 18/3 pigtail power cord 15ft $191.68 1 usually ships 14-27 days
10 216-0137 Hose clamp $3.52 1 usually ships 15-28 days
11 190-1184 Nylon elbow fitting $2.42 1 usually ships 15-28 days
12 190-1185 Flojet pump mount $6.59 1 usually ships 15-28 days
13 183-2124 120V solenoid pump $89.09 1 usually ships 15-28 days
14 216-0136 Hose (sold by the inch) $1.54 1 usually ships 15-28 days
15 190-0405 Nut nylon insert lock $1.54 4 usually ships 15-28 days
16 216-0203 Brass fitting $3.74 1 usually ships 15-28 days
18 183-4293 Vacuum motor gasket $10.99 1 ships same day
19 190-0970 Vac motor screen $1.98 1 usually ships 15-28 days
20 216-0095 115V 2 stage vacuum motor $138.58 1 ships same day
21 216-0037 Vac hose $1.54 1 usually ships 1-5 days
22 190-1186 Metal mounting post $9.89 3 usually ships 15-28 days
23 189-4271 Fitting brass 1/8 FPT x 1/8 in MQD $15.93 1 usually ships 14-27 days
24 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 5 ships same day
26 189-4256 Wheel spacer $7.07 1 usually ships 1-5 days
28 216-0181 Nut 1/2 lock steel conduit $1.32 1 usually ships 15-28 days
