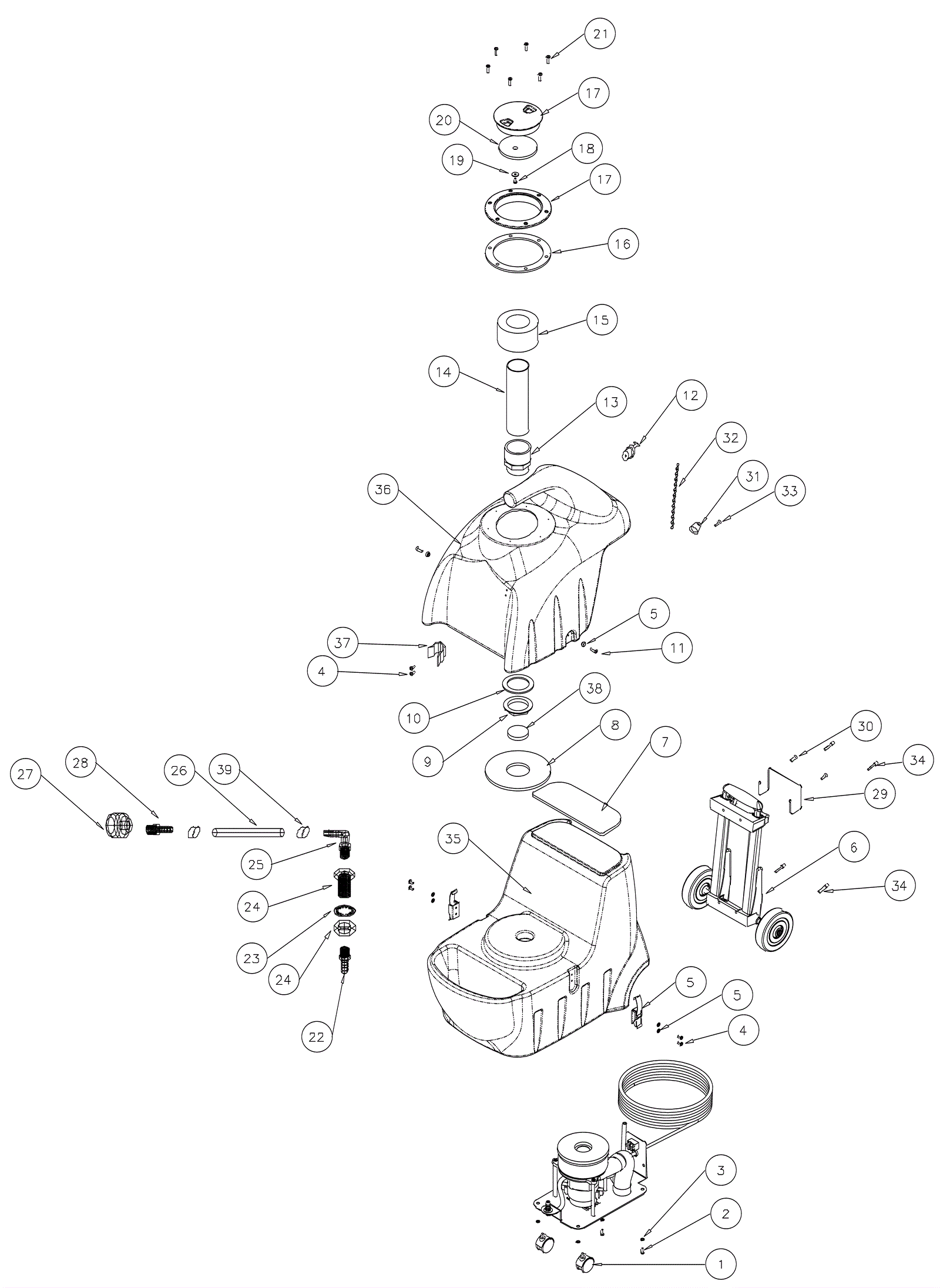

PS35 Complete Assembly

#PartDescriptionPriceReqNotesAvailability
1 216-0212 45mm swivel caster wheel $3.26 2 ships same day
2 190-0978 Screw 1/4-20 x 1/2 phillips $1.30 2 usually ships 15-28 days
3 190-0269 Washer 1/4 spring lock $1.30 4 usually ships 15-28 days
4 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated $0.99 6 ships same day
5 190-1179 Latch with cover $19.35 1 usually ships 15-28 days
6 190-0263 Handle and wheels $127.85 1 usually ships 15-28 days
7 190-1170 Solution tank gasket $12.09 1 usually ships 15-28 days
8 183-4293 Vacuum motor gasket $10.99 1 ships same day
9 190-0870 Nut lock $4.29 1 usually ships 15-28 days
10 189-2486 Vac inlet gasket $3.21 1 ships same day
11 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
12 189-7610 Drain plug $46.18 1 usually ships 14-27 days
13 190-1172 Adapter $3.94 1 usually ships 15-28 days
14 190-1173 Pipe (gray) $4.95 1 usually ships 15-28 days
15 190-1174 Vacuum shutoff float ring $28.59 1 usually ships 15-28 days
16 189-4288 Gasket solution tank lid $7.56 1 usually ships 14-27 days
17 190-1175 4 inch clear lid $69.29 1 usually ships 15-28 days
18 190-1176 Washer #6 5/8 flat SS $1.30 1 usually ships 15-28 days
19 190-1177 Screw 8-18 x 1/2 pan head ss $1.30 1 usually ships 15-28 days
20 189-3191 Shut off disk $42.66 1 usually ships 1-5 days
21 190-9027 Screw #8 x 3/4 flat head phillips t/s $4.77 6 usually ships 15-28 days
22 216-0203 Brass fitting $3.45 1 usually ships 15-28 days
23 216-0337 Washer $1.50 1 usually ships 15-28 days
24 216-0335 Anchor connector $19.79 1 usually ships 15-28 days
25 216-0135 90 degree elbow barb $7.69 1 usually ships 15-28 days
26 216-0136 Hose (sold by the inch) $1.30 1 usually ships 15-28 days
27 190-0926 Mesh screen filter $3.81 1 usually ships 15-28 days
28 190-1178 Hose barb fitting $1.30 1 usually ships 15-28 days
29 216-0251 Cord hook $24.19 1 usually ships 15-28 days
30 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 ships same day
31 216-0107 End loop $1.30 1 usually ships 1-5 days
32 190-1812 Tether $10.99 1 usually ships 15-28 days
33 190-0390 Screw $1.30 1 usually ships 1-5 days
34 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
35 190-1180 Solution tank $313.49 1 usually ships 15-28 days
36 190-1181 Recovery tank $232.78 1 usually ships 15-28 days
37 216-0128 Spring clip $7.69 1 usually ships 15-28 days
38 189-4260 Foam filter $2.99 1 usually ships 1-5 days
39 216-0137 Hose clamp $3.37 1 usually ships 15-28 days
N/S 190-0554 10 foot stretch hose assembly $457.59 1 usually ships 15-28 days
N/S 190-1083 Upholstery tool $159.49 1 usually ships 15-28 days
N/S 190-1182 Decal Call for price 1 usually ships 15-28 days
