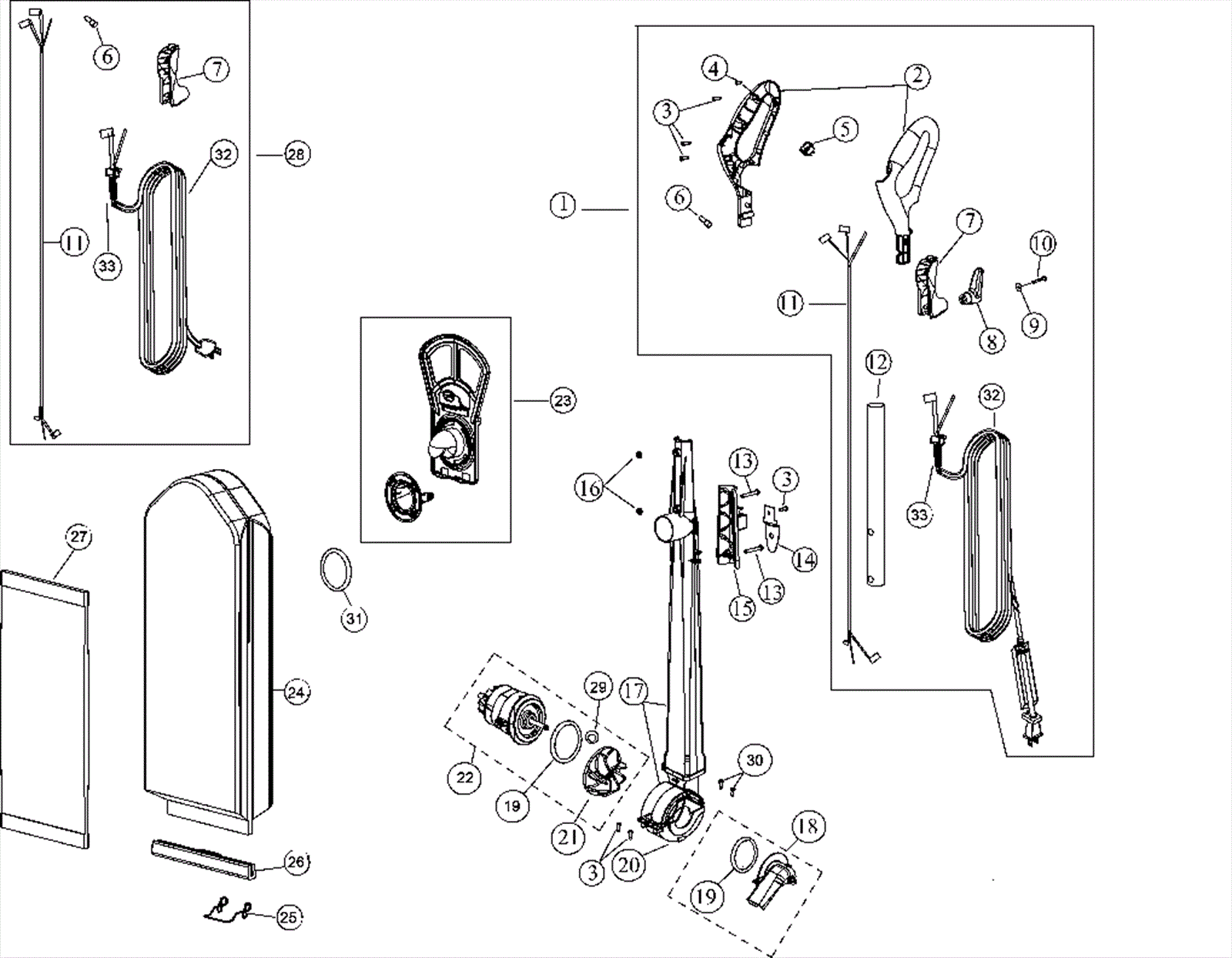

ZM-600 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9045 Handle assembly $77.11 1 (includes 2-12,32 and 33) usually ships 11-14 days
2 N/A Not available Call for price 1 usually ships 3-26 days
3 190-9686 Screw #8-18 x 5/8 $3.95 6 usually ships 14-18 days
4 190-0507 Screw 8 x 7/16 $3.95 1 usually ships 1-5 days
5 190-0508 Main switch handle $5.27 1 usually ships 11-14 days
6 190-0141 Wire connector $3.95 1 usually ships 11-14 days
7 190-0509 Handle back $6.59 1 usually ships 11-14 days
8 190-0510 Upper cord hook $9.89 1 usually ships 11-14 days
9 190-0511 Upper cord hook washer $3.95 1 usually ships 1-5 days
10 190-0505 Upper cord hook screw $3.95 1 usually ships 11-14 days
11 190-0512 Handle cord harness $17.59 1 usually ships 11-14 days
12 190-0513 Handle tube $9.76 1 usually ships 1-5 days
13 190-0514 Screw 10-32 x 1.625 $3.95 2 usually ships 11-14 days
14 190-0515 Steel cord hook $5.50 1 usually ships 11-14 days
15 190-0516 Handle tube bracket $5.50 1 usually ships 11-14 days
16 190-0517 Hex nut $3.95 2 usually ships 11-14 days
17 190-0518 Lower handle and fan housing assembly $34.09 1 usually ships 11-14 days
18 190-0519 Fan duct cover with seal assembly $8.79 1 (includes 19) usually ships 11-14 days
19 190-0552 Seal kit $12.09 1 (pkg of 2) usually ships 11-14 days
20 190-0521 Lower fan housing $5.27 1 usually ships 11-14 days
21 190-0522 Fan $6.59 1 usually ships 11-14 days
22 190-9046 Motor and fan assembly $202.39 1 (includes 19,21,29) usually ships 11-14 days
23 190-9047 Bag collar holder assembly $15.39 1 usually ships 11-14 days
24 190-9050 Cloth bag $39.59 1 usually ships 11-14 days
25 190-0527 Lower bag spring $3.95 1 usually ships 11-14 days
26 190-0528 Lower bag clip $5.50 1 usually ships 14-19 days
27a 190-9048 HEPA bags (6 pack) $18.24 1 usually ships 11-14 days
27b 190-0530 Paper vacuum bags (pkg of 6) $24.19 1 usually ships 11-14 days
27c 991-6034 Paper vacuum bags (pkg of 10) $23.35 1 (NON-OEM) ships same day
28 190-9049 Power cord upgrade kit $105.59 1 (includes 6,7,11,32 and 33) ships same day
29 190-0532 Fan washer $3.95 1 usually ships 1-5 days
30 190-0533 Screw $3.95 2 usually ships 11-14 days
31 190-0534 Bag collar seal $3.82 1 usually ships 1-5 days
32 190-0535 Power cord $63.79 1 usually ships 11-14 days
33 190-0536 Strain relief $3.95 1 usually ships 11-14 days
