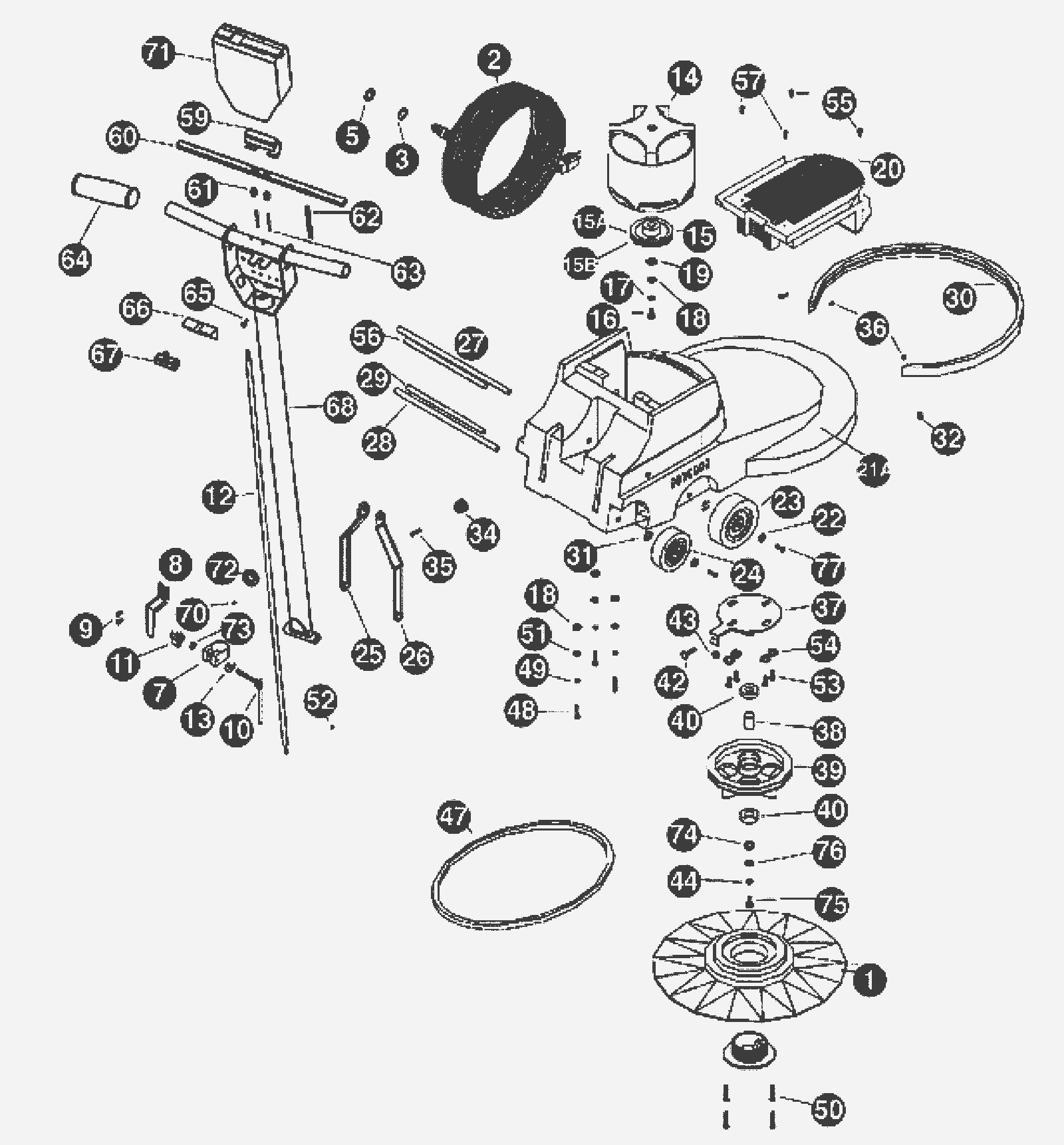

Entire Assembly

#PartDescription ReqNotesAvailability
1 190-0038 Pad driver 1
2 190-0661 14/3 75 foot power cord (gray) 1
3 189-3047 Strain relief washer 1
4 999-0024 Washer 5/16 flat stainless steel 3
5 216-0181 Nut 1/2 lock steel conduit 1
6a 190-0075 15amp Circuit breaker 1
6b 190-0393 17amp circuit breaker 1
7 189-3012 Handle clamp collar 1
8 189-2978 Cord hook 1
9 189-2979 Screw 10-24 x 1/2 pan head phillips type f 2
10 190-0008 Handle clamp assembly 1
11 189-2981 Knob 1
12 189-3016 Interconnect cord 1
13 189-3010 Oval washer 1
14a 190-0663 1.5 Hp motor 1
14b 189-3039 Carbon brush (sold individually)
15a 190-0664 3 inch main pulley 1 (P2000 model only)
15b 190-0665 3 inch main pulley 1 (P1200 model only)
15c 190-0666 3 inch main pulley 1 (P1600 model only)
16 189-2991 Screw 5/16-18 x 1-1/2 flat phillips 1
17 999-0406 Washer 5/16 internal star lock zinc plated 1
18 189-2993 Washer 3/8 wrought 1
19 190-0667 Motor cover 1
20 190-0667 Motor cover 1
21 190-0668 Housing (black) 1
22 999-0016 Washer 1/4 flat plain finish 4
23 189-2987 5 inch wheel 2
24 190-0669 Wheel 4 x 1 1/2 (black) 2
25 189-2980 Left side handle brace 1
26 189-3013 Right side handle brace 1
27 190-0670 Axle 1
28 189-2988 Axle (main wheels) 1
29 190-0671 Pivot shaft brace 1
30 190-0672 Bumper (sold by the inch) 46 inch
31 189-2984 Spring washer 2
32 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel 4
34 190-0267 Bumper 1
35 999-0883 Screw 8 x 1 pan head phillips zinc plated 1
36 189-2999 Shaft and plate weldment 1
37 189-2997 Main pulley 1
38 189-2995 Bearing 1
39 190-0673 Screw 5/16 x 3/4 hex cap 1
40 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
41 999-0069 Nut 5/16-18 hex 1
45a 190-0674 39.5 inch belt 1
45b 190-0675 40.5 inch belt 1
46 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 1
47 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
48 189-2991 Screw 5/16-18 x 1-1/2 flat phillips 3
50 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish 5
51 189-2998 Screw 3/8-16 x 3/4 hex end cap 4
54 190-0677 Pivot shaft handle 4
56 189-8626 Switch box cover 1
57 190-0060 Thumb actuation release 2
58 190-0061 Handle trigger 1
59 190-0062 Trigger tension spring 1
60 190-0063 Spring 1
61 190-0064 Handle roll pin 2
62 190-0270 Handle grip 1
63 190-0066 Washer lock 2
64 190-0067 Insulation sheet 1
65 190-0575 On/off switch 1
66 190-0271 Handle weldment 1
67 189-8627 Grommet 1
69 190-0268 Spacer 1
70 189-2979 Screw 10-24 x 1/2 pan head phillips type f 1
71 189-8626 Switch box cover 1
72 189-8627 Grommet 1
77 190-0265 Axle bolt 1
N/S 190-0075 15amp Circuit breaker
N/S 190-0473 1/2 inch steel ball
N/S 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
N/S 190-1446 Handle assembly (includes front and back handle and switch)
N/S 190-1446 Handle assembly 1 (includes handle top, tube and interconnet cord.)
N/S 189-3040 Pad holder center grip 1
