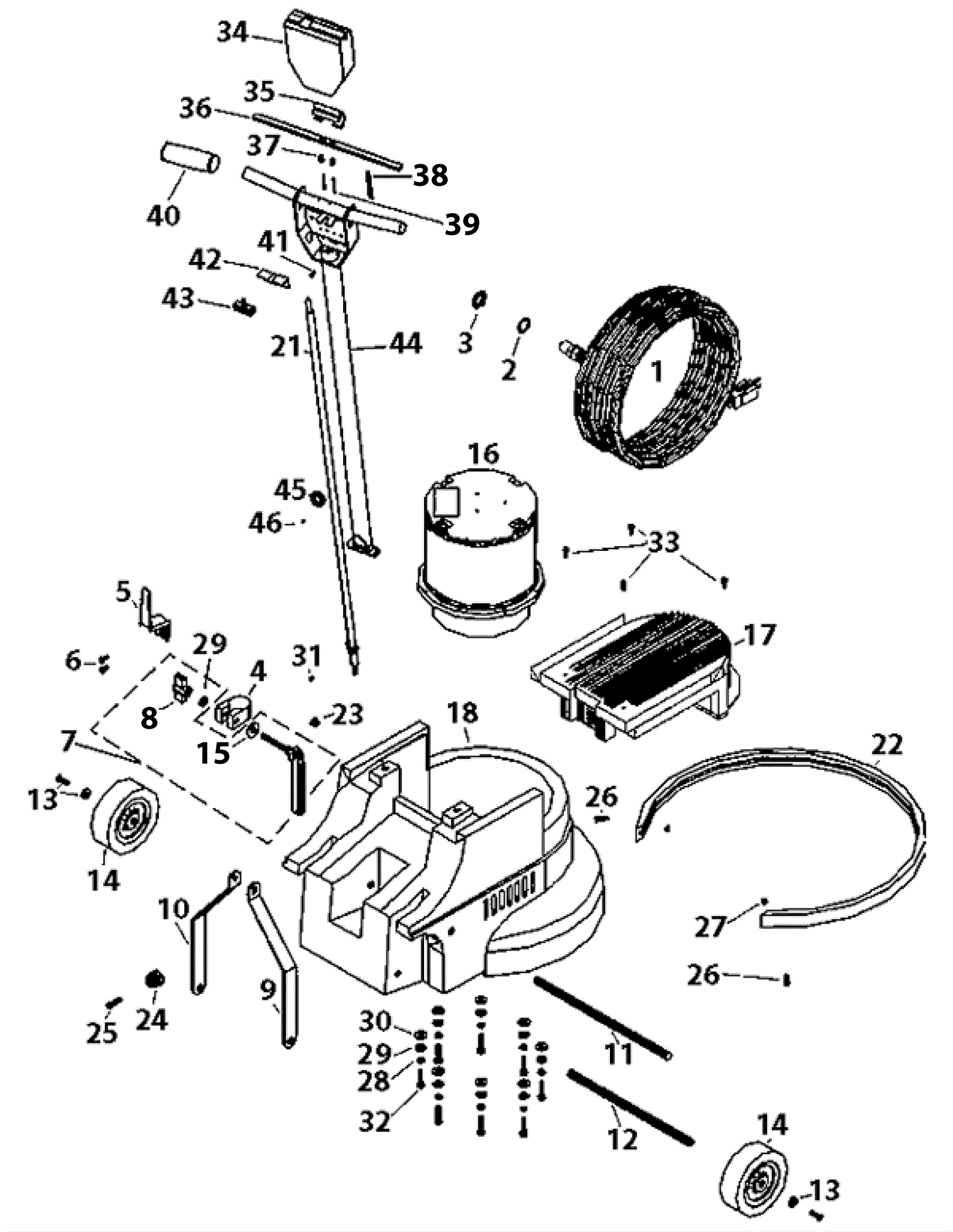

Complete Assembly

#PartDescription ReqNotesAvailability
1 190-1711 50 foot power cord (gray)
2 189-3047 Strain relief washer
3 216-0181 Nut 1/2 lock steel conduit
4 189-3012 Handle clamp collar
5 189-2978 Cord hook
6 189-2979 Screw 10-24 x 1/2 pan head phillips type f
7 190-0008 Handle clamp assembly
8 189-2981 Knob
9 190-0057 Right side handle brace with hole
10 190-0056 Left side handle brace with slot
11 189-8617 Pivot shaft
12 189-8618 Wheel axle
13a 999-0016 Washer 1/4 flat plain finish
13b 190-0265 Axle bolt
14 189-2987 5 inch wheel
15 189-3010 Oval washer
16 183-9047 Motor Assembly
17 190-0266 Motor cover
18a 190-1712 20 inch housing (black)
18b 190-1713 17 inch housing (black)
21 183-9049 14/2 in-line power cord
22 190-0672 Bumper (sold by the inch)
23 189-8625 Plug
24 190-0267 Bumper
25 999-0883 Screw 8 x 1 pan head phillips zinc plated
26 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel
27 190-0268 Spacer
28 190-0269 Washer 1/4 spring lock
29 999-0024 Washer 5/16 flat stainless steel
30 999-0120 Washer 3/8 SAE flat
31 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish
32 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel
33 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel
34 189-8626 Switch box cover
35 190-0060 Thumb actuation release
36 190-1322 Handle trigger
37 190-0062 Trigger tension spring
38 190-0063 Spring
39 190-0064 Handle roll pin
40 190-0270 Handle grip
41 190-0066 Washer lock
42 190-0067 Insulation sheet
43 190-0575 On/off switch
44 190-0271 Handle weldment
45 189-8627 Grommet
46 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish
N/S 190-0068 Capacitor (OBSOLETE)
N/S 190-1714 Capacitor start (OBSOLETE)
N/S 189-3037 60 MDF capacitor AC motor only
N/S 190-0076 Strain relief
N/S 190-0393 17amp circuit breaker
