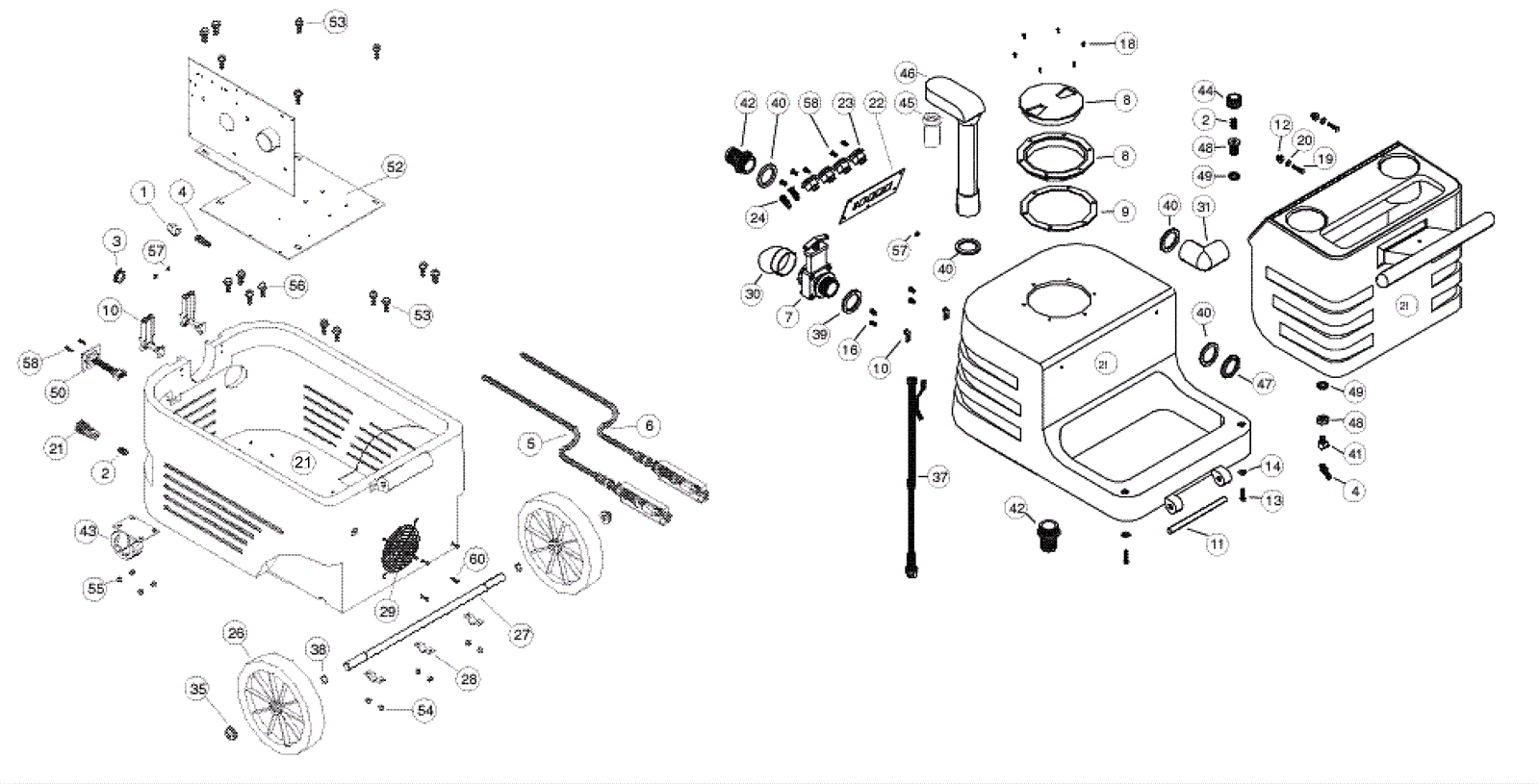

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
216-0207
|
Double thread female connector |
1 |
|
|
2 |
189-4337
|
1/4 Hex nipple |
1 |
|
|
3 |
190-0952
|
Hose clamp |
1 |
|
|
4a |
190-0907
|
Hose fitting |
1 |
|
|
5 |
216-0179
|
12/3 pigtail cord 39 inch |
1 |
|
|
6 |
190-1017
|
39 inch pigtail (red) |
1 |
|
|
7 |
189-2494
|
Dump valve |
1 |
|
|
9 |
190-0681
|
Lid gasket |
1 |
|
|
12 |
190-0953
|
Grommet |
2 |
|
|
13 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
|
17 |
190-0634
|
Nut |
1 |
|
|
18 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
6 |
|
|
19 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
23 |
189-4283
|
Switch rocker on/off |
3 |
|
|
24 |
190-0403
|
Neon light with lens |
1 |
|
|
25 |
190-0413
|
Indicator light (green) |
2 |
|
|
26b |
189-5326
|
Wheel (non marking) |
2 |
|
|
30 |
190-0570
|
Dump valve elbow |
1 |
|
|
31 |
189-2496
|
PVC drain elbow |
1 |
|
|
34 |
N/A
|
Not available |
1 |
|
|
39 |
190-9023
|
Gasket |
1 |
|
|
40 |
189-2486
|
Vac inlet gasket |
1 |
|
|
41a |
189-5324
|
45 degree elbow |
2 |
|
|
42 |
216-0068
|
Hose barb |
1 |
|
|
43a |
190-0924
|
3 inch caster assembly |
2 |
|
|
43b |
216-0067
|
Caster |
2 |
|
|
44a |
190-0926
|
Mesh screen filter |
1 |
|
|
44b |
216-0134
|
Pump filter |
1 |
|
|
45 |
216-0325
|
Float cage with ball |
1 |
|
|
46 |
190-0684
|
Vacuum tube |
1 |
|
|
47 |
190-0870
|
Nut lock |
1 |
|
|
48 |
189-4275
|
Fitting brass bulkhead 3/4 in |
1 |
|
|
50 |
190-0929
|
Receptacal molded wire |
1 |
|
|
51 |
216-0019
|
Quick disconnect valve |
1 |
|
|
54 |
190-0842
|
Nut |
1 |
|
|
55 |
190-0623
|
Nut |
1 |
|
|
57 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
58 |
190-0405
|
Nut nylon insert lock |
2 |
|
|
