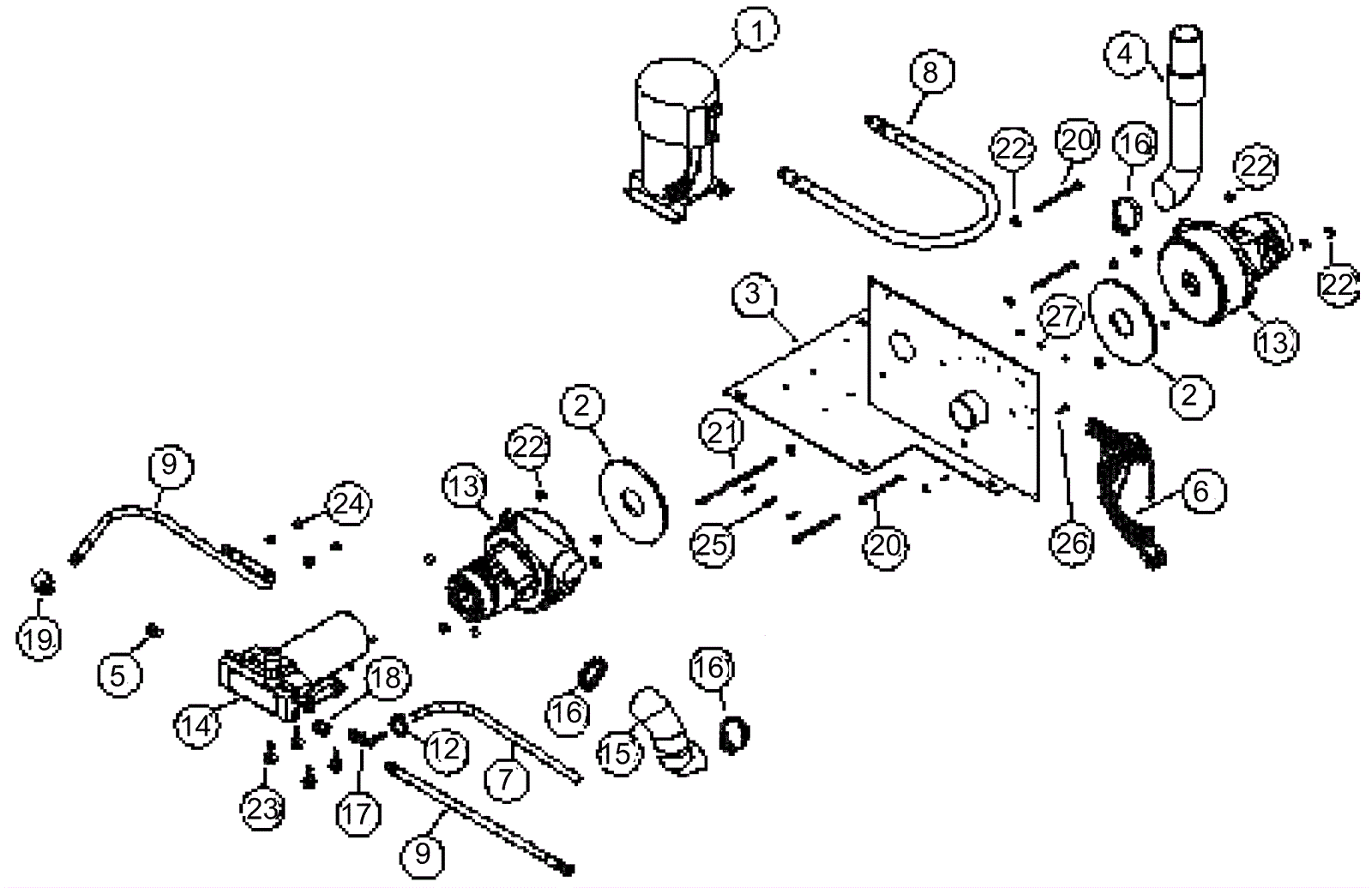

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
216-0171
|
Heater unit |
1 |
|
|
2 |
190-0054
|
Gasket |
1 |
|
|
4 |
190-0923
|
2 inch flexible hose |
1 |
|
|
7 |
189-5193
|
27 inch solution hose |
1 |
|
|
8 |
190-0917
|
36 inch heat pulse hose |
1 |
|
|
12 |
190-0952
|
Hose clamp |
1 |
|
|
13a |
190-0048
|
120V 2 stage vacuum motor |
1 |
|
|
13b |
216-0095
|
115V 2 stage vacuum motor |
1 |
|
|
14a |
190-0892
|
100psi pump |
1 |
|
|
14c |
189-5332
|
200PSI pump |
1 |
|
|
14d |
190-0236
|
500 PSI pump (blue) |
1 |
|
|
15 |
190-0923
|
2 inch flexible hose |
1 |
|
|
16 |
189-4290
|
2 1/4 inch hose clamp stainless steel |
3 |
|
|
17 |
190-0907
|
Hose fitting |
1 |
|
|
18 |
190-0894
|
Reducer |
1 |
|
|
19 |
190-1120
|
90 degree elbow |
1 |
|
|
22 |
190-1117
|
Nut |
4 |
|
|
24 |
190-0842
|
Nut |
4 |
|
|
27 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
8 |
|
|
