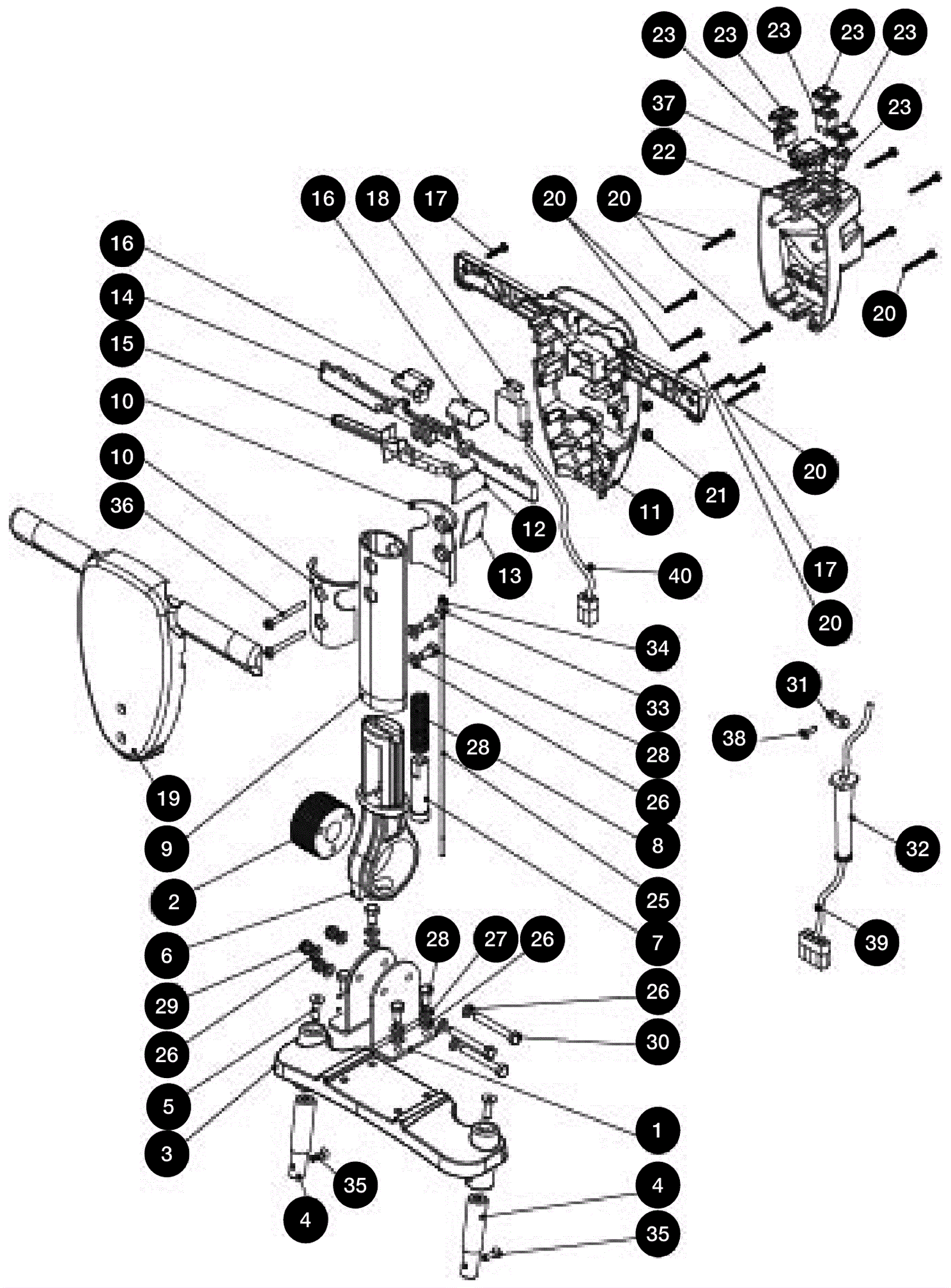

PAS14G Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-8095 Support Call for price 1 usually ships 14-19 days
2 183-1209 Handle adjustment gear $162.79 1 usually ships 15-28 days
3 190-0485 Handle mount $115.94 1 usually ships 1-5 days
4 190-8096 Pin Call for price 2 usually ships 14-19 days
5 190-8097 Screw M8 x 25 Call for price 2 usually ships 14-19 days
6 190-7079 Knuckle $46.92 1 usually ships 15-28 days
7 183-1210 Dog gear adjusting handle $52.79 1 usually ships 15-28 days
8 183-1197 Dog gear spring $15.39 1 usually ships 15-28 days
9 190-8098 Handle tube $50.03 1 usually ships 14-19 days
10 183-1207 Rubber handle boot $51.69 2 usually ships 15-28 days
11 183-2277 Control box back $19.79 1 usually ships 15-28 days
12a 190-8099 Solution trigger backing plate Call for price 1 (after 2019) usually ships 14-19 days
12b 190-7080 Trigger blanking plate $1.76 1 (before 2019) usually ships 15-28 days
13 183-1212 Blank handle socket plate $1.98 1 usually ships 15-28 days
14 190-1198 Trigger $5.06 2 usually ships 15-28 days
15 183-1204 Handle adjustment lever $3.52 1 usually ships 15-28 days
16 190-7077 Handle interlock $1.98 2 usually ships 15-28 days
17 183-1198 Screw self tapping $1.54 2 usually ships 15-28 days
18 190-1199 Switch $46.19 1 usually ships 15-28 days
19 183-2276 Control box front $19.79 1 usually ships 15-28 days
20 190-8100 Screw #10 x 1 3/4 $0.99 11 usually ships 14-19 days
21 190-8101 Nut Call for price 2 usually ships 14-19 days
22 190-8102 Operation panel $17.41 1 usually ships 14-19 days
23 190-8103 Push button kit $49.48 1 usually ships 14-19 days
25 190-8104 Adjusting gear rod $10.47 1 usually ships 14-19 days
26 190-8876 Washer Call for price 12 usually ships 15-28 days
27 190-8878 Washer Call for price 4 usually ships 15-28 days
28 190-8877 Screw $2.42 6 usually ships 15-28 days
29 190-8080 Nut Call for price 3 usually ships 14-19 days
30 190-8105 Screw M8 x 60 Call for price 3 usually ships 14-19 days
31 183-1217 Cable clamp $4.58 1 usually ships 15-28 days
32 190-8106 Cable strain relief $9.99 1 usually ships 14-19 days
33 190-8107 Washer $1.54 1 usually ships 14-19 days
34 190-8108 Nut $1.54 1 usually ships 14-19 days
35 190-8109 Screw M6 x 20 Call for price 2 usually ships 14-19 days
36a 190-8110 Screw M6 x 55 Call for price 2 (after 2019) usually ships 14-19 days
36b 183-1194 Screw M6 x 50mm pan head zinc plated $1.98 2 (before 2019) usually ships 15-28 days
37 190-8111 Battery level indicator $112.42 1 usually ships 14-19 days
38 183-1199 Screw M4.5 x 13mm $1.76 2 usually ships 15-28 days
39 190-8112 Power cord from handle to main board $80.91 1 usually ships 14-19 days
40 190-1737 Power cord from brush switch to handle $16.46 1 usually ships 15-28 days
