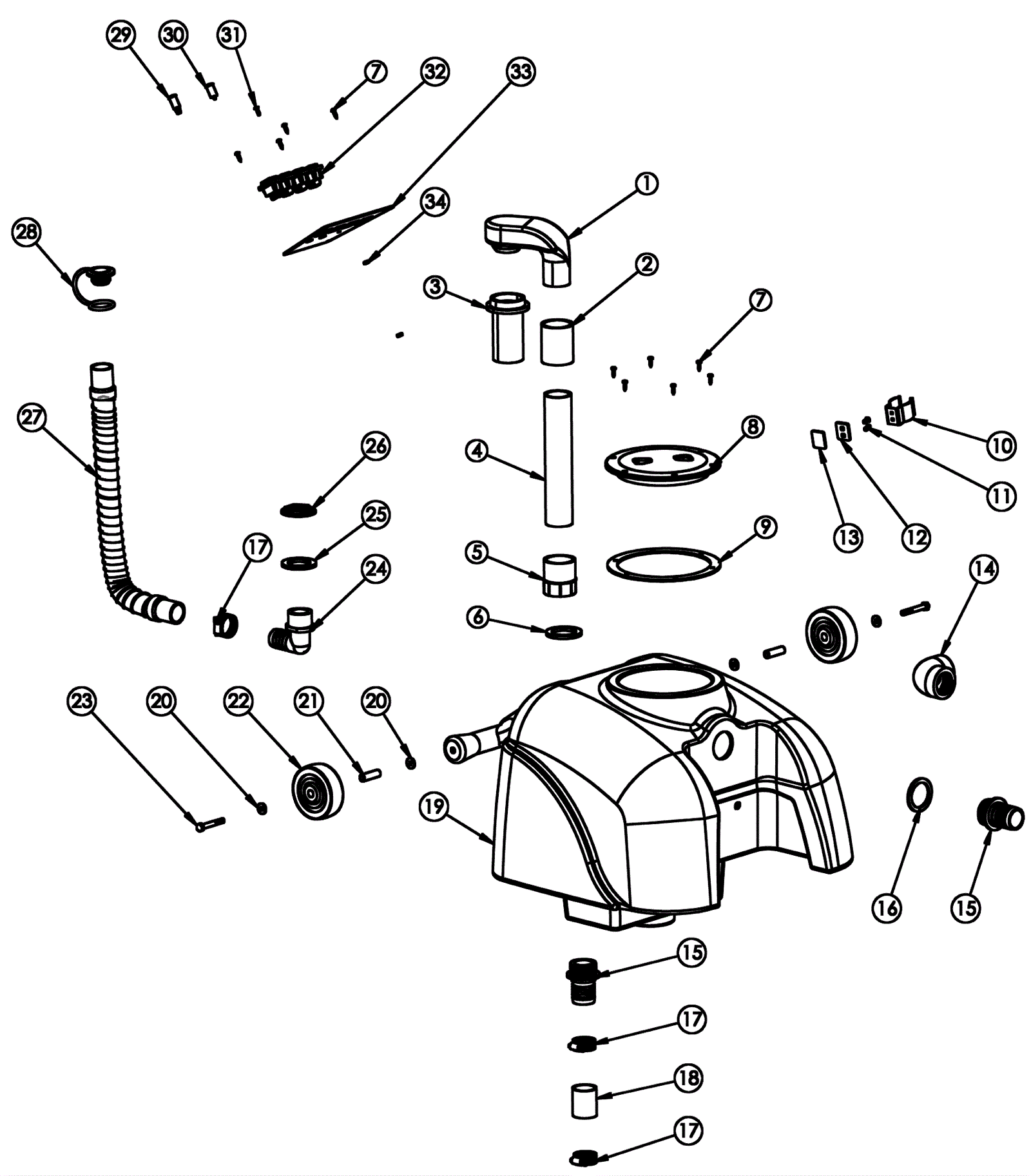

PFX 1380E Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0684 Vacuum tube $25.29 1 usually ships 14-18 days
2 216-0333 Coupling $5.50 1 usually ships 14-18 days
3 216-0325 Float cage with ball $63.79 1 usually ships 14-18 days
4 190-9020 PVC pipe $9.89 1 usually ships 14-18 days
5 216-0069 Coupler $8.79 1 usually ships 14-18 days
6 190-9023 Gasket $5.50 1 usually ships 14-18 days
7 216-0178 Screw #8 x 5/8 pan head phillips $3.95 10 usually ships 14-18 days
8 190-9018 6 inch clear tank lid $37.39 1 ships same day
9 190-0681 Lid gasket $13.19 1 usually ships 14-18 days
10 216-0128 Spring clip $8.79 1 usually ships 14-18 days
11 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
12 190-9026 Gasket nut plate $3.95 1 usually ships 14-18 days
13 190-9025 Nut plate clip $14.29 1 usually ships 14-18 days
14 189-2496 PVC drain elbow $15.90 1 usually ships 12-17 days
15 216-0068 Hose barb $5.27 2 usually ships 14-18 days
16 189-2486 Vac inlet gasket $5.27 1 ships same day
17 190-0873 Clamp $9.89 3 usually ships 14-18 days
18 216-0151 1 1/2 inch hose (sold by the inch) $2.63 1 usually ships 1-5 days
19 190-9004 Recovery tank housing $483.99 1 usually ships 14-18 days
20 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
21 216-0147 Spacer $9.89 2 usually ships 14-18 days
22 216-0341 Wheel (black) $15.39 2 usually ships 14-18 days
23 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
24 190-9030 Nylon elbow $15.39 1 usually ships 14-18 days
25 190-9024 Gasket 1 1/4 fitting $5.27 1 usually ships 14-18 days
26 190-9031 Nut 1 1/4 lock $7.69 1 usually ships 14-18 days
27 216-0149 Drain hose $9.89 1 ships same day
28 190-0215 Drain hose plug $14.29 1 ships same day
29 190-0403 Neon light with lens $17.59 1 usually ships 14-18 days
30 190-0413 Indicator light (green) $18.69 1 usually ships 14-18 days
31 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
32 190-1800 On/off switch $8.79 4 usually ships 14-18 days
33 190-9022 Switch panel (heated) $34.09 1 usually ships 14-18 days
34 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
