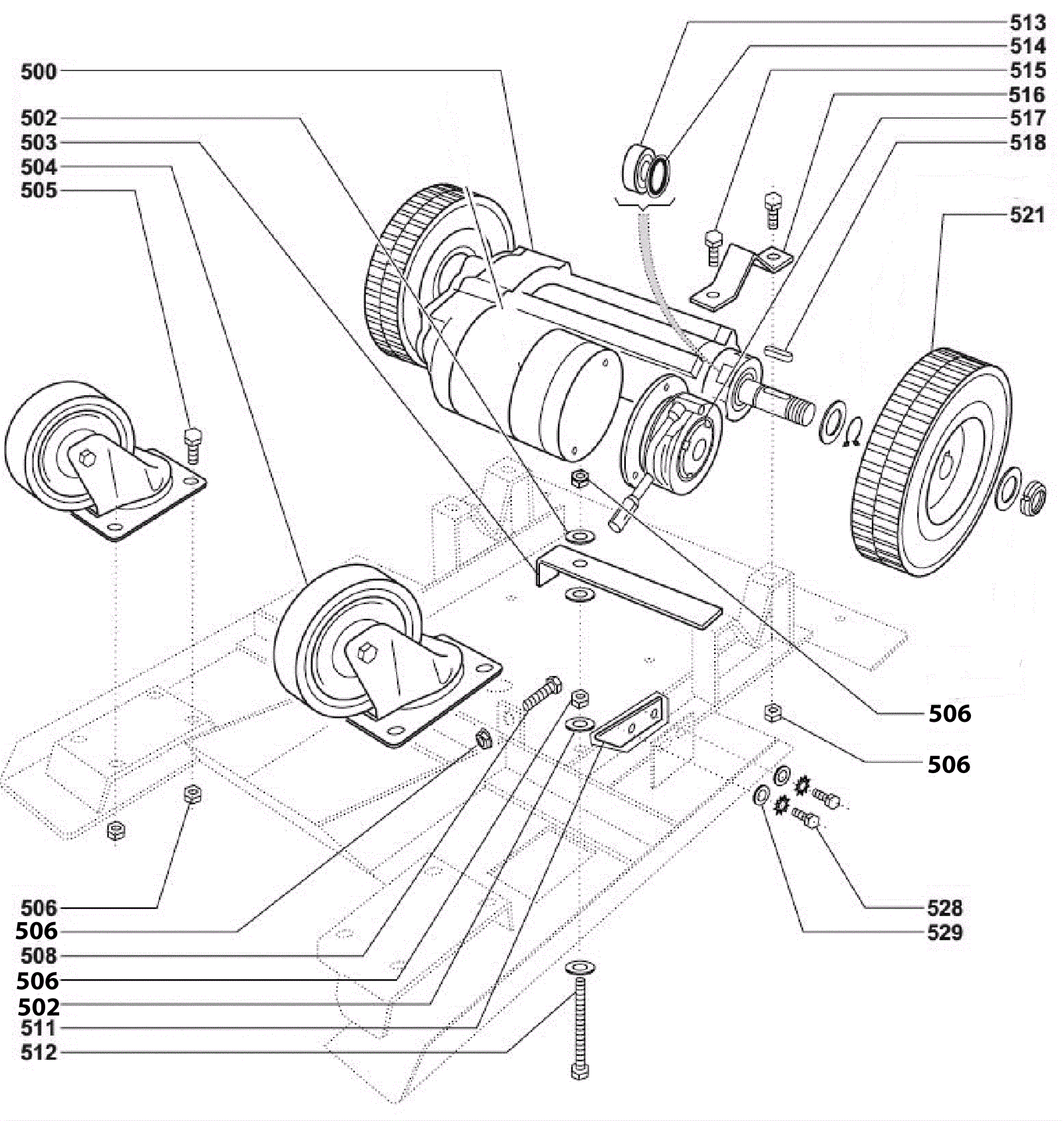

| # | Part | Description | Price | Req | Notes | Availability |
|---|
500 |
190-8023
|
24V drive motor and transaxle assembly |
$4,465.51
|
1 |
|
usually ships 14-19 days |
502 |
N/A
|
Not available |
Call for price
|
2 |
(washer) |
usually ships 3-26 days |
503 |
N/A
|
Not available |
Call for price
|
1 |
(lever) |
usually ships 3-26 days |
504 |
190-1480
|
Swivel caster wheel |
$148.70
|
2 |
|
usually ships 15-28 days |
505 |
N/A
|
Not available |
Call for price
|
1 |
(screw) |
usually ships 3-26 days |
506 |
190-0814
|
Nut |
$5.50
|
5 |
|
usually ships 15-28 days |
508 |
N/A
|
Not available |
Call for price
|
1 |
(screw) |
usually ships 3-26 days |
511 |
190-0741
|
Brush bracket |
$34.24
|
1 |
|
usually ships 15-28 days |
512 |
N/A
|
Not available |
Call for price
|
1 |
(screw) |
usually ships 3-26 days |
513 |
189-2995
|
Bearing |
$17.68
|
1 |
|
usually ships 14-27 days |
514 |
190-8024
|
Seal ring |
$28.99
|
1 |
|
usually ships 15-28 days |
515 |
190-8020
|
Screw |
$5.50
|
1 |
|
usually ships 14-19 days |
516 |
190-0721
|
Yoke |
Call for price
|
1 |
|
usually ships 15-28 days |
517 |
190-8025
|
Electric brake |
$666.57
|
1 |
|
usually ships 15-28 days |
518 |
190-0801
|
Pin |
$21.22
|
1 |
|
usually ships 15-28 days |
521 |
190-1479
|
Front wheel |
$235.09
|
2 |
|
usually ships 15-28 days |
528 |
N/A
|
Not available |
Call for price
|
1 |
(washer) |
usually ships 3-26 days |
529 |
N/A
|
Not available |
Call for price
|
1 |
(washer) |
usually ships 3-26 days |
