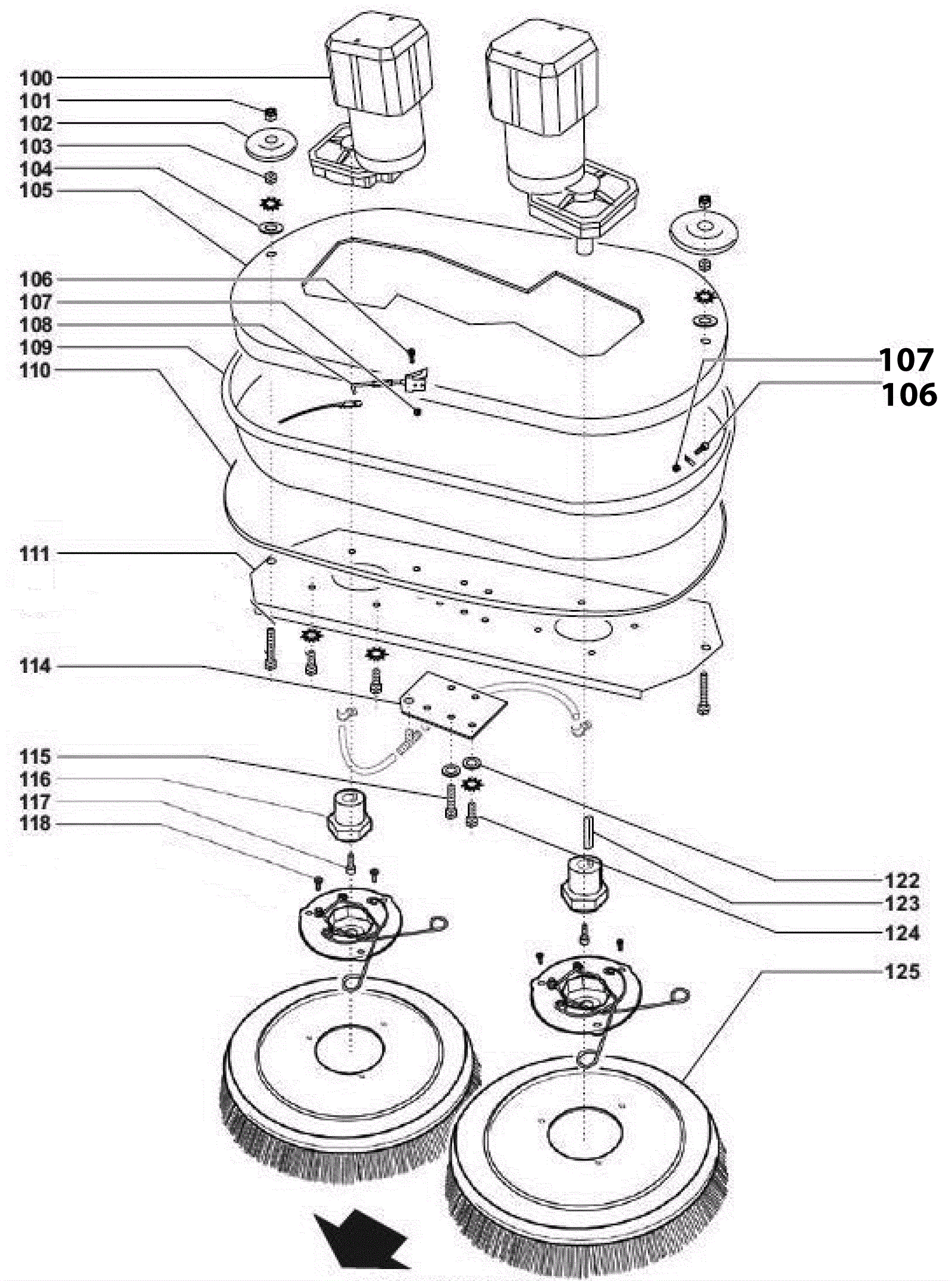

PAS28DX Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
100 190-0709 Motor reducer $2,476.84 2 usually ships 15-28 days
101 190-0425 Nut $5.24 2 usually ships 1-5 days
102 190-0424 Buffer wheel $33.46 1 usually ships 15-28 days
103 N/A Not available Call for price 2 (nut) usually ships 3-26 days
104 N/A Not available Call for price 2 (washer) usually ships 3-26 days
105 N/A Not available Call for price 1 (brush housing cover plate) usually ships 3-26 days
106 190-0213 Screw $1.35 2 usually ships 1-5 days
107 190-0482 Nut $2.54 2 usually ships 1-5 days
108 190-0212 Hook and latch assembly $54.03 1 usually ships 15-28 days
109 190-0480 Splash guard $172.43 1 usually ships 15-28 days
110 190-0481 Splash guard band $95.56 1 usually ships 15-28 days
111 N/A Not available Call for price 1 (brush motor plate) usually ships 3-26 days
114 190-8019 Plate $13.89 1 usually ships 14-19 days
115 190-8020 Screw $5.50 1 usually ships 14-19 days
116 190-0704 Coupling joint $90.28 2 usually ships 15-28 days
117 N/A Not available Call for price 1 (screw) usually ships 3-26 days
118 N/A Not available Call for price 1 (screw) usually ships 3-26 days
122 190-0813 Washer $5.28 1 usually ships 15-28 days
123 190-8021 Key 6 x 6 x 30 $17.03 2 usually ships 14-19 days
124 190-8022 Screw $9.27 1 usually ships 14-19 days
125a 996-1421 Polypropelene scrubbing brush $188.52 2 usually ships 1-5 days
125b 996-1464 Medium grit scrubbing brush - 180 grit $633.40 2 usually ships 1-5 days
125c 996-1465 Lite grit scrubbing brush - 500 grit $1,041.92 2 usually ships 1-5 days
