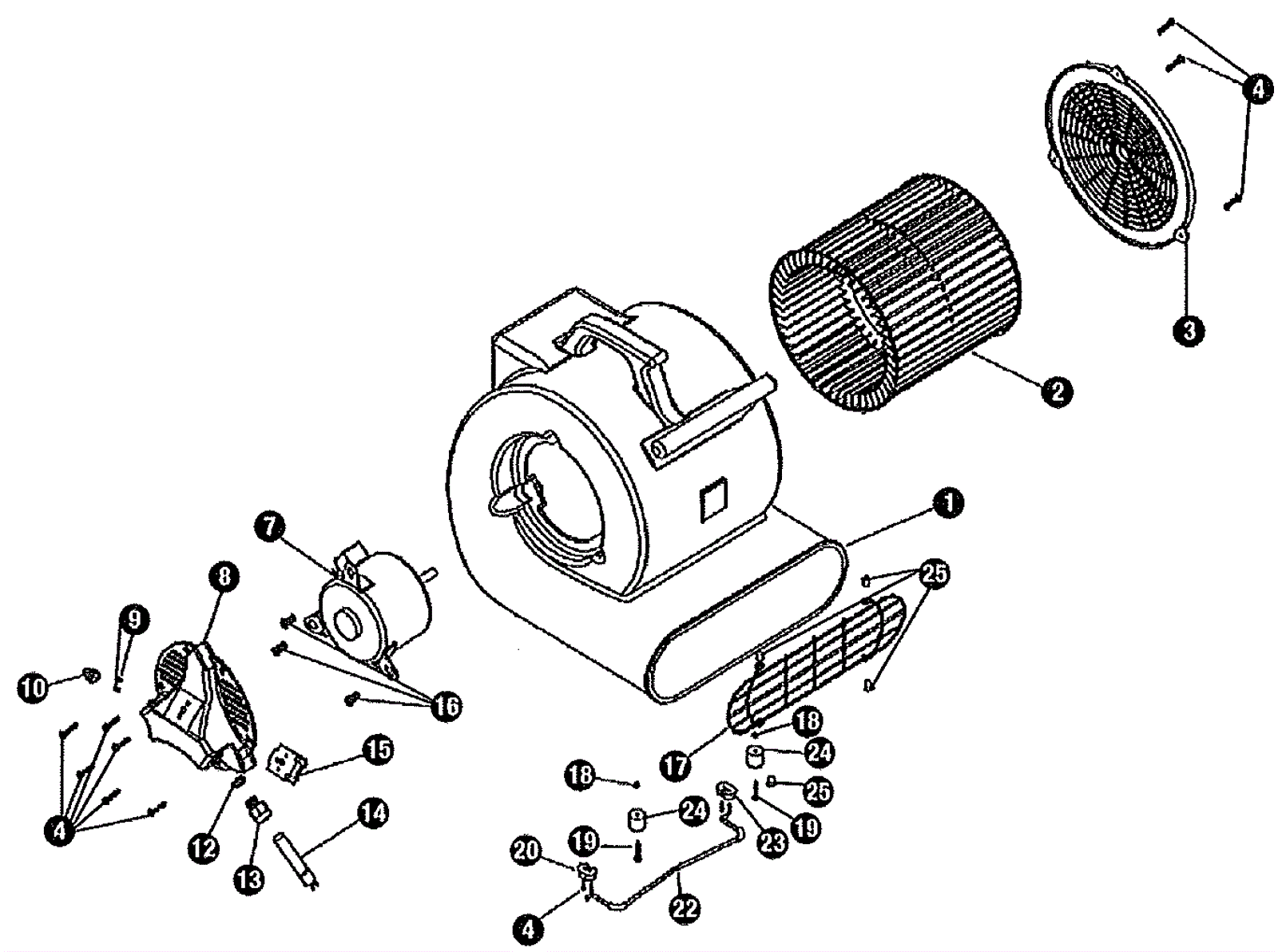

PD750 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-0250 Dryer housing (OBSOLETE) $110.44 1 usually ships 15-28 days
2 190-0237 Squirrel cage with lock nut $64.35 1 ships same day
3 190-0249 Intake panel $44.45 1 ships same day
4 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal $0.99 11 ships same day
7 190-0562 3/4 HP dryer motor (OBSOLETE) $172.51 1 usually ships 15-28 days
8 190-0257 Motor control panel $7.47 1 usually ships 15-28 days
9 999-1538 Screw M4-.7 x 6mm flat head phillips $0.90 2 usually ships 1-5 days
10 190-0258 Switch knob $1.30 1 ships same day
12 190-0938 Cord protector $20.70 1 usually ships 15-28 days
13 216-0173 Strain relief $6.59 1 usually ships 1-5 days
14a 183-0563 16/3 power cord 20 foot $64.89 1 (oem) usually ships 15-28 days
14b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (non-oem) usually ships 11-15 days
15 183-7483 3 speed rotary switch $13.71 1 ships same day
16 190-0254 Screw 3/8-16 x 1/2 $1.30 3 usually ships 1-5 days
17 190-0259 Grill $8.79 1 ships same day
18 190-8000 Keps nut Call for price 2 usually ships 14-19 days
19 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
20 190-0261 Left side foot $3.26 1 usually ships 15-28 days
22 190-0262 Kickstand $7.69 1 usually ships 15-28 days
23 190-0260 Right side foot $3.26 1 usually ships 15-28 days
24 190-0030 Rubber foot (black) (new style) $1.32 2 ships same day
25 190-0565 3/16 inch rivet (black) $3.34 4 usually ships 1-5 days
