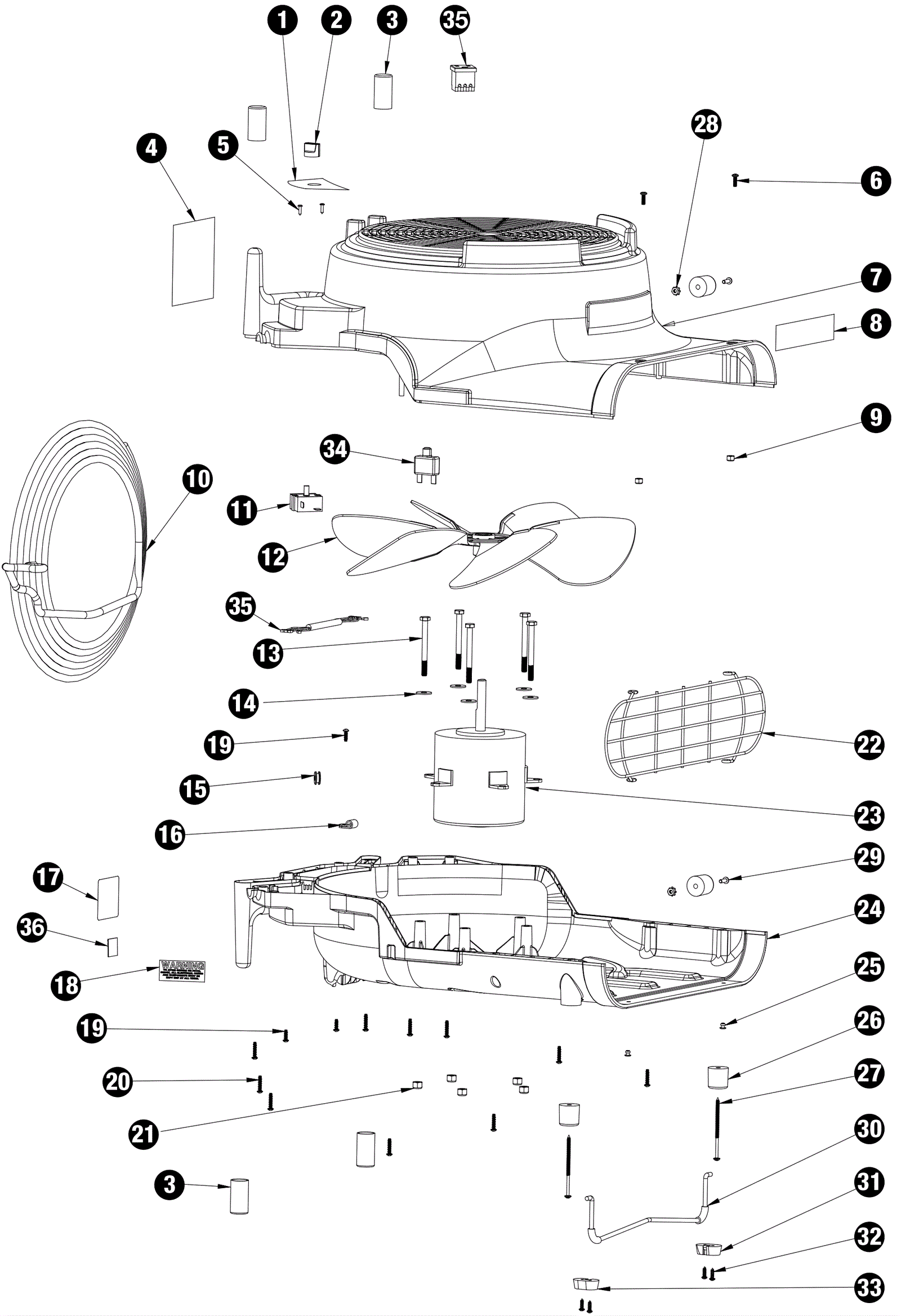

HYBRID Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-4834 Switch decal $0.55 1 usually ships 10-27 days
2 190-0258 Switch knob $1.30 1 ships same day
3 183-4835 Cap $1.30 4 usually ships 10-27 days
4 183-4833 Warning decal $3.34 1 usually ships 10-27 days
5 999-1538 Screw M4-.7 x 6mm flat head phillips $0.99 2 usually ships 1-5 days
6 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
7 183-4828 Top housing $55.98 1 usually ships 10-27 days
8 183-4832 Front decal $0.55 1 usually ships 10-27 days
9 190-9304 Lock nut $1.30 2 usually ships 10-27 days
10a 190-1752 14/3 dryer cord $46.85 1 (OEM) usually ships 10-27 days
10b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
11 183-7483 3 speed rotary switch $13.71 1 ships same day
12 190-0976 Fan blade $26.39 1 ships same day
13 183-4829 Bolt 1/4-20 x 2 3/4 inch $1.30 5 usually ships 10-27 days
14 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
15 183-4837 Rubber gromet $1.69 1 usually ships 10-27 days
16 183-4825 Cable clamp $1.30 1 usually ships 10-27 days
17 190-0616 Serial number decal $1.30 1 usually ships 1-5 days
18 190-0896 Warning decal $0.73 1 usually ships 10-27 days
19 190-0647 Screw $1.30 3 usually ships 1-5 days
20 190-0608 Screw 8-18 3/4 $1.30 10 usually ships 1-5 days
21 190-0842 Nut $1.30 5 usually ships 10-27 days
22 190-0259 Grill $8.79 1 ships same day
23 183-4826 Motor $152.31 1 usually ships 10-27 days
24 183-4827 Bottom housing $60.38 1 usually ships 10-27 days
25 190-0565 3/16 inch rivet (black) $3.34 2 usually ships 1-5 days
26 190-0030 Rubber foot (black) (new style) $1.32 2 (qty 4 for PDH2) ships same day
27 183-4830 Screw $1.30 2 usually ships 10-27 days
28 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
29 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
30 190-0262 Kickstand $7.69 1 (PDH2 only) usually ships 10-27 days
31 190-0261 Left side foot $3.26 1 (PDH2 only) usually ships 10-27 days
32 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal $0.99 4 (PDH2 only) ships same day
33 190-0260 Right side foot $3.26 1 (PDH2 only) usually ships 10-27 days
34 190-1754 9amp circuit breaker $1.95 1 (PDH2 only) usually ships 10-27 days
35 190-1755 Wiring harness $53.38 1 usually ships 10-27 days
36 190-0657 Made in the USA decal $1.30 1 usually ships 10-27 days
