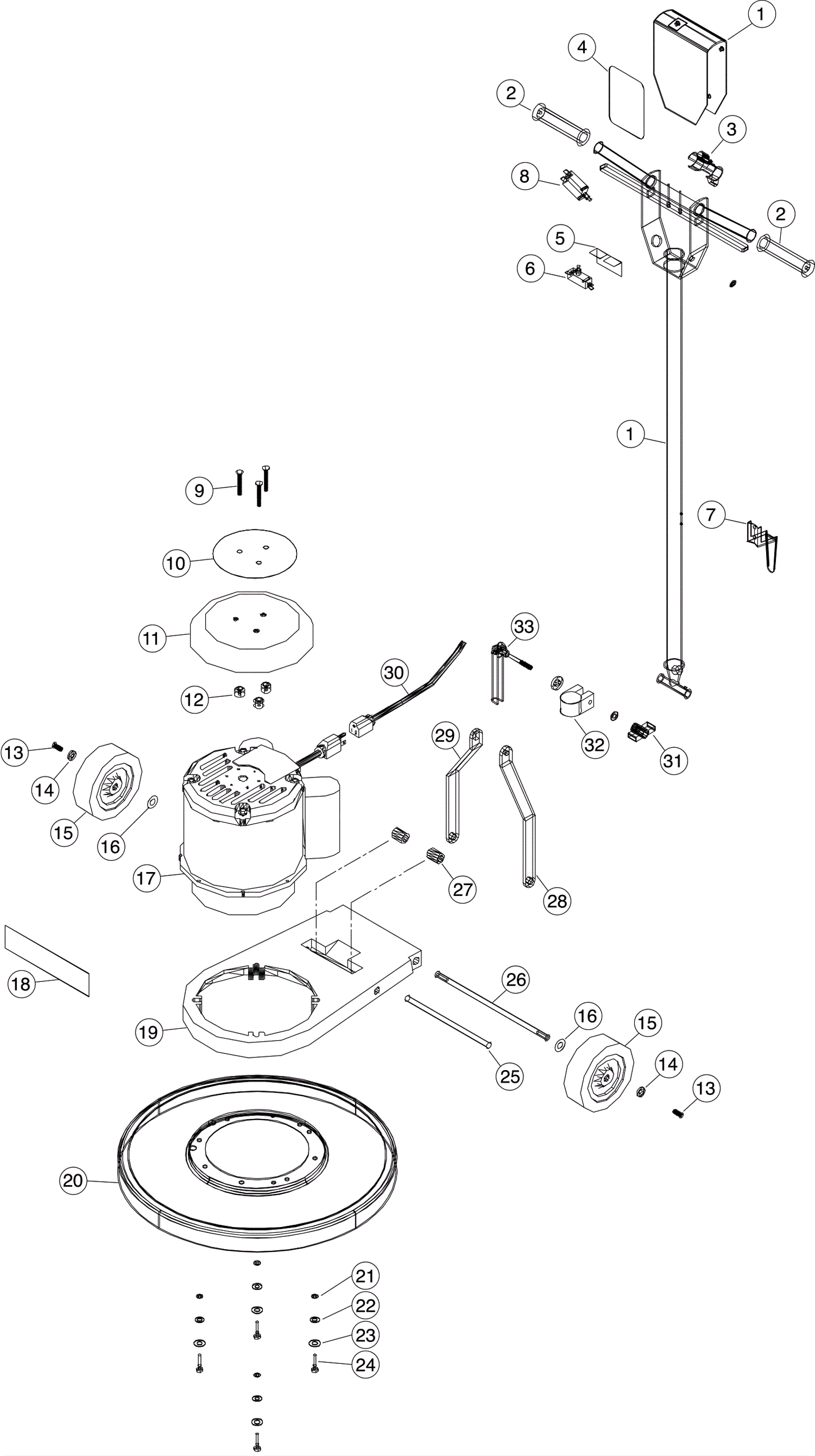

C171 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1a 190-0271 Handle weldment $217.79 1 usually ships 10-27 days
1b 190-1446 Handle assembly $397.49 1 (includes 1a-7) ships same day
2 190-0270 Handle grip $14.29 2 usually ships 10-27 days
3 190-0060 Thumb actuation release $1.30 1 usually ships 10-27 days
4 190-9899 Handle logo decal Call for price 1 usually ships 10-27 days
5 190-0067 Insulation sheet $2.11 1 usually ships 10-27 days
6 190-0575 On/off switch $15.39 1 usually ships 10-27 days
7 189-2978 Cord hook $20.63 1 usually ships 11-24 days
8a 190-0075 15amp Circuit breaker $1.35 1 (C131-7, C171 and C201) usually ships 10-27 days
8b 190-0393 17amp circuit breaker $2.42 1 (C17HD and C201HD) ships same day
9 183-4726 Screw 10-32 x 1 flat head phillips stainless steel $1.30 3 usually ships 10-27 days
10a 190-9914 13 inch motor decal Call for price 1 usually ships 10-27 days
10b 190-9915 17 inch motor decal $6.91 1 usually ships 10-27 days
10c 190-9916 20 inch motor decal $12.64 1 usually ships 10-27 days
10d 190-9917 17 inch motor decal 1 1/2 hp $5.50 1 usually ships 10-27 days
10e 190-9918 20 inch motor decal 1 1/2 hp $5.50 1 usually ships 10-27 days
10f 190-9900 Dual speed decal $5.42 1 (C202) usually ships 10-27 days
11 183-9031 Motor cover $57.19 1 usually ships 1-5 days
12 190-9902 Motor cover spacer $2.05 3 usually ships 10-27 days
13 190-0265 Axle bolt $1.30 2 usually ships 10-27 days
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 189-2987 5 inch wheel $18.69 2 ships same day
16 189-2984 Spring washer $1.30 2 ships same day
17a 183-9047 Motor Assembly $1,035.09 1 (C171HD and C201HD) usually ships 8-21 days
17b 190-9919 120 1hp motor $744.24 1 (C131-7, C171 and C201) usually ships 10-27 days
17c 190-9903 2 speed motor assembly with gearbox $1,171.25 1 (C202) usually ships 10-27 days
18 190-0881 Powr-flite decal $4.39 1 usually ships 10-27 days
19 190-9904 Motor base $173.79 1 usually ships 10-27 days
20a 190-9905 13 inch brush cover with bumper $203.65 1 usually ships 10-27 days
20b 183-4724 17 inch brush housing and bumper $254.16 1 usually ships 10-27 days
20c 190-9906 20 inch brush cover with bumper $298.09 1 usually ships 10-27 days
21 190-0269 Washer 1/4 spring lock $1.30 4 ships same day
22 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
23 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
24 183-4725 Screw 14-20 x 1 3/4 $1.30 4 usually ships 10-27 days
25 183-9040 Pivot pin $5.19 1 usually ships 1-5 days
26 190-9908 Wheel axle $14.29 1 usually ships 10-27 days
27 190-9909 Handle spacer $2.38 2 usually ships 10-27 days
28 190-0056 Left side handle brace with slot $12.66 1 usually ships 10-27 days
29 190-0057 Right side handle brace with hole $12.47 1 usually ships 10-27 days
30 190-9910 14/3 4 foot cord (black) $28.59 1 usually ships 10-27 days
31 189-2981 Knob $8.91 1 ships same day
32 189-3012 Handle clamp collar $36.93 1 usually ships 11-24 days
33 190-1144 Cam lever assembled $23.09 1 ships same day
N/S 190-9911 2 speed motor screen $7.85 1 usually ships 10-27 days
N/S 190-9912 Spring $2.55 1 usually ships 10-27 days
N/S 190-0272 Switch $21.77 1 usually ships 10-27 days
N/S 189-8628 Insulation switch boot $3.11 1 usually ships 10-27 days
N/S 190-0820 2 speed motor controller $223.54 1 usually ships 10-27 days
N/S 190-0106 Rectifier $33.73 1 usually ships 1-5 days
N/S 190-0272 Switch $21.77 1 usually ships 10-27 days
N/S 190-9913 14/3 50 foot power cord assembly Call for price 1 usually ships 10-27 days
