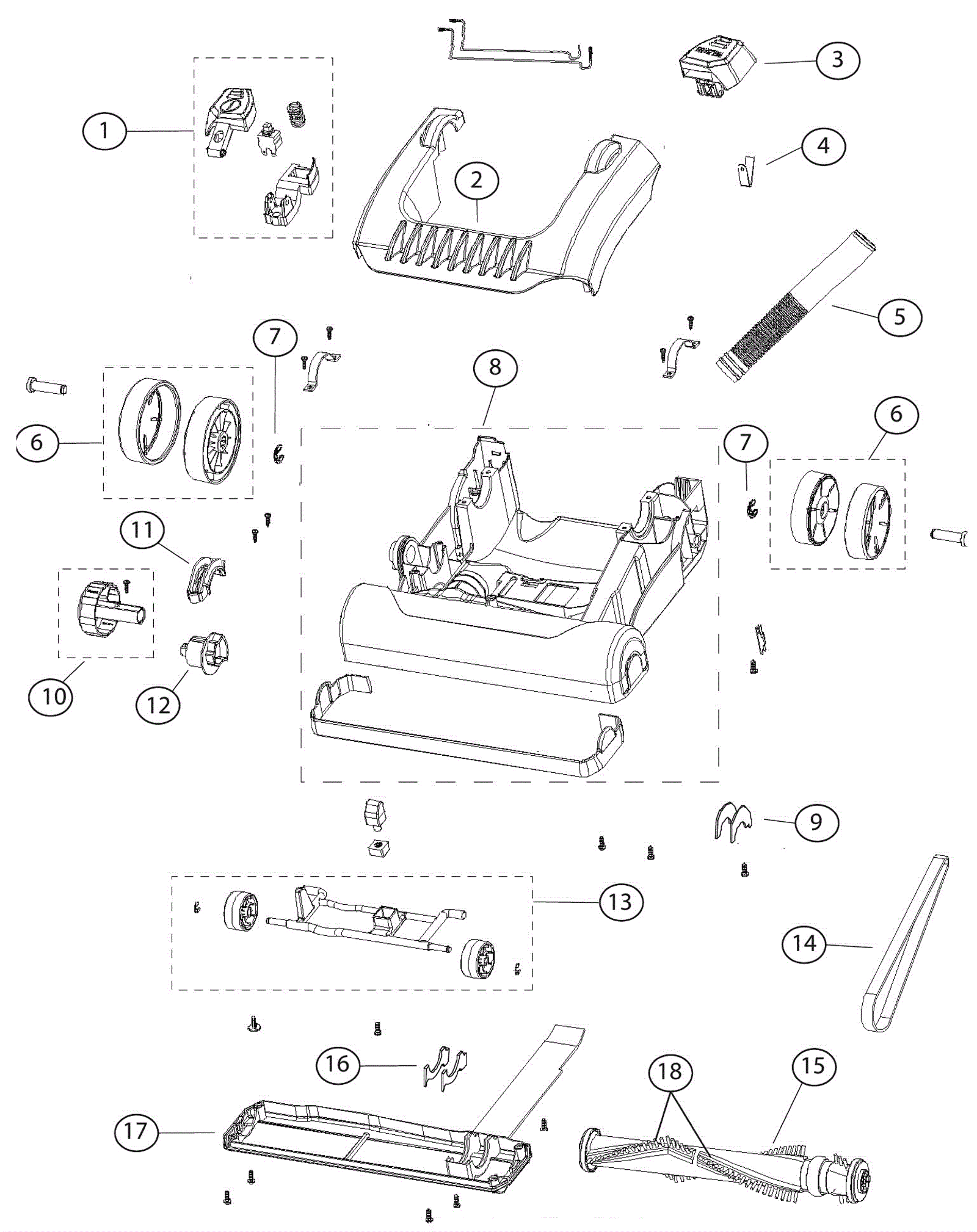

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-8922
|
On/off switch pedal (black) |
1 |
|
|
2 |
190-8923
|
Nozzle cover (green) |
1 |
|
|
3 |
190-8924
|
Handle release button (black) |
1 |
|
|
4 |
190-8925
|
Handle release spring |
1 |
|
|
5 |
190-8926
|
Nozzle inlet tube |
1 |
|
|
6 |
190-8927
|
Rear wheel assembly |
2 |
|
|
7 |
190-8928
|
Rear wheel e clip |
2 |
|
|
8 |
190-8929
|
Basetray with furniture guard |
1 |
|
|
9 |
190-8930
|
Upper agitator seal |
1 |
|
|
10 |
190-8931
|
Height adjustment knob (black) |
1 |
|
|
11 |
190-8932
|
Height adjustment plate |
1 |
|
|
12 |
190-8933
|
Height adjustment axle |
1 |
|
|
13 |
190-8934
|
Height adjustment frame assembly |
1 |
|
|
14 |
190-8935
|
Belt |
1 |
|
|
15 |
190-8936
|
Metal agitator |
1 |
|
|
16 |
190-8937
|
Lower agitator seal |
1 |
|
|
17 |
190-8938
|
Baseplate |
1 |
|
|
18 |
190-8939
|
Brush strip (set of 2) |
2 |
|
|
