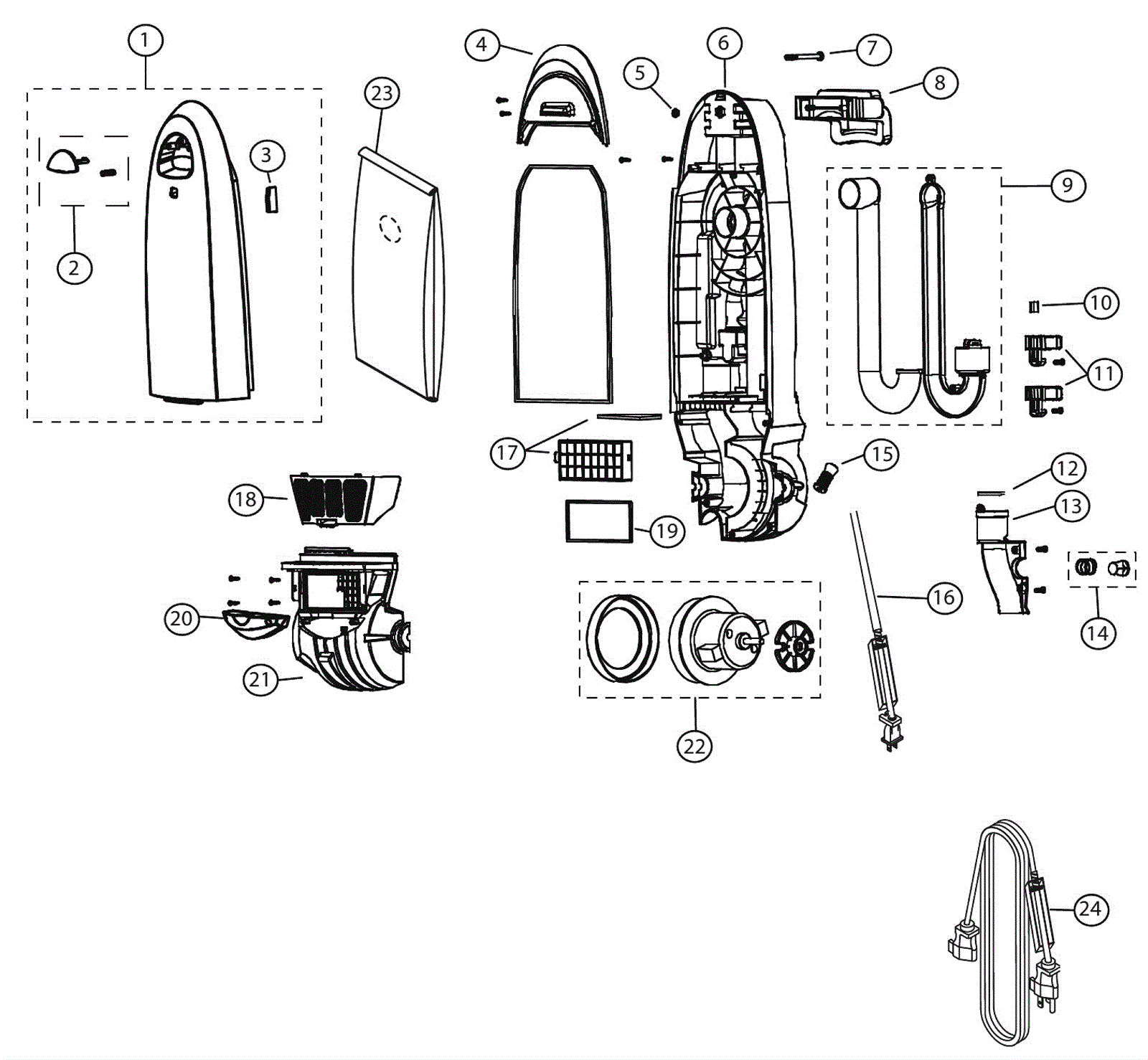

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-8900
|
Dust cover assembly (green) |
1 |
(includes 2-3) |
|
2 |
190-8901
|
Dust cover latch with spring |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(only available with 1) |
|
4 |
190-8902
|
Cover plate (black) |
1 |
|
|
5 |
190-8903
|
Handle nut |
1 |
|
|
6 |
190-8904
|
Dust compartment |
1 |
|
|
7 |
190-8905
|
Handle bolt |
1 |
|
|
8 |
190-8906
|
Carrying handle (black) |
1 |
|
|
9 |
190-8907
|
Airpath assembly |
1 |
|
|
10 |
190-8908
|
Upper crevice tool clip |
1 |
|
|
11 |
190-8909
|
Lower tool clip |
2 |
|
|
12 |
190-8910
|
Wand Inlet Tube Seal |
1 |
|
|
13 |
190-8911
|
Wand inlet tube |
1 |
|
|
14 |
190-8913
|
Pressure relief valve |
1 |
|
|
15 |
190-8912
|
Cord strain relief |
1 |
|
|
16 |
190-8914
|
1.8 ft power cord pigtail with cord clamp |
1 |
|
|
17 |
190-8915
|
Filter set |
1 |
|
|
18 |
190-8916
|
Filter cover (green) |
1 |
|
|
19 |
190-8917
|
HEPA filter seal |
1 |
|
|
20 |
190-8918
|
Lens cover (green) |
1 |
|
|
21 |
190-8919
|
Motor cover (green) |
1 |
|
|
22 |
190-8920
|
10A motor assembly |
1 |
|
|
23 |
190-0337
|
HEPA bag (pkg of 6) |
1 |
|
|
24a |
190-8921
|
40 foot power cord |
1 |
|
|
24b |
991-5100
|
18/3 power cord 40 foot (blue) |
1 |
|
|
