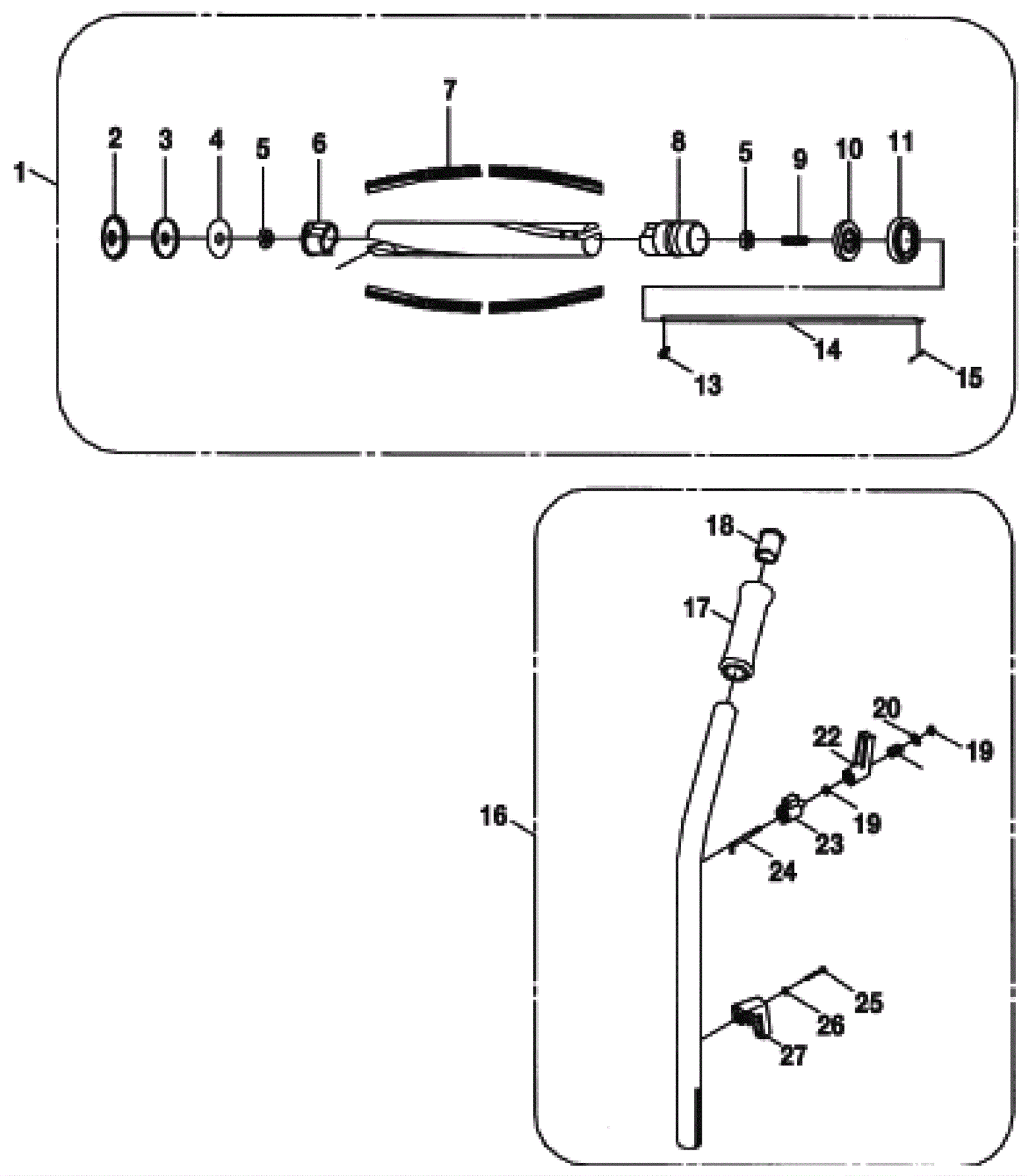

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-9806
|
Brush roll assembly (OBSOLETE) |
1 |
(includes 2-15) |
|
2 |
190-9807
|
Left hand rubber end cap cover |
1 |
|
|
3 |
190-9808
|
End cap left |
1 |
|
|
4 |
190-9809
|
Felt cover |
1 |
|
|
5 |
190-9810
|
Agitator bearing |
1 |
|
|
6 |
190-9813
|
Agitator pulley |
1 |
|
|
7 |
190-9812
|
Brush strip |
1 |
|
|
8 |
190-9813
|
Agitator pulley |
1 |
|
|
9 |
190-9814
|
Spacing spring |
1 |
|
|
10 |
190-9815
|
End cap right pulley side |
1 |
|
|
11 |
190-9816
|
Rubber end cap cover right |
1 |
|
|
13 |
190-9818
|
Spring clip (OBSOLETE) |
1 |
|
|
14 |
190-9819
|
Agitator shaft |
1 |
|
|
15 |
190-9803
|
4mm E-clip |
1 |
|
|
16 |
190-9820
|
Handle assembly household |
1 |
(includes 17-27) |
|
17 |
190-9821
|
Foam grip |
1 |
|
|
18 |
190-9822
|
Handle cap |
1 |
|
|
19 |
190-9823
|
Nut for L blot |
1 |
|
|
20 |
190-9824
|
Cord hook washer |
1 |
|
|
21 |
190-9825
|
Cord hook spring |
1 |
|
|
22 |
190-9826
|
Cord hook upper household |
1 |
|
|
23 |
190-9827
|
Cord hook Holder household |
1 |
|
|
24 |
190-9828
|
L bolt |
1 |
|
|
25 |
190-9829
|
Screw for lower cord hook |
1 |
|
|
26 |
190-9830
|
Lock washer |
1 |
|
|
27 |
190-9831
|
Lower cord hook |
1 |
|
|
N/S |
N/A
|
Not available |
1 |
(Agitator core) |
|
