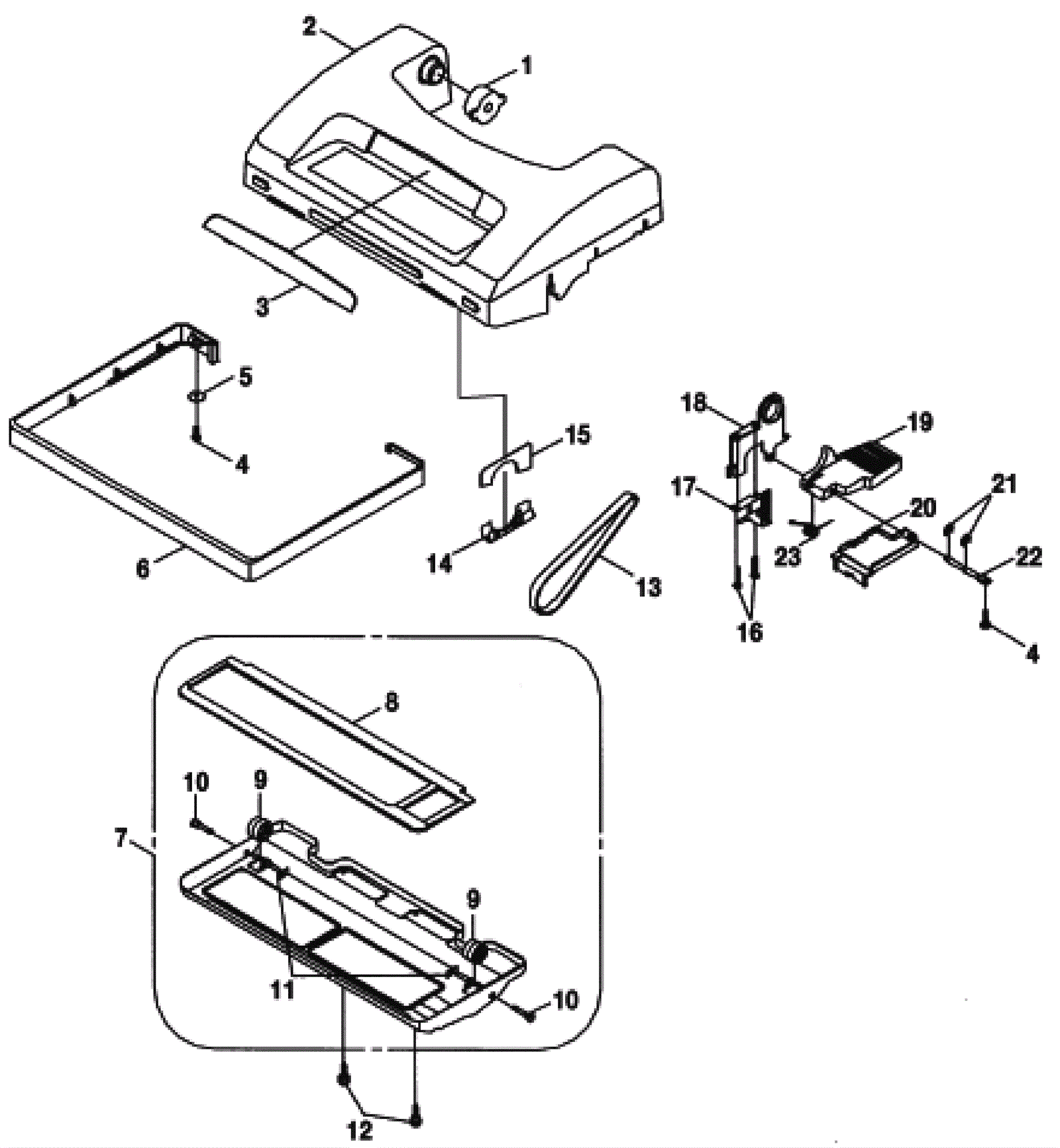

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
190-9783
|
Plastic Sleeve bushing |
1 |
|
|
2 |
190-9784
|
Nozzle housing cover (OBSOLETE) |
1 |
|
|
3 |
190-9785
|
Nozzle lens |
1 |
|
|
4 |
190-9786
|
Screw |
1 |
|
|
5 |
190-9787
|
Washer |
1 |
|
|
6 |
190-9788
|
Furniture guard black |
1 |
|
|
7 |
190-9789
|
Bottom plater assembly |
1 |
(includes 8-12) |
|
8 |
190-9790
|
Bottom plate gasket |
1 |
|
|
9 |
190-9791
|
24.5mm Base plate wheel |
1 |
|
|
10 |
190-9792
|
Base plate wheel pin |
1 |
|
|
11 |
190-9793
|
Push on spring nut |
1 |
|
|
12 |
190-9794
|
Bottom plate screw |
1 |
|
|
13 |
190-9795
|
Belt |
1 |
|
|
14 |
190-9796
|
Vented support fitting |
1 |
|
|
15 |
190-9797
|
Felt packing top |
1 |
|
|
16 |
190-9798
|
Screw |
1 |
|
|
17 |
190-9799
|
Belt guard |
1 |
|
|
18 |
190-9800
|
Pedal frame |
1 |
|
|
19 |
190-9801
|
Foot pedal black |
1 |
|
|
20 |
190-9802
|
Belt cover rear |
1 |
|
|
21 |
190-9803
|
4mm E-clip |
1 |
|
|
22 |
190-9804
|
Pedal shaft |
1 |
|
|
23 |
190-9805
|
Pedal spring |
1 |
|
|
