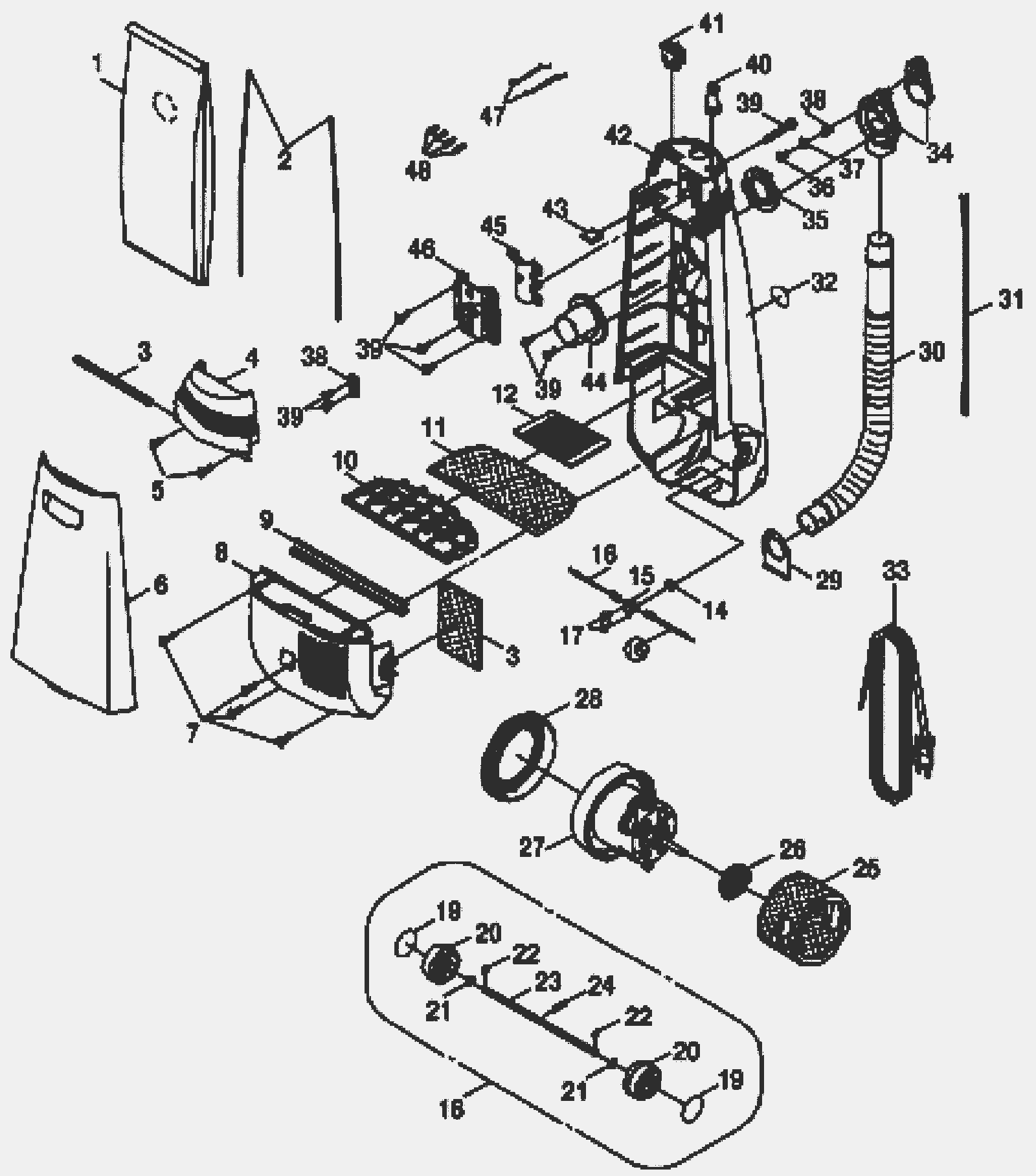

Body Assembly

#PartDescription ReqNotesAvailability
1a 190-9832 Paper bags (pkg of 3) 1
1b 190-9833 Paper bags (pkg of 12) 1
2 190-9834 Dust cover seal 1
3 190-9835 Switch cover seal 1
4 190-9836 Switch cover 1
5 190-9786 Screw 1
6 190-9837 Dust cover 1
7 190-9838 Screw 1
8 190-9839 Motor cover 1
9 190-9840 Motor cover seal 1
10 190-9841 Filter bag support (OBSOLETE) 1
11 190-9842 Secondary filter household 1
12 190-9843 Filter support screen 1
13 190-9844 Motor cover filter 1
14 190-9845 Thermal switch seal 1
15 190-9846 Thermal switch 1
16 190-9847 Thermal lead wire 1
17 190-9848 Set screw 1
18 190-9849 Wheel assembly 1 (includes 19-24)
19 190-9850 Rear wheel decal 1
20 190-9851 Rear wheel 1
21 190-9852 Rear wheel washer 1
22 190-9853 Rear axle clip 1
23 190-9854 Rear wheel axle 1
24 190-9855 Rear axle set screw 1
25 190-9856 Sound suppression foam 1
26 190-9857 Motor mount front 1
27 190-9858 Motor complete 1
28 190-9859 Motor mount rear 1
29 190-9860 Nozzle hose collar 1
30 190-9861 Nozzle hose 1
31 190-9862 Motor cord 1
32 190-9863 Label 1
33 190-9864 30 foot power cord (black) 1
34 190-9865 Suction intel 1
35 190-9866 Suction intel gasket 1
36 190-9867 Suction intel spring 1
37 190-9868 Washer 1
38 190-9869 Suction intel screw 1
39 190-9870 Handle screw 1
40 190-9871 Cord strain relief 1
41 190-9872 On/Off switch 1
42 190-9873 Dust compartment 1
43 190-9874 Air resistant plug 1
44 190-9875 Bag support collar 1
45 190-9876 Handle fitting support 1
46 190-9877 Wire harness 1
47 190-9878 Zip ties 1
48 190-9879 Wire ties 1
