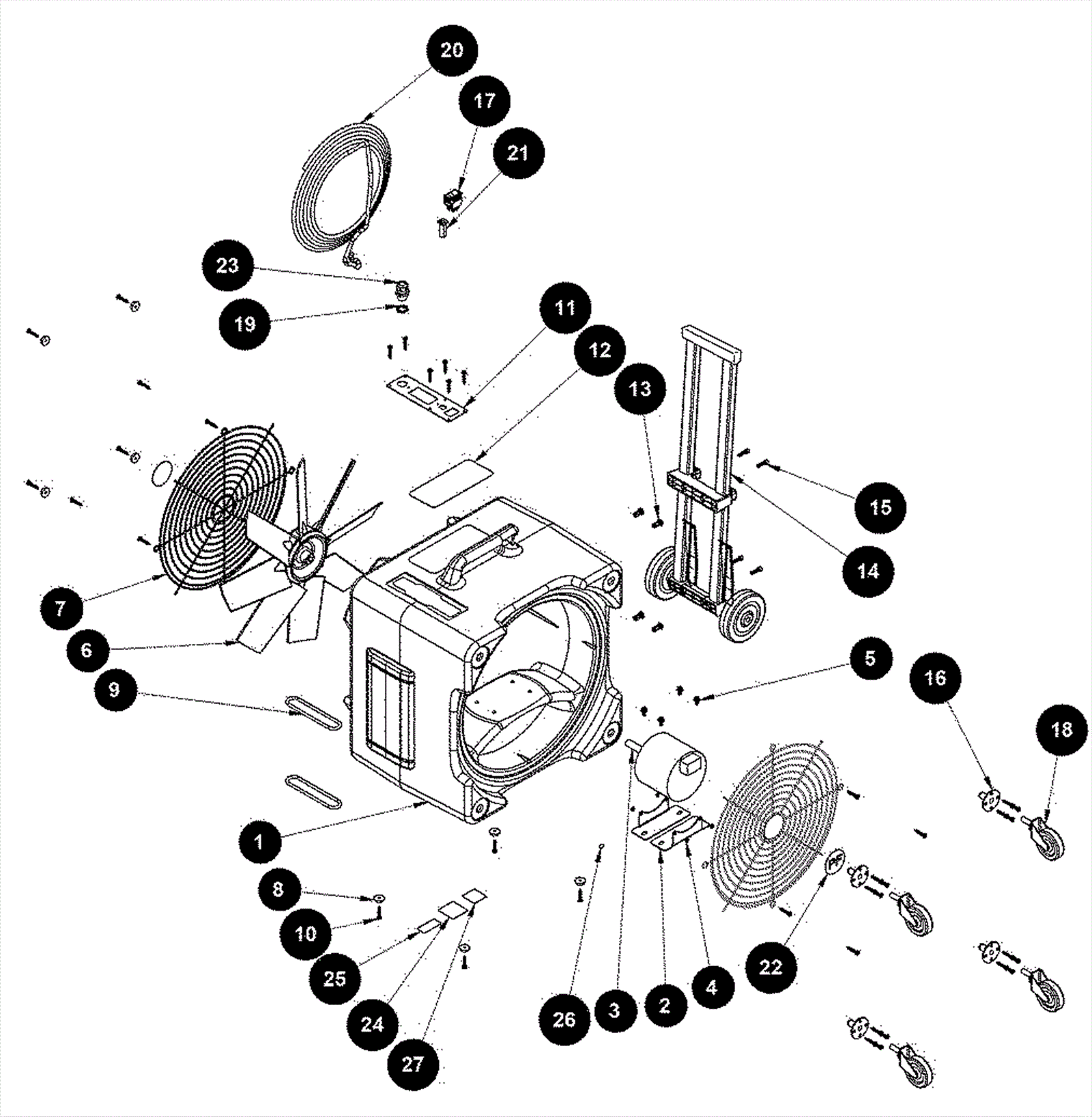

F6 WRD Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-9302 Housing $298.07 usually ships 10-27 days
2 190-9303 Motor bracket $7.69 usually ships 10-27 days
3 183-1090 Motor, Axial fan, Downdraft 11 $207.90 usually ships 8-21 days
4 190-9304 Lock nut $1.30 usually ships 10-27 days
5 190-0419 Screw 1/4-20 x 1/2 serrated hex $1.30 usually ships 10-27 days
6 190-0472 Fan blade $139.69 usually ships 10-27 days
7 190-9305 Grill $19.14 usually ships 10-27 days
8 190-9306 Rubber foot (black) $1.30 usually ships 10-27 days
9 991-0026 Brush roll belt rubber (black) $0.75 ships same day
10 190-0388 Screw $1.30 usually ships 1-5 days
11 190-9307 Switch panel $26.39 usually ships 10-27 days
12 190-9308 Top decal $5.61 usually ships 10-27 days
14 190-9309 Handle and wheel assembly $136.16 usually ships 10-27 days
15 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 ships same day
16 190-9310 Caster receiver $4.07 usually ships 10-27 days
17 183-4606 Switch $8.79 usually ships 8-21 days
18 190-0974 4 inch swivel caster wheel $23.09 usually ships 10-27 days
19 216-0181 Nut 1/2 lock steel conduit $1.25 usually ships 10-27 days
20 183-0563 16/3 power cord 20 foot $64.89 ships same day
21 190-9311 Circuit breaker $14.29 usually ships 10-27 days
22 190-9312 Grill decal $6.75 usually ships 10-27 days
23 216-0173 Strain relief $6.59 usually ships 1-5 days
24 190-0616 Serial number decal $1.30 usually ships 1-5 days
25 190-0896 Warning decal $0.73 usually ships 10-27 days
26 190-9313 Ground symbol decal $1.30 usually ships 10-27 days
27 190-9314 Decal $1.30 usually ships 10-27 days
