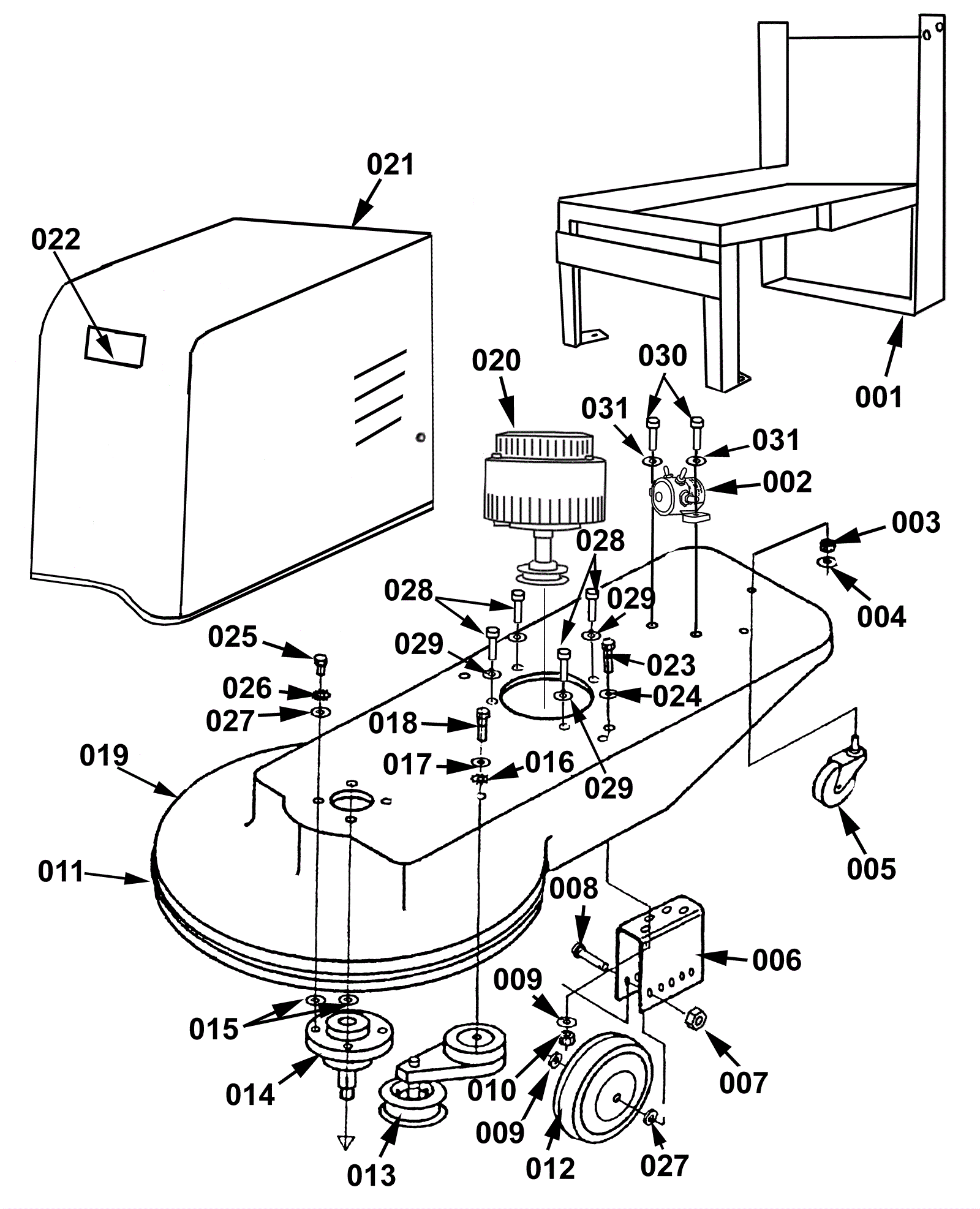

XT-27 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001a 189-8586 Battery tray - metal $57.00 1 XT-21 usually ships 1-5 days
001b 189-8587 Battery platform - plastic $11.00 1 XT-21 usually ships 1-5 days
001c 189-8586 Battery tray - metal $57.00 1 XT-27 usually ships 1-5 days
002a 189-8206 Solenoid (metal) $26.39 1 This is a shiny metal solenoid ships same day
002b 189-1201 Solenoid (black) $50.05 1 This is a black solenoid. ships same day
003 204-0068 Nut $1.98 1 usually ships 1-5 days
004 204-0077 Washer flat $2.16 1 usually ships 1-5 days
005 189-8009 Caster wheel $28.22 2 usually ships 11-24 days
006 189-8534 Adjustable wheel bracket $30.85 2 usually ships 11-24 days
007 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
008 189-8012 Wheel axle and nut $2.54 2 usually ships 1-5 days
009 204-0075 Washer flat $0.90 4 usually ships 1-5 days
010 204-0060 Nut $1.98 2 usually ships 1-5 days
011 189-8203 Edge trim $2.70 11 ft price is per foot usually ships 1-5 days
012 164-1389 6 inch caster wheel with bracket (Vac-Trac) (OBSOLETE) $494.42 2 usually ships 3-26 days
013 204-0017 Small belt tensioner $203.35 1 usually ships 11-24 days
014 204-0015 Pad driver (OBSOLETE) $89.67 1 usually ships 11-24 days
015 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
016 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
017 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
018 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
019a 189-8202 Duracoat deck 21 inch $693.42 1 XT-21 usually ships 1-5 days
019b 189-8531 Duracoat deck 28 inch $868.00 1 XT-27 usually ships 1-5 days
020 189-9009 Brush motor $961.90 1 usually ships 11-24 days
021 N/A Not available Call for price 1 front cover usually ships 3-26 days
022 189-8205 Powerbuff label $3.34 3 usually ships 1-5 days
023 204-0076 Bolt 5/16 x 1 1/4 $2.16 1 usually ships 1-5 days
024 204-0075 Washer flat $0.90 1 usually ships 1-5 days
025 204-0071 Bolt $2.16 1 usually ships 11-24 days
026 204-0070 Washer lock $2.16 1 usually ships 11-24 days
027 204-0069 Washer flat $1.98 2 usually ships 1-5 days
028 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
029 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
030a 999-0375 Screw 1/4-20 x 1 round head slotted zinc plated $0.99 2 ships same day
030b 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
031 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
