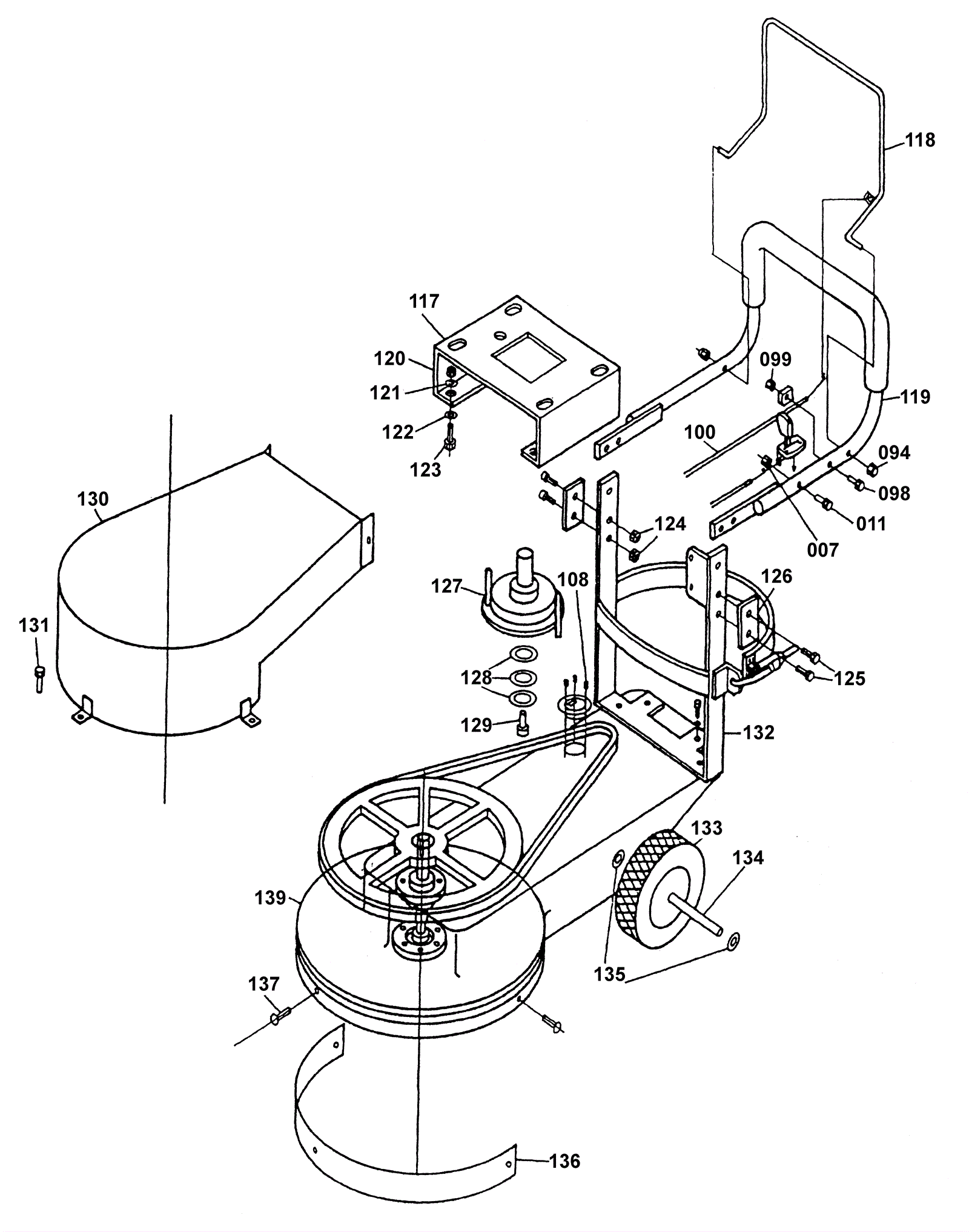

| # | Part | Description |
Req | Notes | Availability |
|---|
007 |
204-0061
|
Nut |
|
|
|
011 |
999-0634
|
Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated |
|
|
|
094 |
204-0063
|
Nut |
|
|
|
098 |
204-0093
|
Bolt |
|
|
|
099 |
204-0061
|
Nut |
|
|
|
100 |
204-0052
|
Cable |
|
|
|
108 |
204-0097
|
Screw |
|
|
|
117 |
204-0019
|
Key Stock |
|
|
|
118 |
189-8049
|
Clutch arm |
|
|
|
119 |
189-2199
|
Upper handle strip |
|
|
|
120 |
204-0060
|
Nut |
|
|
|
121 |
204-0075
|
Washer flat |
|
|
|
122 |
204-0075
|
Washer flat |
|
|
|
123 |
204-0076
|
Bolt 5/16 x 1 1/4 |
|
|
|
124 |
204-0061
|
Nut |
|
|
|
125 |
204-0091
|
Bolt |
|
|
|
126 |
189-2200
|
Handle bracket |
|
|
|
127 |
189-2201
|
Clutch (OBSOLETE) |
|
|
|
128 |
999-1963
|
Washer 1 x 1 1/2 14 gauge zinc |
|
|
|
129 |
189-2203
|
Bolt |
|
|
|
130 |
189-2204
|
Belt shoulder |
|
|
|
131 |
189-2205
|
Bolt |
|
|
|
132 |
189-2206
|
Lower handle strip |
|
|
|
133 |
189-2207
|
Pneumatic wheel |
|
|
|
134 |
189-2208
|
Axle |
|
|
|
135 |
189-2209
|
Lock collars |
|
|
|
136 |
189-2210
|
Splash guard (OBSOLETE) |
|
|
|
137 |
189-2211
|
Bolt (OBSOLETE) |
|
|
|
139 |
189-8064
|
27 inch Deck |
|
|
|
