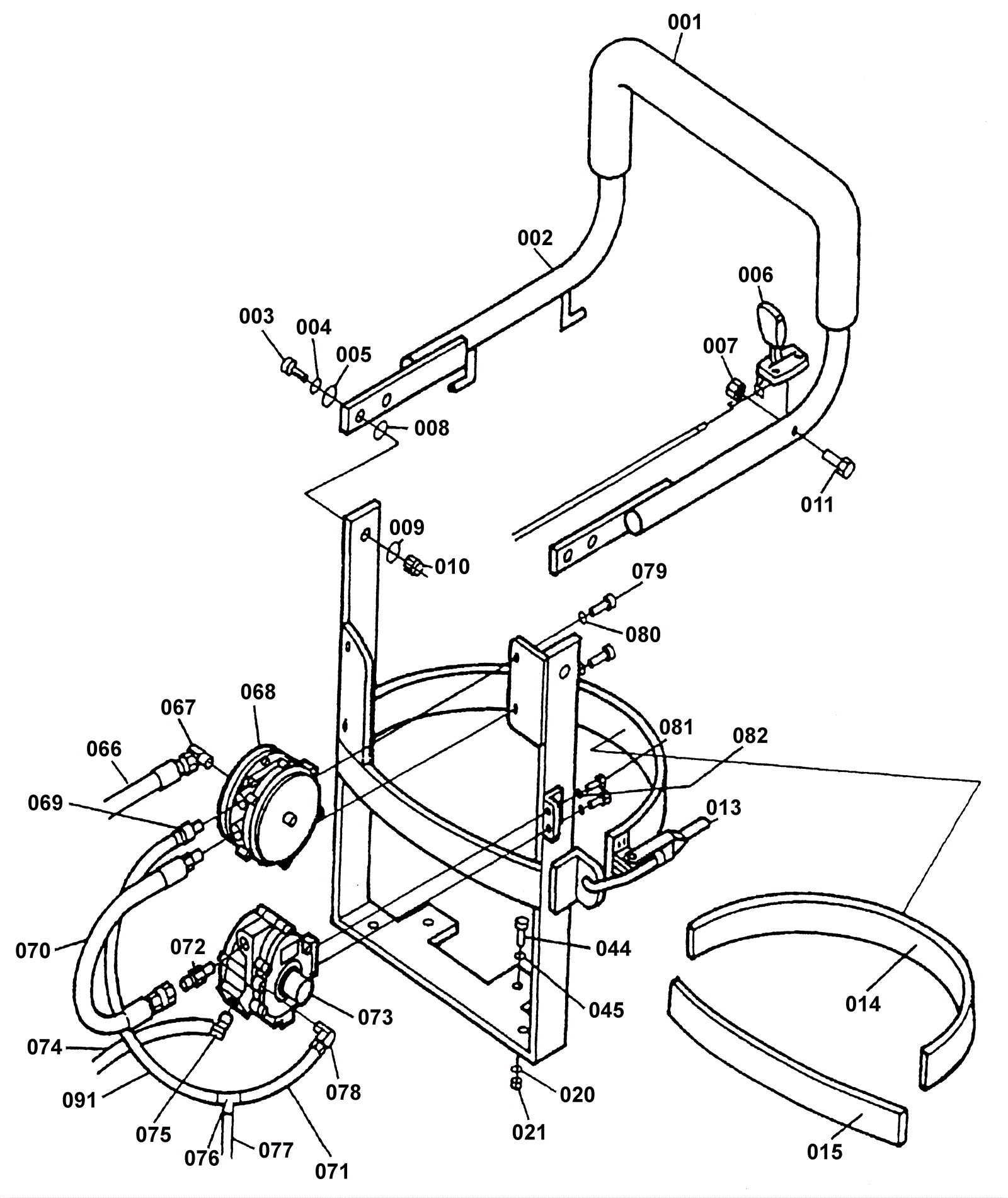

Frame Assembly

#PartDescription ReqNotesAvailability
002 189-8002 Upper handle
003 204-0084 Bolt
004 204-0083 Washer lock
005 999-0114 Washer 1/2 SAE flat
006 204-0005 Throttle cable (OBSOLETE)
007 204-0061 Nut
008 204-0081 Washer lock
009 204-0080 Washer lock
010 999-0118 Nut 1/2-13 nylon insert lock zinc plated
011 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated
013 204-0078 Screw latch
014 189-8005 Felt
015 189-8006 Felt
020 204-0075 Washer flat
021 204-0060 Nut
044 204-0076 Bolt 5/16 x 1 1/4
045 204-0075 Washer flat
066 204-0032 Hose
067 189-8035 Fitting
068 189-2197 Fuel shutoff
069 189-8037 Fitting
070 204-0032 Hose
071 189-8039 Vacuum hose
072 204-0038 fitting
073 991-6001 Fuel regulator (T60)
074 189-8042 Fuel hose
075 204-0041 Fitting
076 189-8044 Vacuum tee
077 189-8045 Vacuum hose
078 189-8046 Fitting
079 204-0089 Bolt
080 204-0090 Washer lock
081 204-0089 Bolt
082 204-0090 Washer lock
091 189-8053 Vacuum hose
