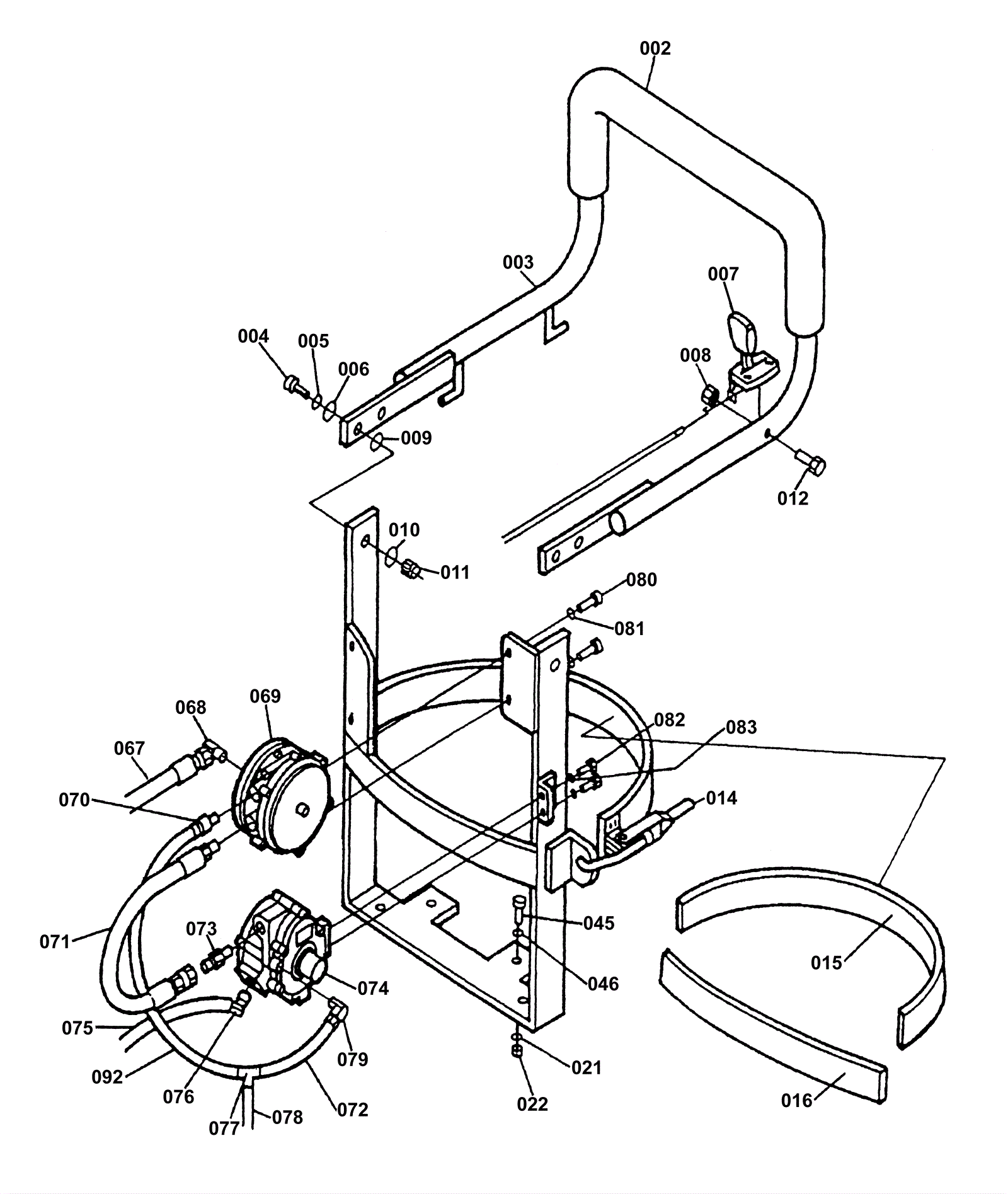

PS24 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
003 189-8002 Upper handle $175.19 usually ships 1-5 days
004 204-0084 Bolt $2.70 usually ships 1-5 days
005 204-0083 Washer lock $0.96 usually ships 1-5 days
006 999-0114 Washer 1/2 SAE flat $0.99 ships same day
007 204-0005 Throttle cable $24.27 usually ships 1-5 days
008 204-0061 Nut $0.96 usually ships 1-5 days
009 204-0081 Washer lock $0.96 usually ships 1-5 days
010 204-0080 Washer lock $2.16 usually ships 1-5 days
011 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 ships same day
012 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 ships same day
014 204-0078 Screw latch $34.67 usually ships 1-5 days
015 189-8005 Felt $3.34 usually ships 1-5 days
016 189-8006 Felt $2.01 usually ships 1-5 days
045 204-0076 Bolt 5/16 x 1 1/4 $2.16 usually ships 1-5 days
046 204-0075 Washer flat $0.90 usually ships 1-5 days
067 204-0032 Hose $43.87 usually ships 11-24 days
068 189-8035 Fitting $7.50 usually ships 1-5 days
069 189-2197 Fuel shutoff Call for price usually ships 1-5 days
070 189-8037 Fitting $3.56 usually ships 1-5 days
071 204-0032 Hose $43.87 usually ships 11-24 days
072 189-8039 Vacuum hose Call for price usually ships 1-5 days
073 204-0038 fitting $2.88 usually ships 1-5 days
074 991-6001 Fuel regulator (T60) $336.48 ships same day
075 189-8042 Fuel hose Call for price usually ships 1-5 days
076 204-0041 Fitting $12.98 usually ships 11-24 days
077 189-8044 Vacuum tee $2.16 usually ships 1-5 days
078 189-8045 Vacuum hose Call for price usually ships 1-5 days
079 189-8046 Fitting $5.25 usually ships 1-5 days
080 204-0089 Bolt $2.16 usually ships 1-5 days
081 204-0090 Washer lock $2.16 usually ships 1-5 days
082 204-0089 Bolt $2.16 usually ships 1-5 days
083 204-0090 Washer lock $2.16 usually ships 1-5 days
092 189-8053 Vacuum hose Call for price usually ships 1-5 days
