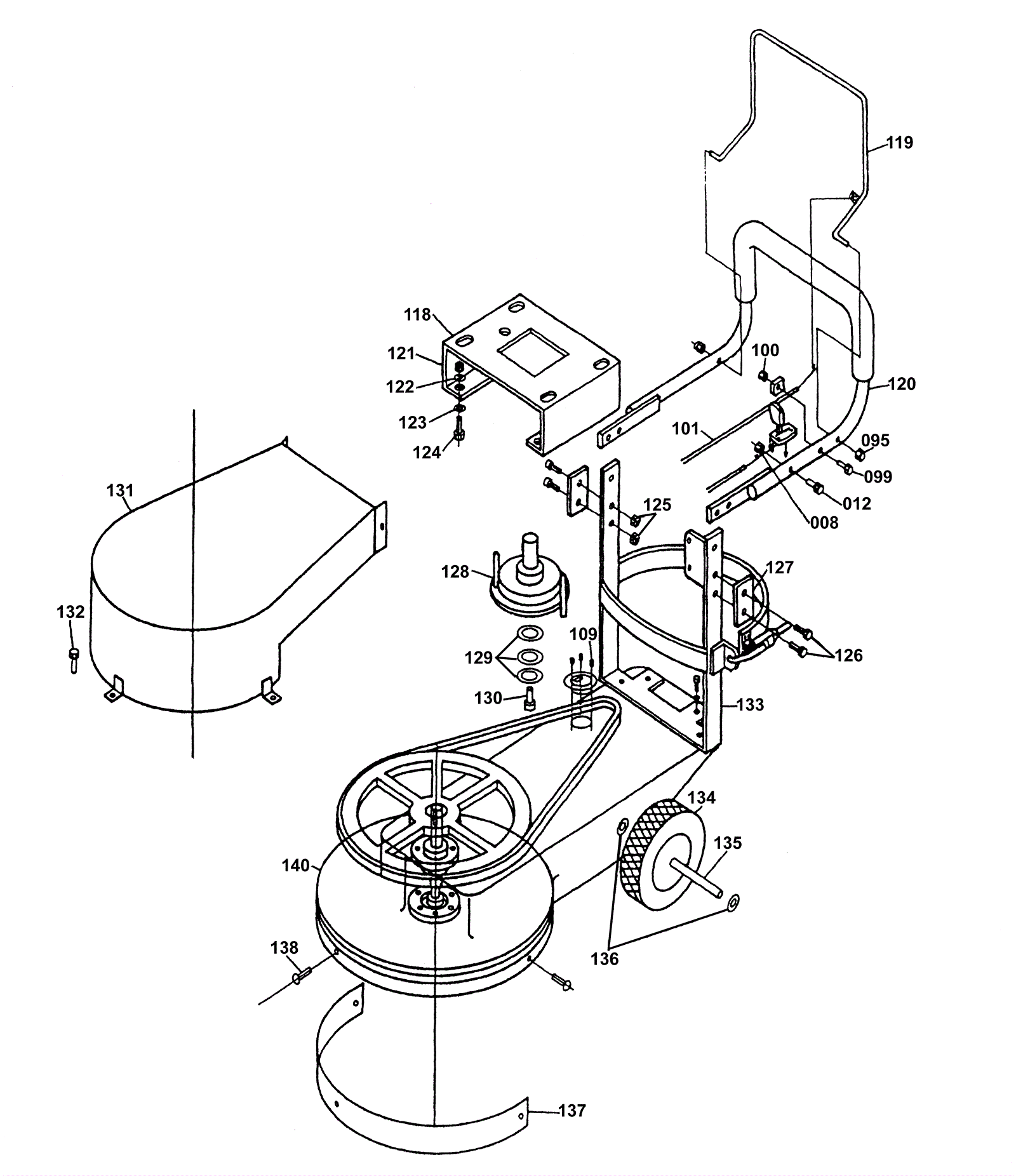

PS24 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
008 204-0061 Nut $0.96 usually ships 1-5 days
012 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 ships same day
095 204-0063 Nut $0.90 usually ships 1-5 days
099 204-0093 Bolt $1.98 usually ships 1-5 days
100 204-0061 Nut $0.96 usually ships 1-5 days
101 204-0052 Cable $15.02 usually ships 1-5 days
118 204-0019 Key Stock $5.00 usually ships 1-5 days
119 189-8049 Clutch arm Call for price usually ships 1-5 days
120 189-2199 Upper handle strip Call for price usually ships 1-5 days
121 204-0060 Nut $1.98 usually ships 1-5 days
122 204-0075 Washer flat $0.90 usually ships 1-5 days
123 204-0075 Washer flat $0.90 usually ships 1-5 days
124 204-0076 Bolt 5/16 x 1 1/4 $2.16 usually ships 1-5 days
125 204-0061 Nut $0.96 usually ships 1-5 days
126 204-0091 Bolt $2.16 usually ships 1-5 days
127 189-2200 Handle bracket Call for price usually ships 1-5 days
128 189-2201 Clutch $699.81 usually ships 1-5 days
129 999-1963 Washer 1 x 1 1/2 14 gauge zinc $1.98 ships same day
130 189-2203 Bolt $2.16 usually ships 1-5 days
131 189-2204 Belt shoulder $90.38 usually ships 1-5 days
132 189-2205 Bolt Call for price usually ships 1-5 days
133 189-2206 Lower handle strip Call for price usually ships 1-5 days
134 189-2207 Pneumatic wheel $100.03 usually ships 1-5 days
135 189-2208 Axle Call for price usually ships 1-5 days
136 189-2209 Lock collars $5.36 usually ships 1-5 days
137 189-2210 Splash guard (OBSOLETE) $62.98 usually ships 11-24 days
138 189-2211 Bolt (OBSOLETE) Call for price usually ships 1-5 days
140 189-2212 Deck $1,165.30 usually ships 1-5 days
