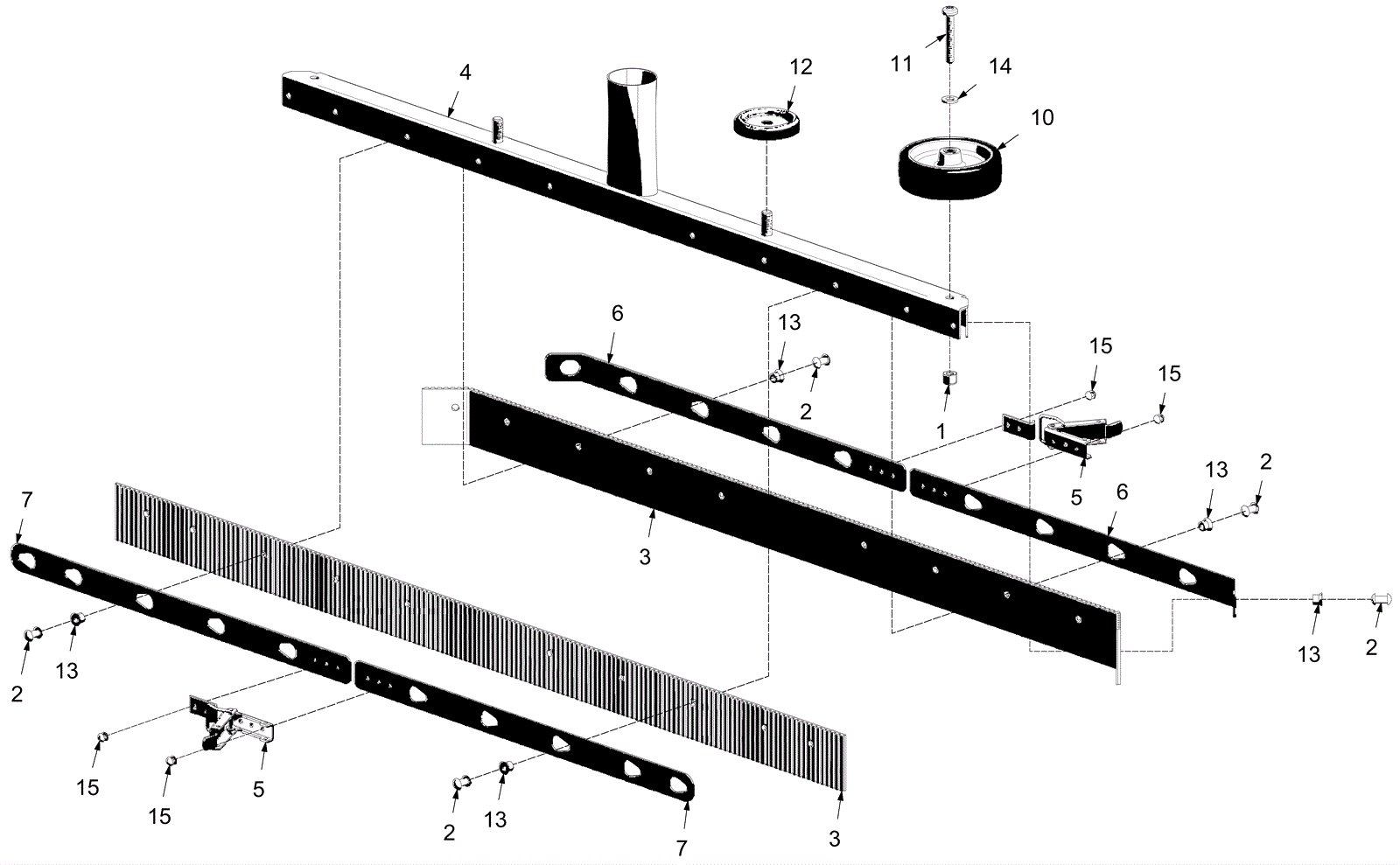

WORKMAN 20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
2 N/A Not available Call for price 20 (Rivet) usually ships 3-26 days
3 189-8606 Squeegee blade (pkg of 2) $85.99 1 ships same day
4 189-8776 Squeegee weldment $198.33 1 usually ships 11-24 days
5 189-8775 Latch kit without rivets $7.12 2 usually ships 11-24 days
6 189-8773 Rear squeegee band $35.53 2 usually ships 11-24 days
7 189-8774 Front squeegee band $93.14 2 usually ships 1-5 days
10 189-0005 Guide wheel $6.24 2 usually ships 11-24 days
11 189-0010 Bolt $6.60 2 usually ships 1-5 days
12 189-8777 Squeegee knob $10.23 2 usually ships 11-24 days
13 N/A Not available Call for price 20 (Rivet) usually ships 3-26 days
14 N/A Not available Call for price 2 (Washer) usually ships 3-26 days
15 N/A Not available Call for price 8 (Rivet) usually ships 3-26 days
N/S 189-8737 Squeegee assembly $474.96 1 (inclues 1-7 and 10-15) usually ships 11-24 days
