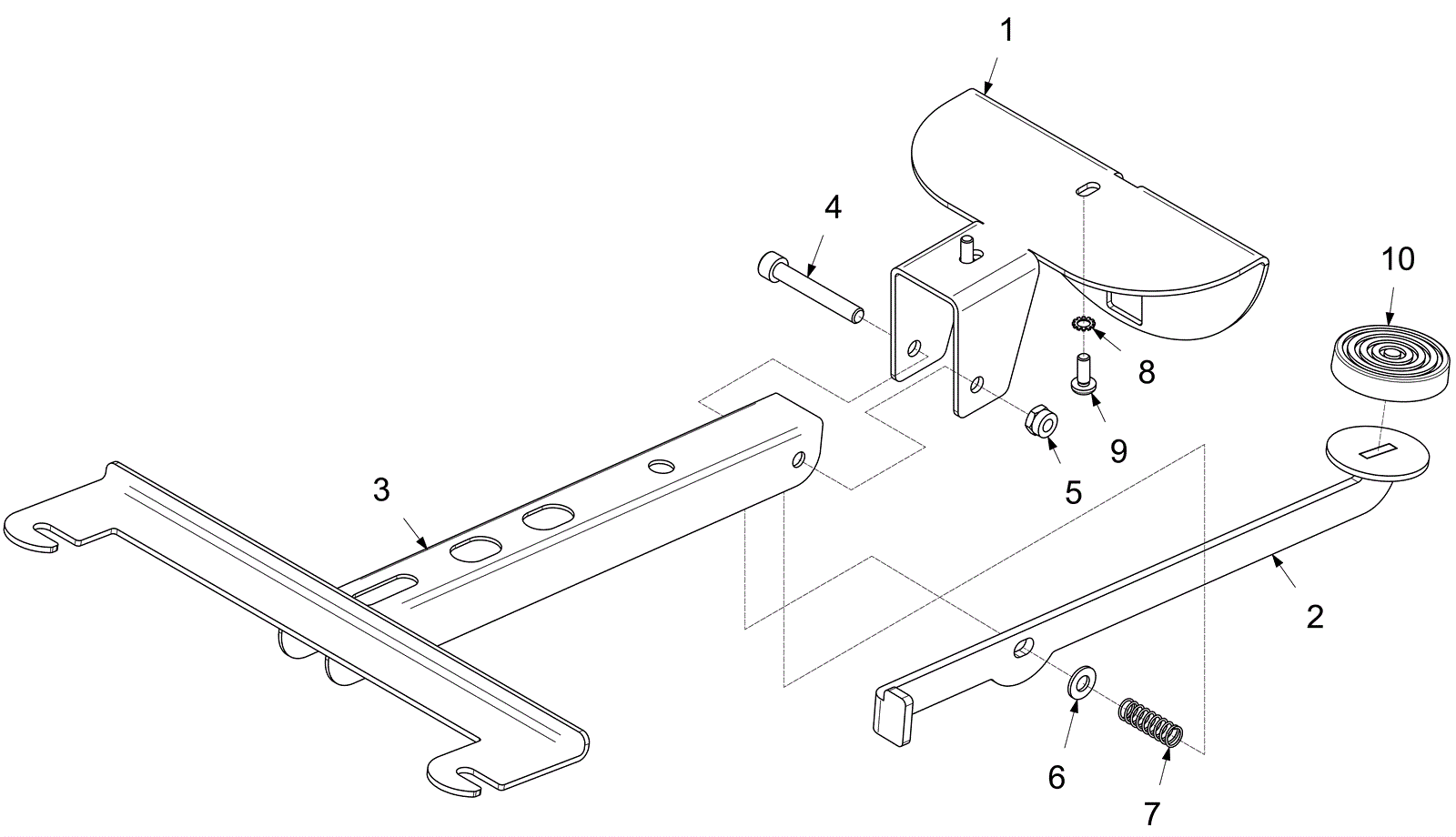

WORKMAN 20 Squeegee Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8768 Front mount squeegee plate $71.75 1 usually ships 1-5 days
2 189-8769 Squeegee lift pedal $74.93 1 usually ships 1-5 days
3 189-8770 Lifting bracket $78.52 1 usually ships 1-5 days
4 189-7594 Bolt $6.51 1 usually ships 1-5 days
5 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
6 189-7595 Washer $5.50 1 usually ships 1-5 days
7 189-7597 Spring $2.38 1 usually ships 14-27 days
8 154-9348 Lock washer $3.45 2 usually ships 12-17 days
9 189-8772 Screw M6-1 x 16mm $2.38 2 usually ships 1-5 days
10 206-0545 Pedal cover (OBSOLETE) Call for price 1 usually ships 1-5 days
