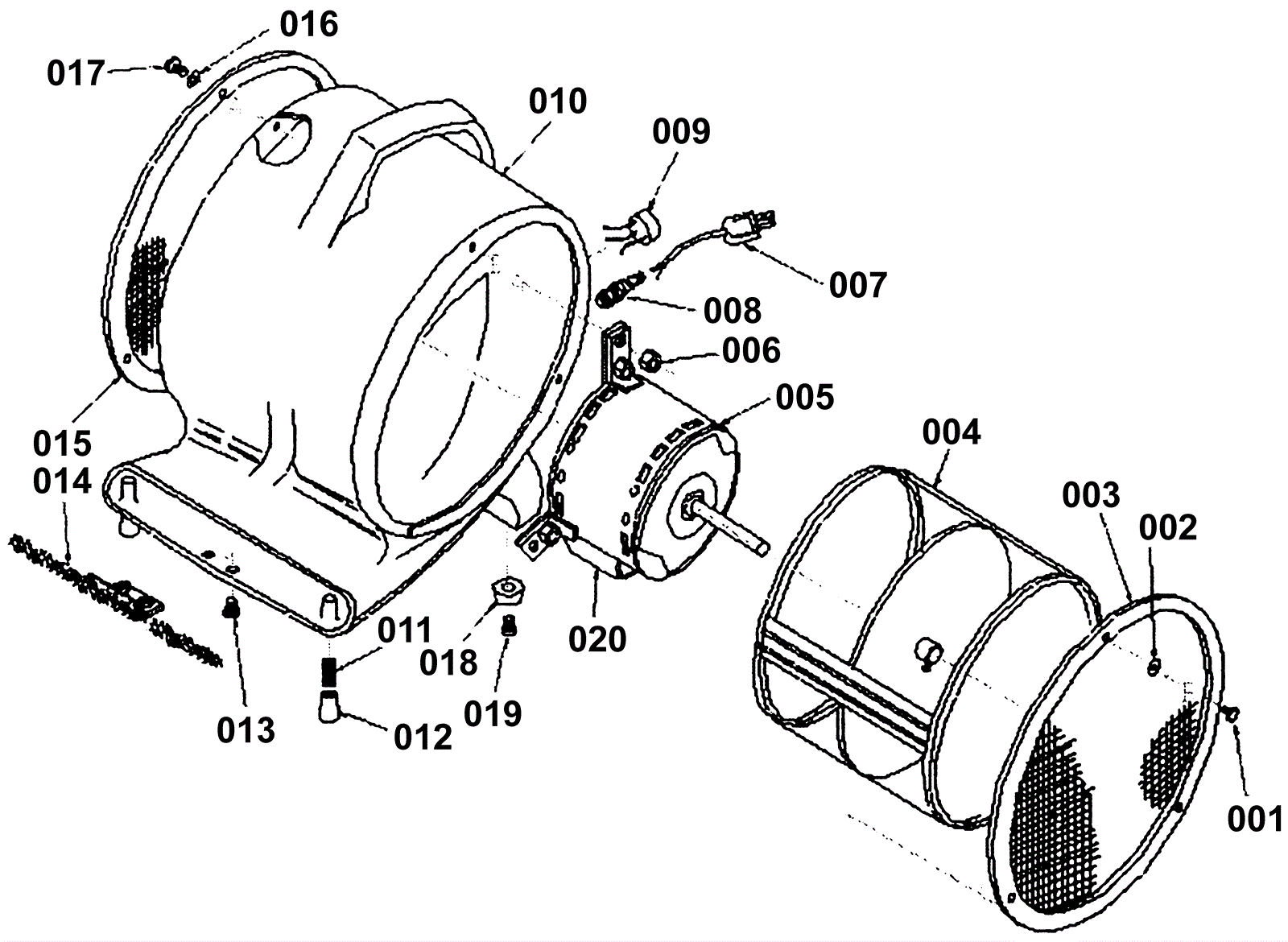

Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1339 Screw 8 3/4 phillips head Call for price usually ships 1-5 days
002 999-0412 Washer #8 SAE flat $0.99 ships same day
003 189-7500 3 hole side screen fan side $15.55 usually ships 1-5 days
004 189-7501 Squirrel cage fan $101.34 usually ships 1-5 days
005 189-7502 115 volt motor $210.98 usually ships 1-5 days
006 999-0190 Nut 1/4-20 hex plain finish $0.99 ships same day
007 189-7503 18/3 30 ft power cable $37.79 usually ships 1-5 days
008 189-7504 Cord restraint $5.50 usually ships 1-5 days
009 189-7505 3 postion rotary switch $59.15 usually ships 1-5 days
010 189-7506 Plastic body housing $164.55 usually ships 1-5 days
012 189-7508 Rubber tip for adjustable rod $4.71 usually ships 1-5 days
013 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 ships same day
014 189-7509 Cat guard front screen $6.88 usually ships 1-5 days
015 189-7510 Motor side 3 hole side screen $4.40 usually ships 1-5 days
016 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
017 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 ships same day
018 189-7511 Rubber foot $2.83 usually ships 1-5 days
019 189-1340 Screw 8 x 1/2 Call for price usually ships 1-5 days
020 189-7512 Capacitor $44.07 usually ships 1-5 days
021 189-7513 Cord wrap bracket $10.89 usually ships 1-5 days
022 189-1341 Washer 8 black nylon Call for price usually ships 1-5 days
023 189-1342 Screw 8 phillips oval head black oxide Call for price usually ships 1-5 days
